Lamp Assembly - Map

LAMP ASSEMBLY - MAP

Removal

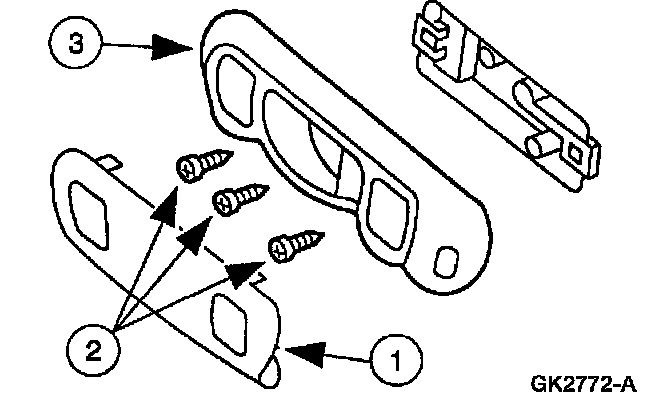

1. Remove the map lamp assembly.
1 Carefully release the lamp lens.

2 NOTE: Identify the location of each screw to aid in the installation of the map lamp assembly.

Remove interior lamp screws.

3 Remove the map lamp assembly.

Installation
1. To install, reverse the removal procedure.
