Bulb - Map Lamp

BULB - MAP LAMP

Removal
1. Remove the map lamp assembly.

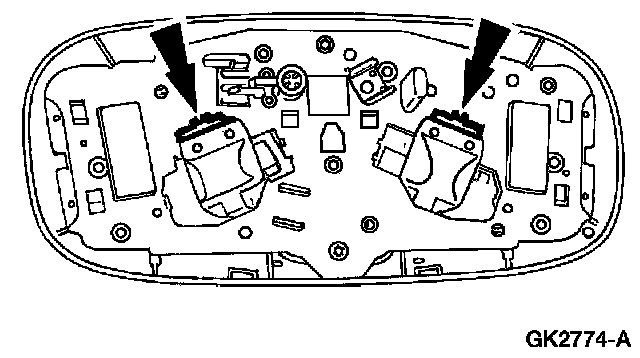

2. Release the clip on the bulb(s) to be replaced.







3. Remove the map lamp bulb.

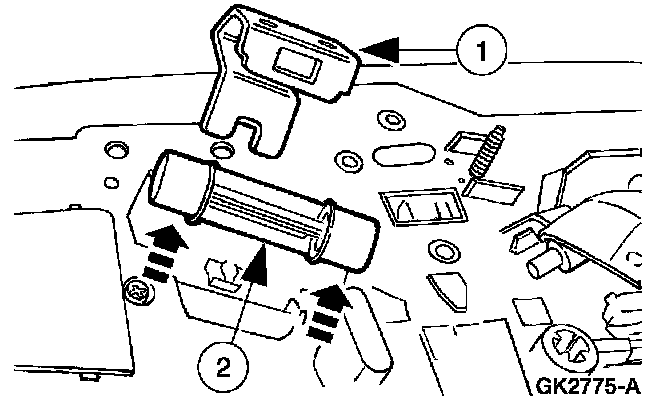

1 Remove the map lamp reflector.
2 Remove the map lamp bulb from the clips.

Installation
1. To install, reverse the removal procedure.
