Ambient Light Sensor: Service and Repair

PHOTOCELL AND AMPLIFIER

Removal and Installation

All vehicles
1. Disconnect the battery ground cable.

Expedition

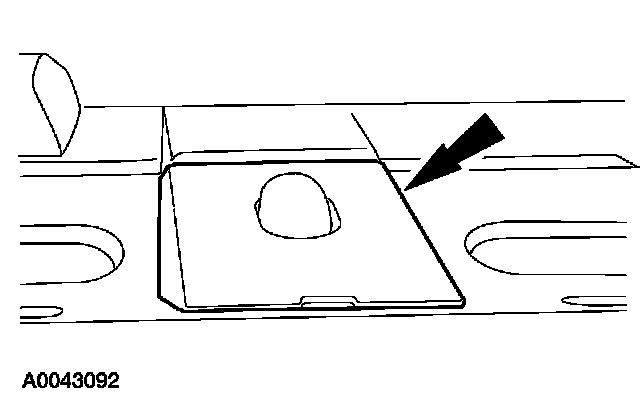

2. Remove the photocell and bezel from the defroster grille.
- Disconnect the electrical connector.

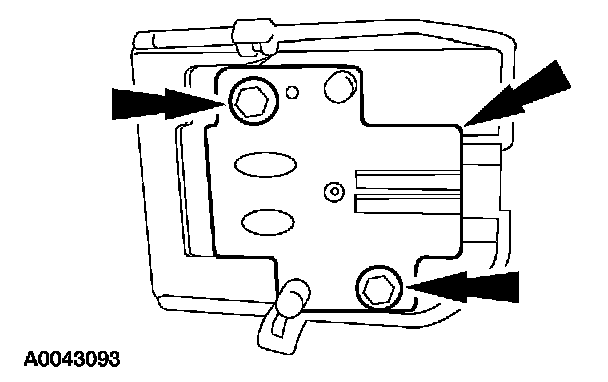

3. Remove the screws and the photocell and amplifier.

Navigator

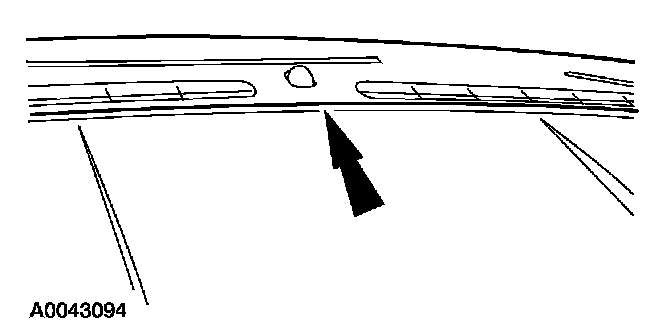

4. Remove the defroster grille.







5. Remove the screws and the photocell.
- Disconnect the electrical connector.

All vehicles
6. To install, reverse the removal procedure.
