Receiver Dryer: Service and Repair

RECEIVER DRIER

Removal and Installation

NOTE: Installation of a new receiver/drier is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier.

All vehicles
1. Recover the refrigerant.

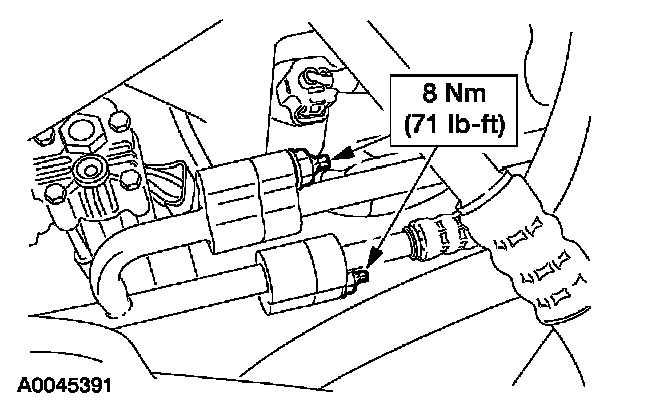

2. Disconnect the A/C fitting.
- Discard the O-ring seal.

Vehicles without auxiliary A/C

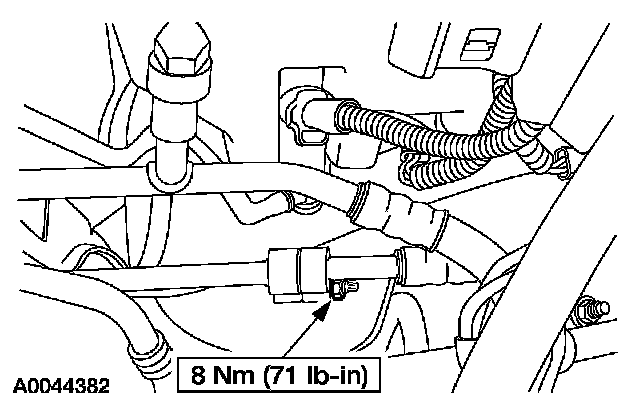

3. Disconnect the A/C fitting.
- Discard the O-ring seal.

Vehicles with auxiliary A/C

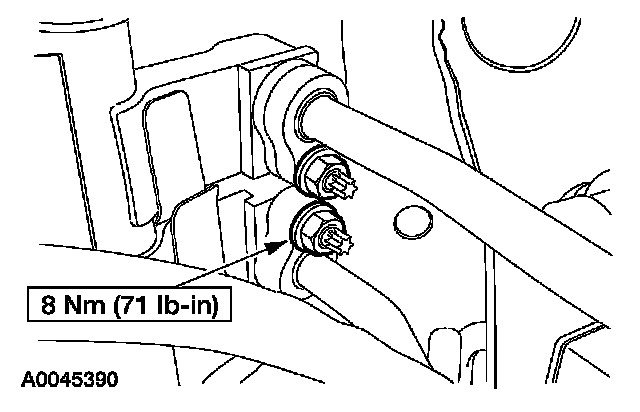

4. Remove the nuts and disconnect the A/C fittings.
- Discard the O-ring seal.

All vehicles







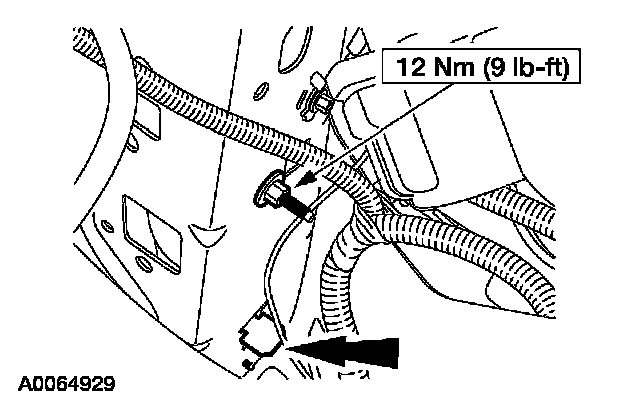

5. Remove the nut, detach the bracket and remove the receiver/drier.
6. To install, reverse the removal procedure.
- Install new O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

7. Evacuate, leak test and charge the refrigerant system.
