Auxiliary Climate Control

BLOWER MOTOR

Removal and Installation
1. Remove the RH quarter trim panel. Refer to: Body and Frame, Interior Moulding/Trim, Trim Panel, Service and Repair, Service and Repair

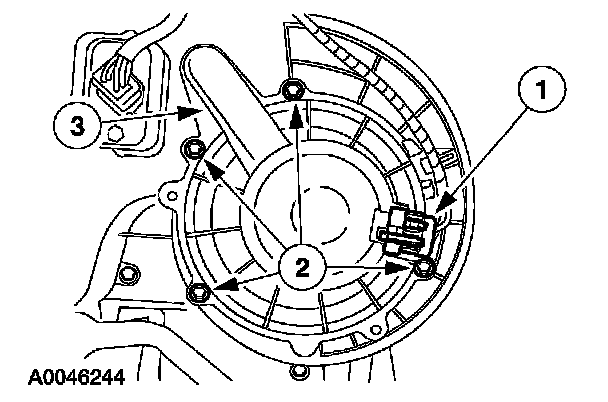

2. Remove the blower motor.
1 Disconnect the blower motor electrical connector.
2 Remove the screws.
3 Remove the blower motor.

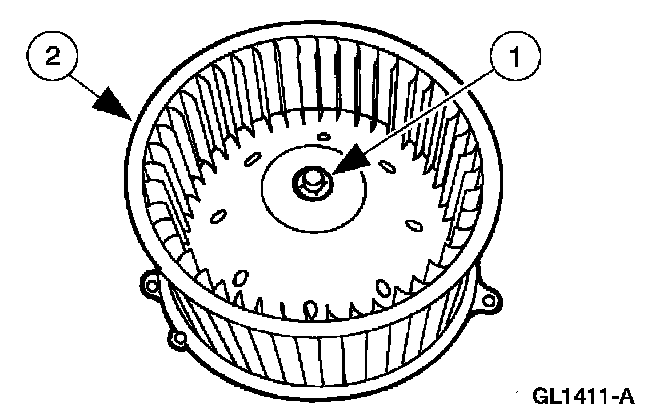

3. Remove the wheel from the blower motor.
1 Remove the push clip.
2 Remove the wheel.

4. To install, reverse the removal procedure.
