Blower Motor Switch

BLOWER MOTOR SWITCH

Removal and Installation
1. Remove the climate control assembly.
2. Pull and remove the blower motor switch knob.

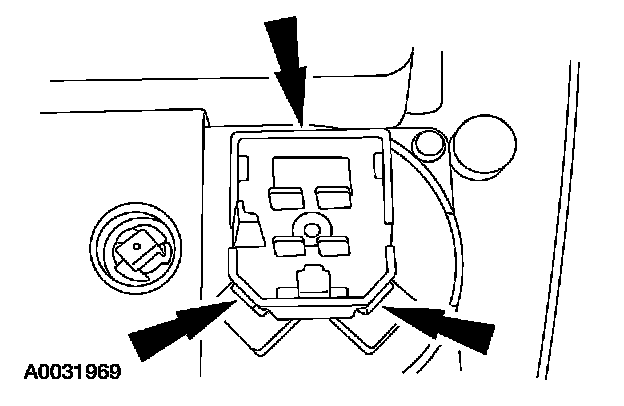

3. Release the clips and remove the blower motor switch.
4. To install, reverse the removal procedure.
