Blower Motor Resistor: Service and Repair
BLOWER MOTOR RESISTORRemoval and Installation

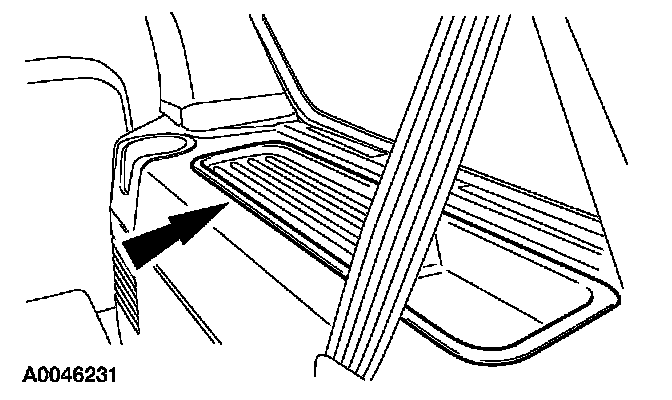

1. Remove the RH quarter trim panel access panel.

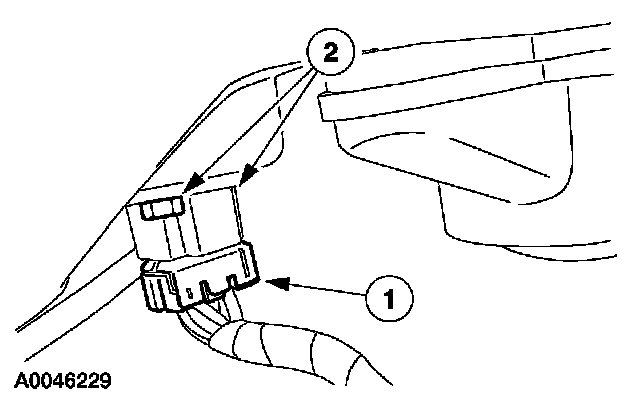

2. Remove the blower motor resistor.
1 Disconnect the blower motor resistor electrical connector.
2 Remove the screws and the blower motor resistor.
3. To install, reverse the removal procedure.
