Home
>>
Lincoln Truck
>>
2005
>>
Navigator 2WD V8-5.4L SOHC VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Timing Components
Timing Components

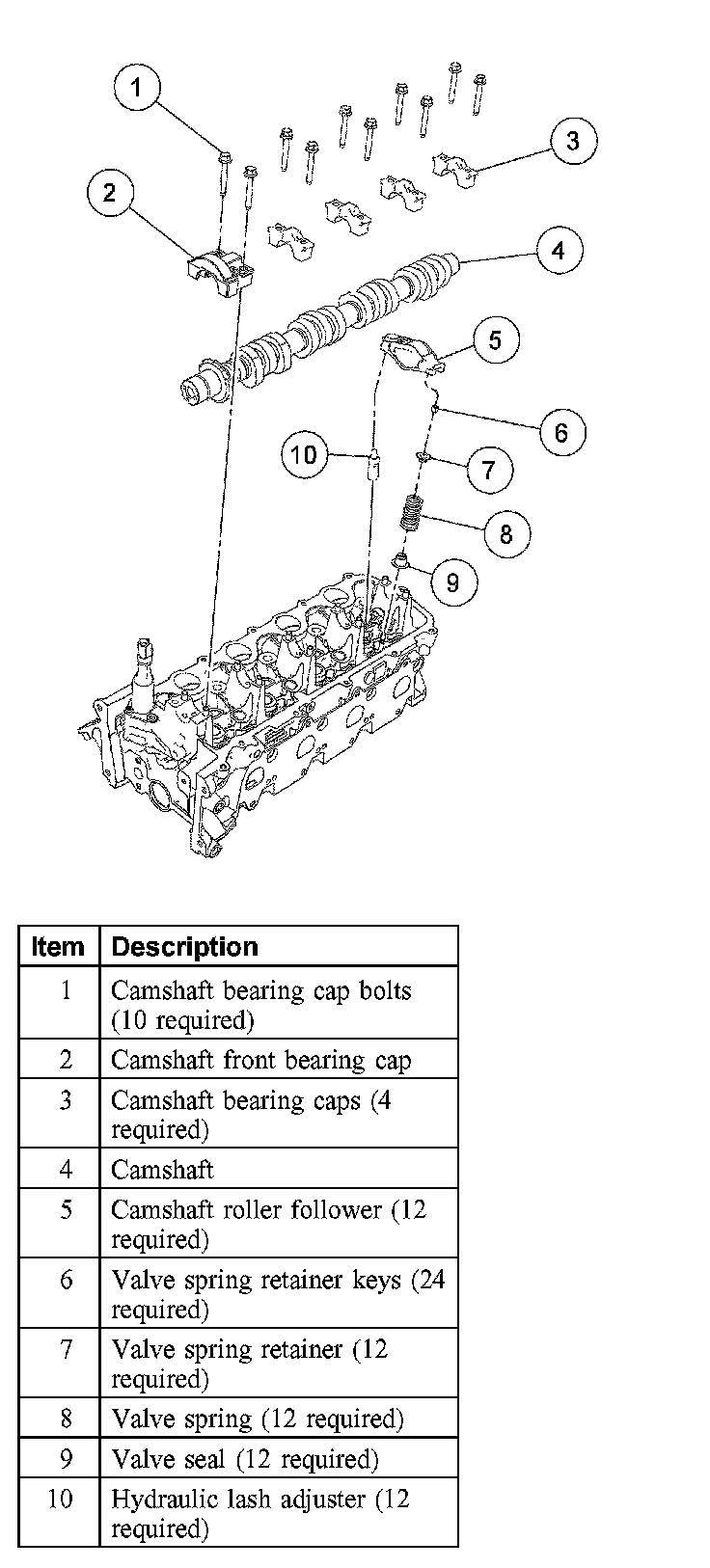

Valve Train Components-Exploded View
LH shown, RH similar
