Brake Caliper Anchor Plate

Brake Caliper Anchor Plate





Removal and Installation
1. Remove the brake pads.

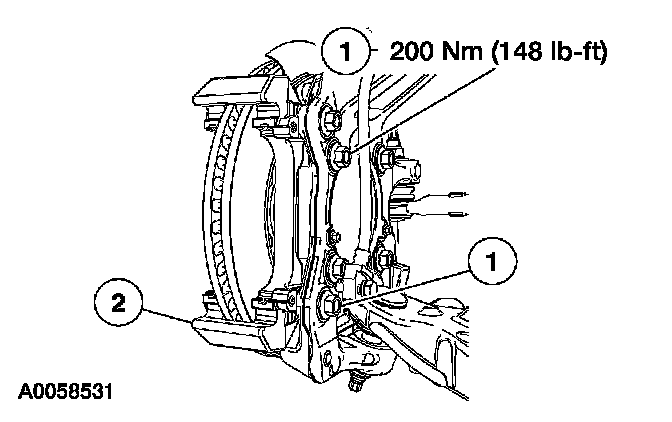

2. Remove the brake caliper anchor plate.
1. Remove the brake caliper anchor plate bolts.
2. Remove the brake caliper anchor plate.
3. To install, reverse the removal procedure.
