Lateral Accelerometer: Service and Repair

Stability Control Sensor Cluster

Removal and Installation

NOTE: The lateral and longitudinal accelerometer and the roll rate sensor are located within the yaw rate sensor, stability control sensor cluster.

1. Remove the front floor console.

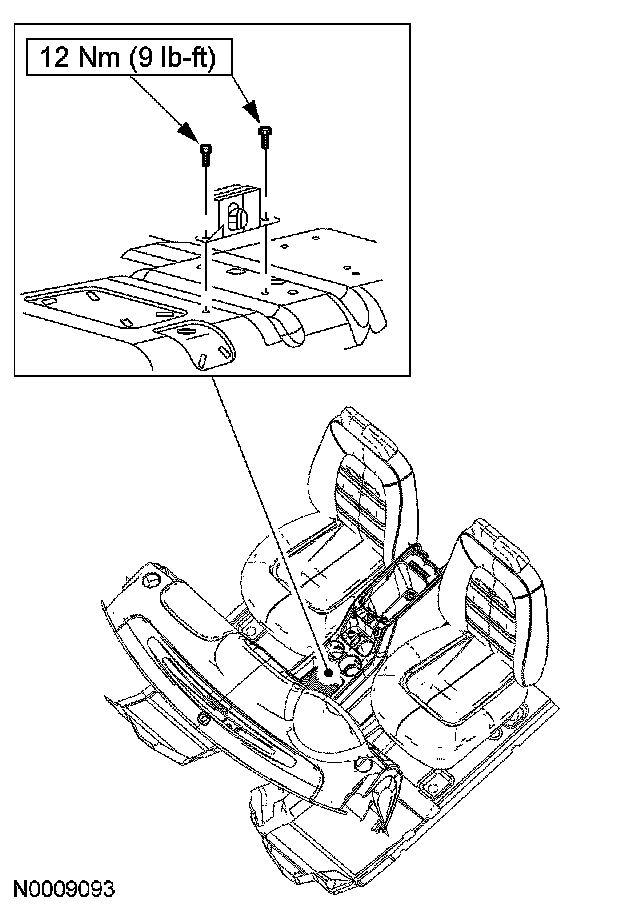

2. Remove the 2 bolts and the stability control sensor cluster.
^ Disconnect the electrical connector.
3. To install, reverse the removal procedure.
