Seat Track - Power

SEAT TRACK - POWER

Removal

WARNING:
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

Inboard and outboard seat tracks
1. Remove the 40 percent seat and depower the SRS.

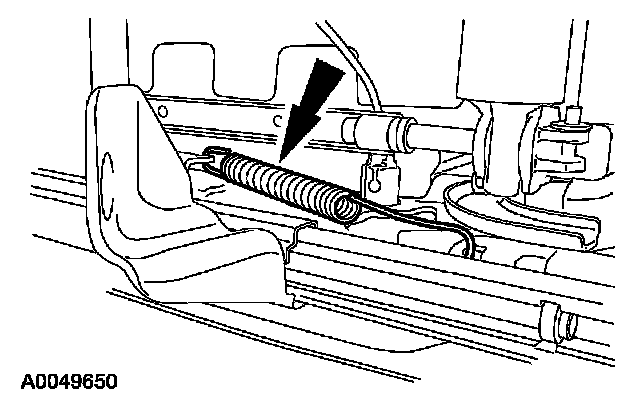

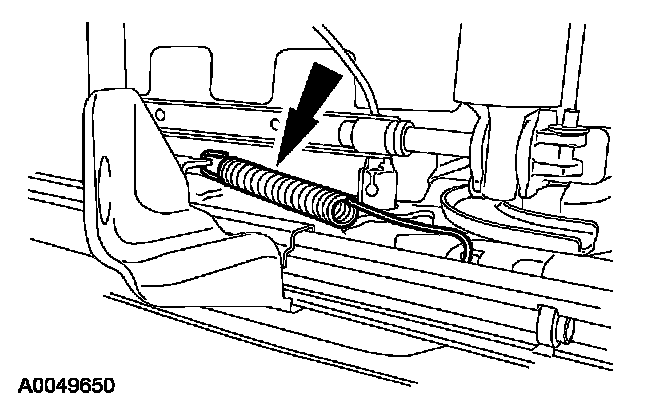

2. Remove the spring.

Driver seat







3. CAUTION: Make sure to remove all metal chips from seat position sensor and surrounding areas after drilling out rivet.

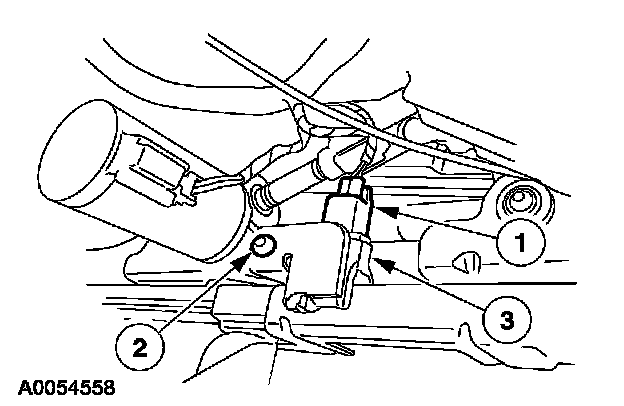

Remove the seat position sensor.
1 Disconnect the seat position sensor electrical connector.
2 Drill out rivet.
3 Remove the seat position sensor.

Inboard seat track

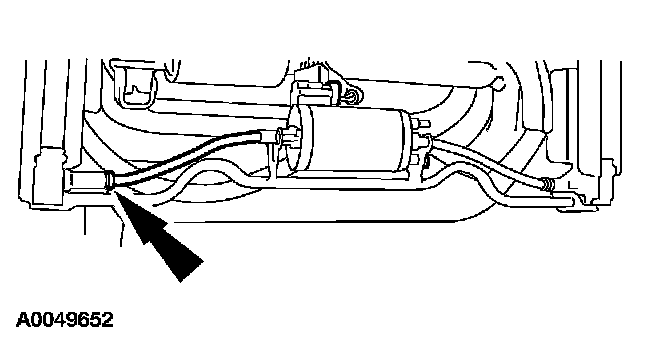

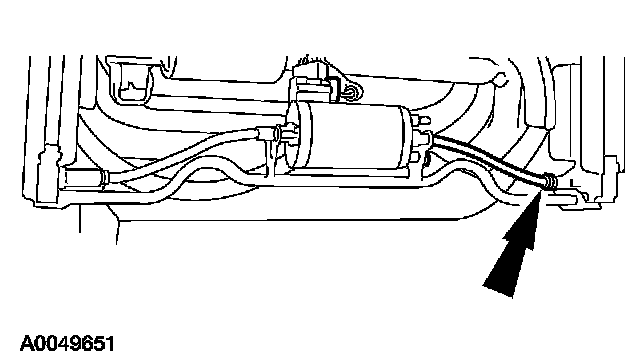

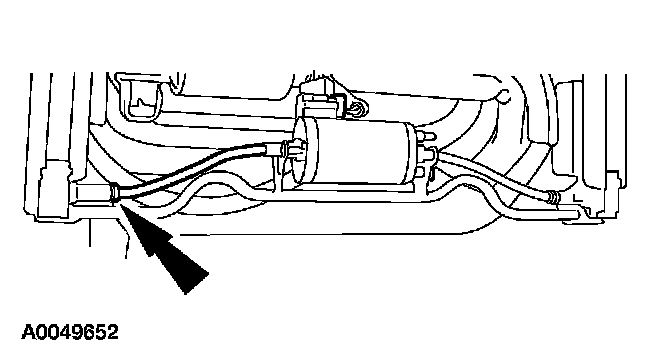

4. Pull to remove the inboard forward/reverse motor drive cable from inboard seat track.

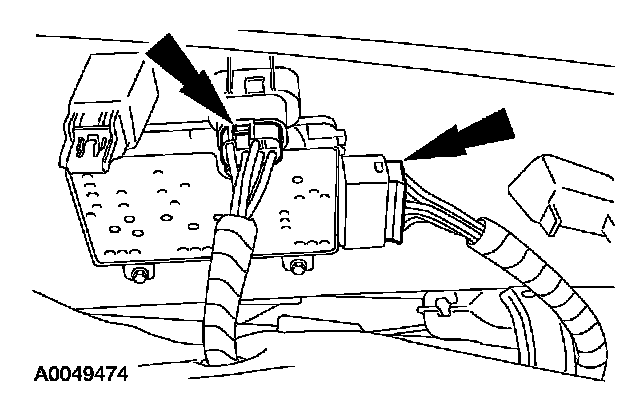

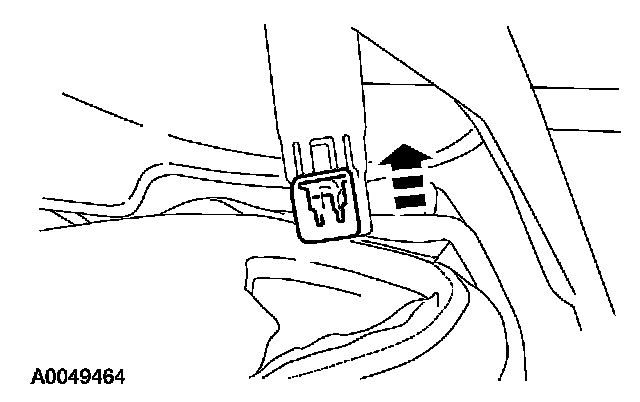

5. Disconnect the safety belt buckle pretensioner and usage detection electrical connectors.

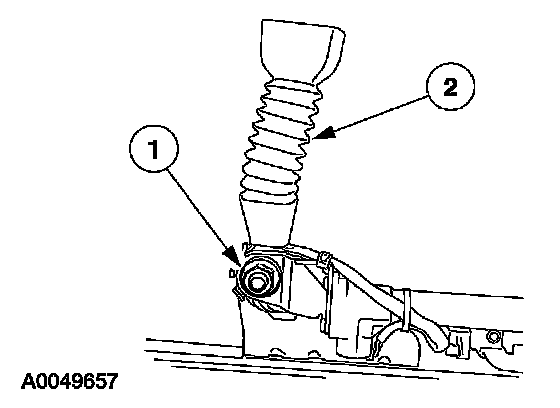

6. Remove the safety belt buckle pretensioner.
1 Remove the nut.
2 Remove the safety belt buckle pretensioner.

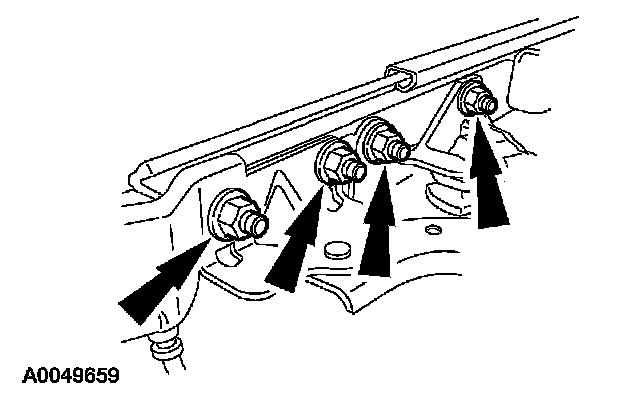

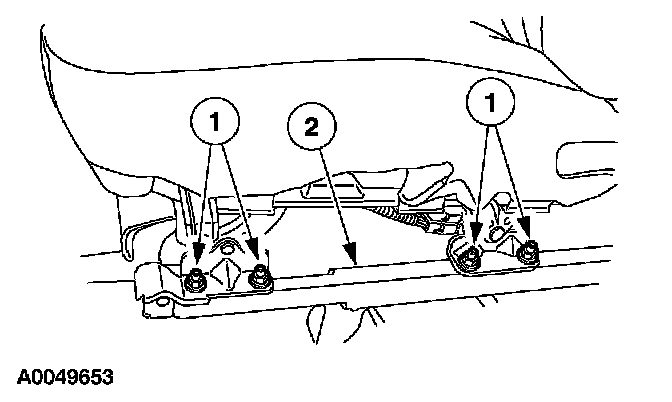

7. Remove the four inboard seat track nuts.

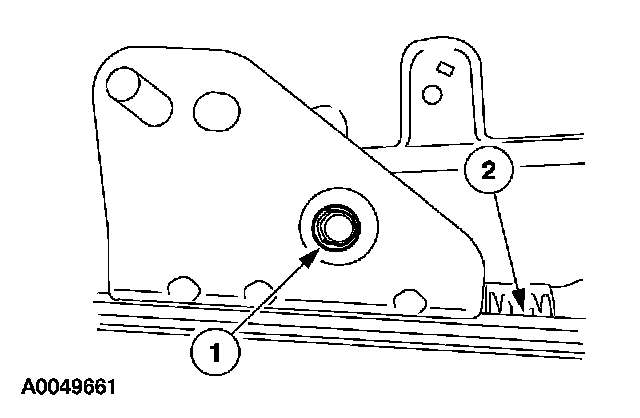

8. Remove the rear inboard seat track and bracket.
1 Remove the bolt.
2 Remove the seat track and bracket.
- Remove the two remaining nuts (not shown) that hold the bracket to seat track.

Outboard seat track

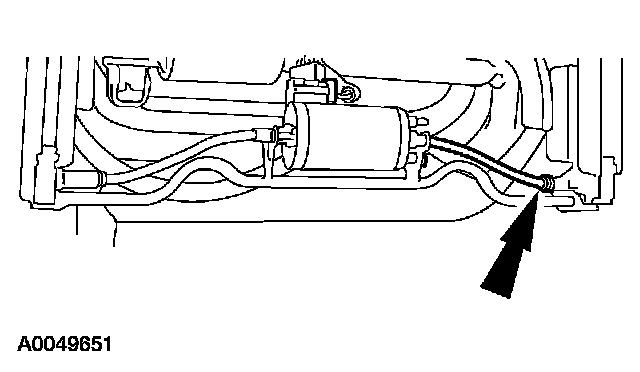

9. Pull to remove the outboard forward/reverse motor drive cable from outboard seat track

Vehicles with 6-way power seat

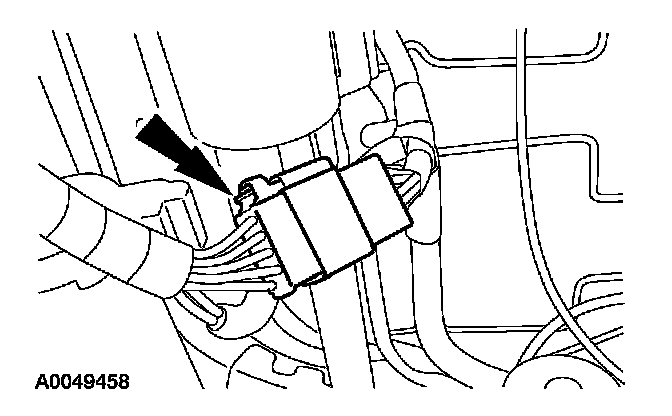

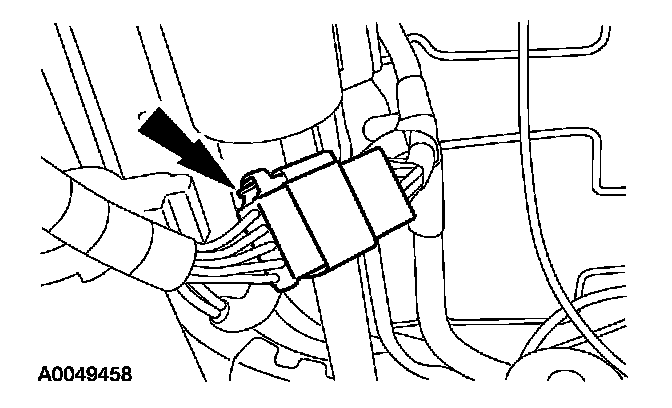

10. Disconnect the 6-way power seat switch electrical connector.

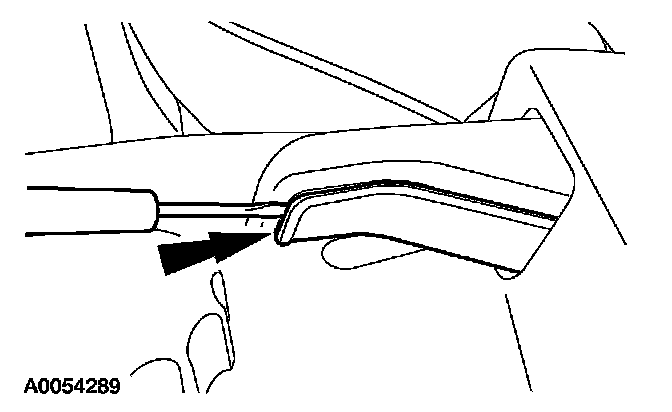

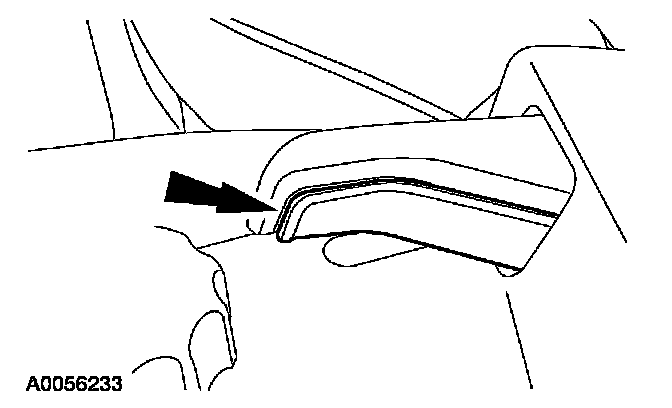

11. Remove recliner handle cover.

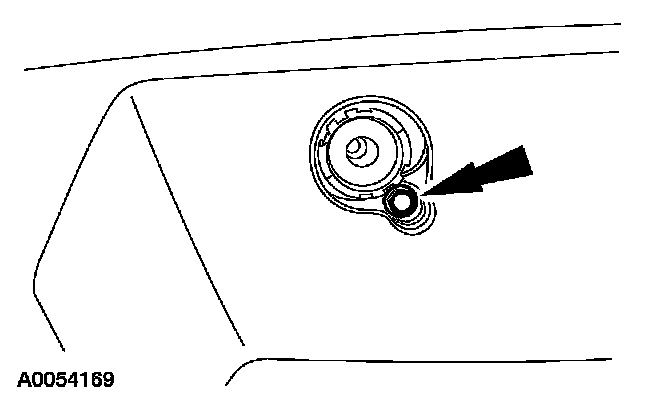

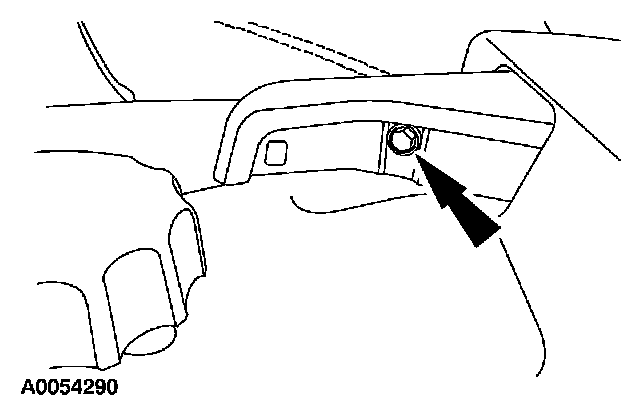

12. Remove the recliner handle screw and remove handle.

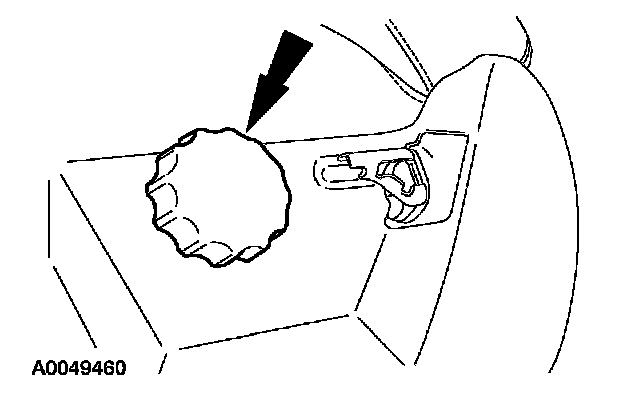

13. CAUTION: Use care when removing the lumbar knob. Using both hands, pull with even pressure on both sides of the knob to remove.

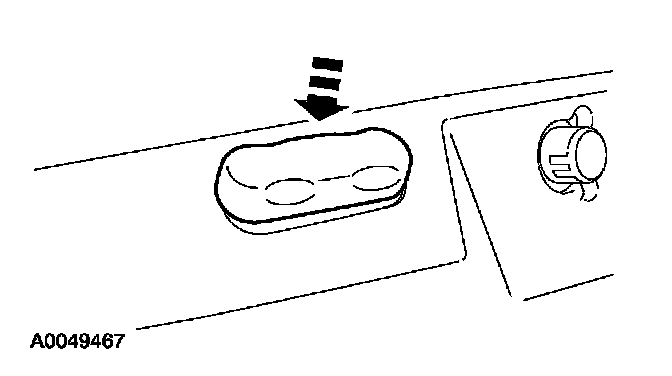

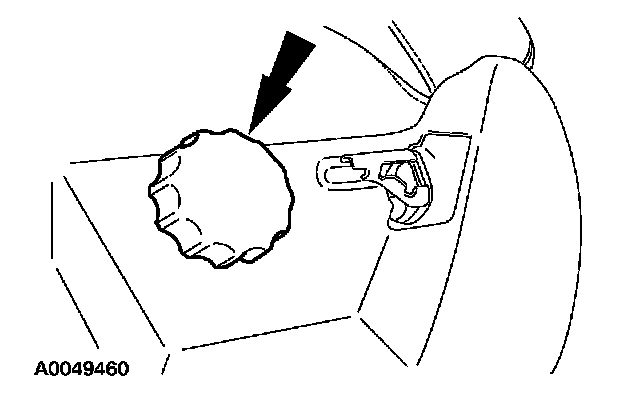

Remove the lumbar knob.







14. Remove the screw from side shield under the lumbar knob.

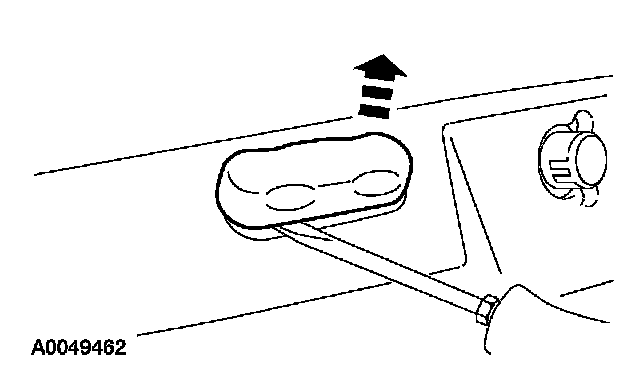

15. CAUTION: Use care not to scratch the side shield when removing the power seat knob.

Pry the power seat knob off.

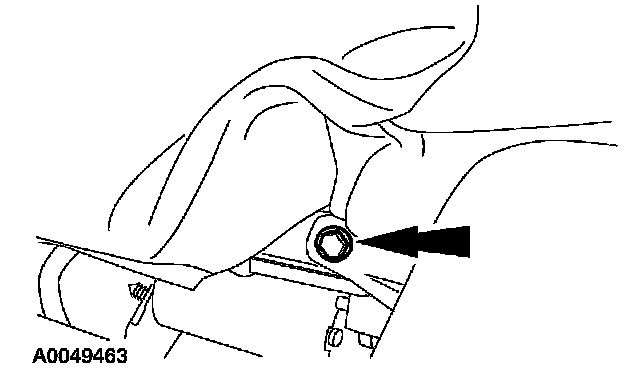

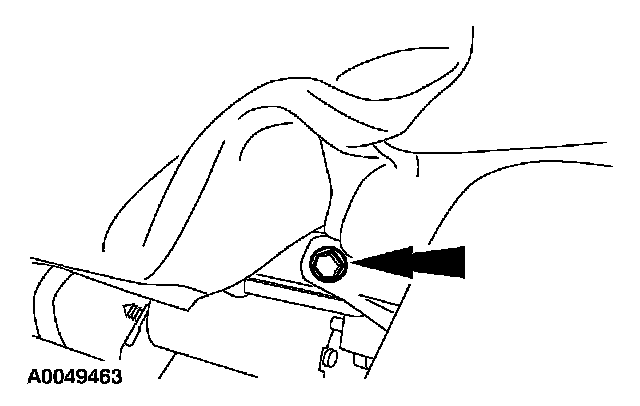

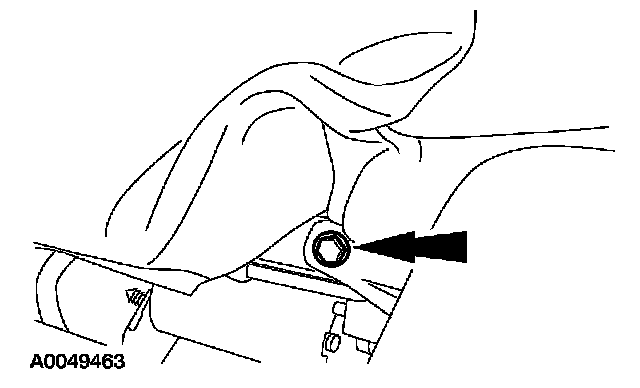

16. Access and remove the front side shield screw.

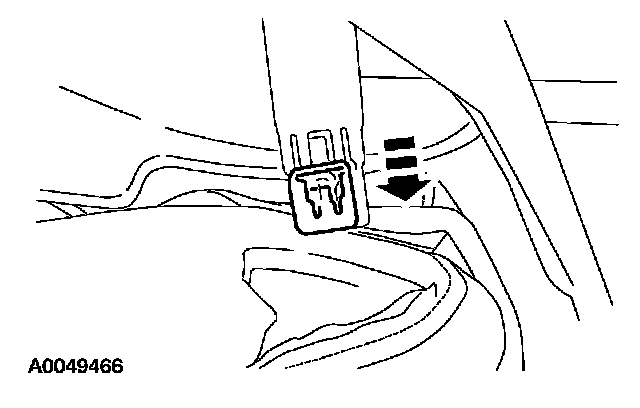

17. Pull to release the retainer clip on the rear of side shield.
18. Remove the side shield from the seat.

Vehicles with 8-way power seat

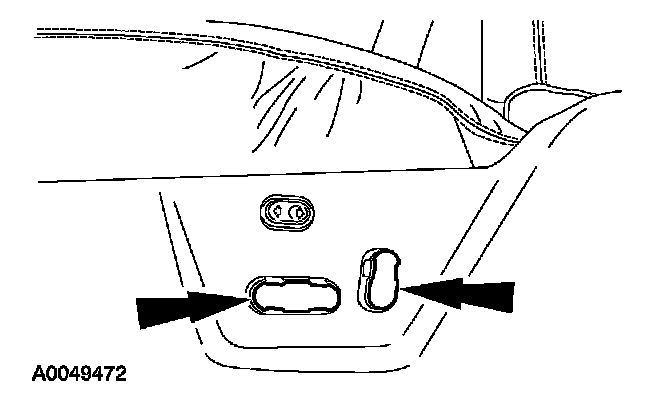

19. Pry to remove the two power seat knobs and remove the knobs.







20. Access and remove the front side shield screw.

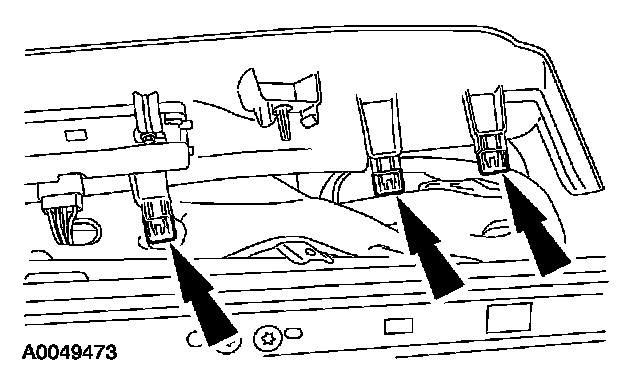

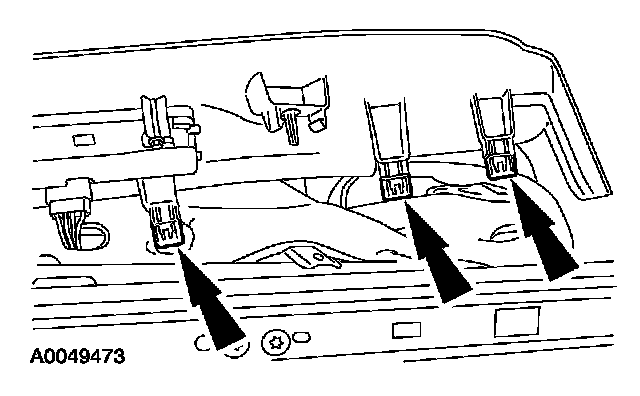

21. Pull out from the bottom and rear side of side shield to release the three retainer clips.

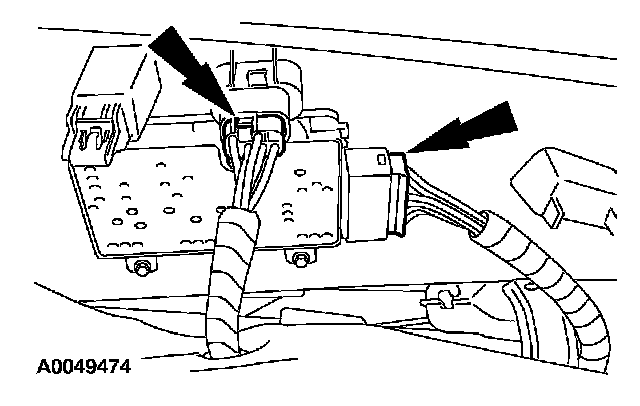

22. Disconnect the power lumbar switch and 8-way power seat switch electrical connectors and remove the side shield.

Outboard seat track







23. Remove the outboard seat track.
1 Remove the nuts.
2 Remove the seat track.

Installation







Outboard seat track
1. Install the outboard seat track.
1 Install the seat track.
2 Install the nuts.

Vehicles with 8-way power seat







2. Install side shield and connect the 8-way power seat and power lumbar switch electrical connectors.







3. Push to install the three side shield retainers onto the seat frame.







4. Access and install the front side shield screw.

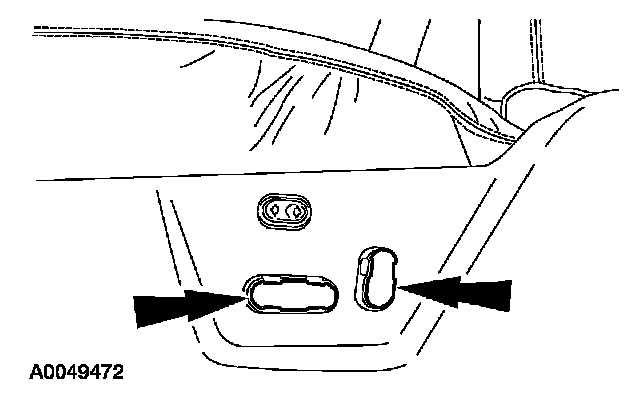

5. Install the two power seat knobs.

Vehicles with 6-way power seat

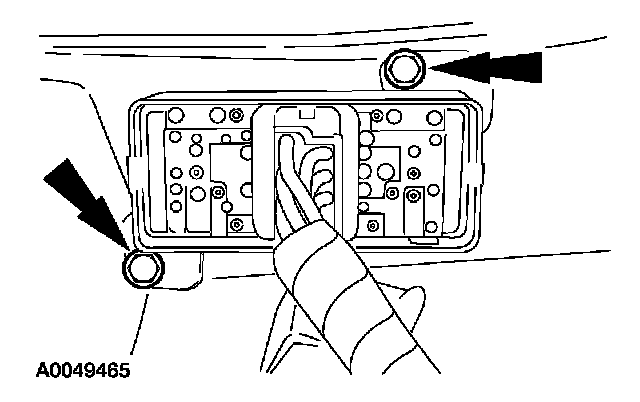

6. Install the 6-way power seat switch on the side shield and install the two screws.
7. Install the side shield on the seat.







8. Push to install the rear side shield retainer onto the seat frame.

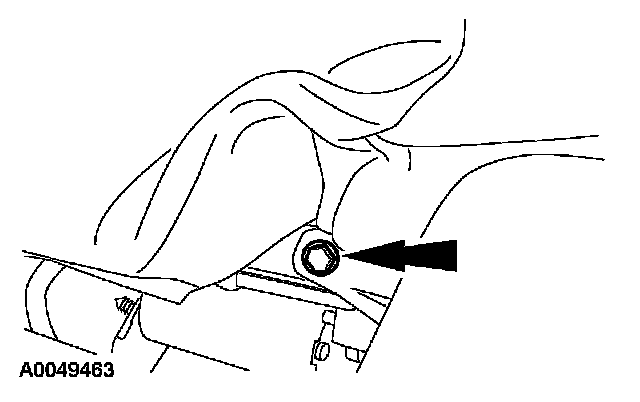

9. Access and install the front side shield screw.







10. Install the 6-way power seat knob.







11. Install the screw on the side shield.







12. Align and install the lumbar knob.

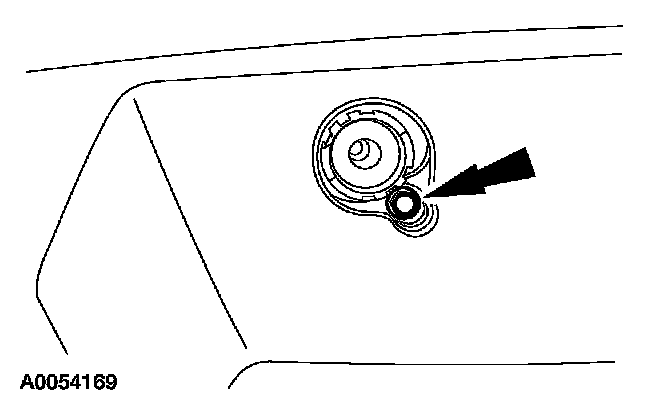

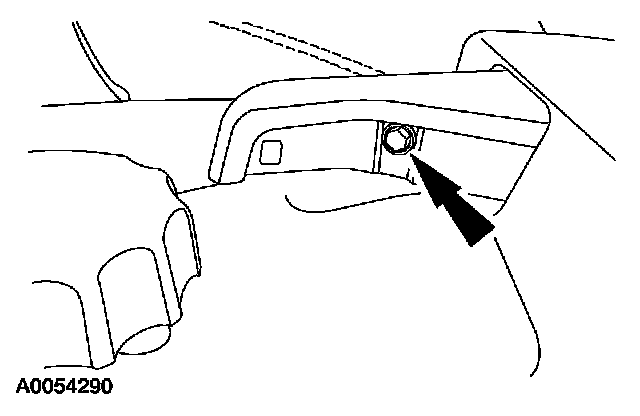

13. Install recliner handle and install the screw.







14. Install the recliner handle cover.







15. Connect the 6-way power seat switch electrical connector.

Outboard seat track







16. Install the outboard forward/reverse motor drive cable to outboard seat track.

Inboard seat track
17. Install the bracket to the seat track and install the two nuts.

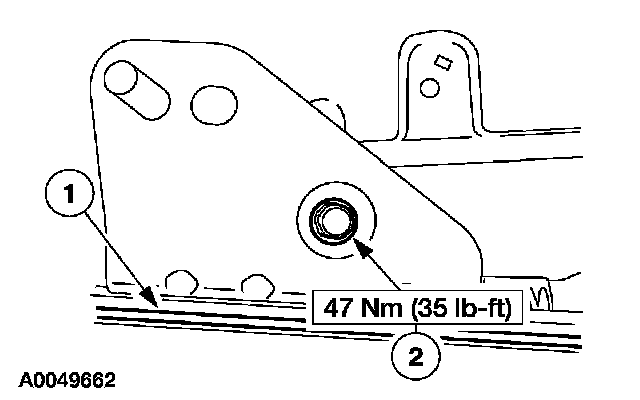

18. Install the rear inboard seat track and bracket.
1 Install the seat track and bracket.
2 Install the bolt.

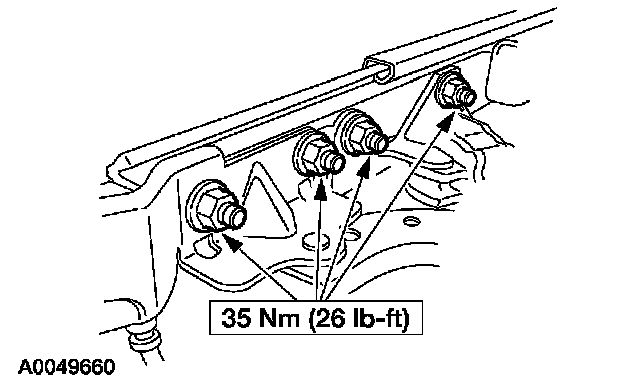

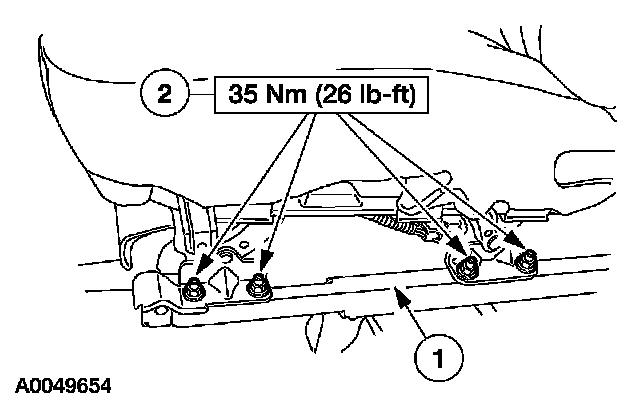

19. Install the four inboard seat track nuts.

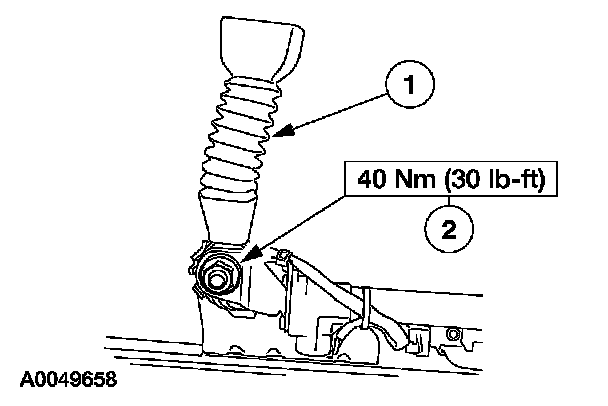

20. Install the safety belt buckle pretensioner.
1 Install the safety belt buckle pretensioner.
2 Install the nut.

21. Connect the safety belt buckle pretensioner and usage detection electrical connectors.







22. Install the inboard forward/reverse motor drive cable to seat track.

Driver seat







23. CAUTION: Make sure to remove all metal chips from seat position sensor and surrounding areas.

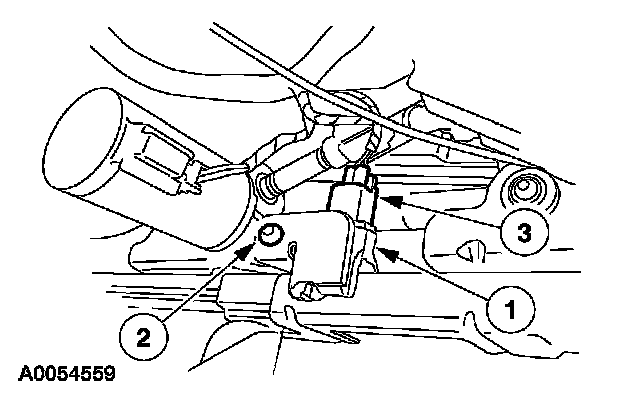

Install the seat position sensor.
1 Install the seat position sensor.
2 Install the rivet.
3 Connect the seat position sensor electrical connector.

Inboard and outboard seat tracks







24. Install the spring.
25. Install the 40 percent seat and repower the SRS.
