Parking Assist Control Module: Service and Repair

PARKING AID MODULE

Removal and Installation

All vehicles
1. Remove the LH quarter trim panel.

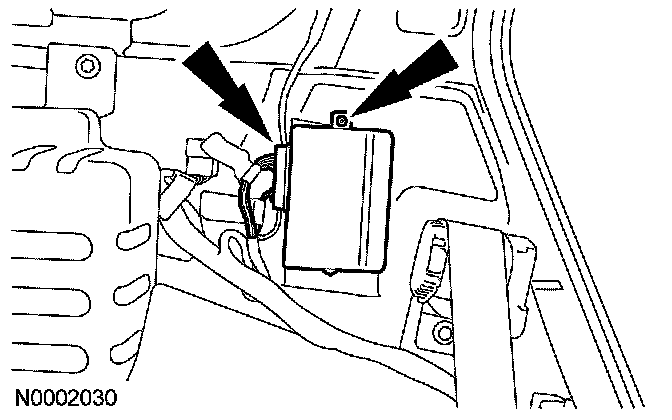

Navigator







2. Remove the parking aid module.
- Disconnect the electrical connector.
- Remove the screw.

Expedition







3. Remove the parking aid module.
- Disconnect the electrical connectors.
- Remove the screws.

All vehicles
4. To install, reverse the removal procedure.
