WIPER PIVOT ARM - REAR

Removal
1. Turn the key to the ON position.
2. Turn the rear wiper to the ON position and allow it to operate through at least 1 cycle.
3. Turn the rear wiper to the OFF position and allow it to come to rest in the PARK position.
4. Mark the position of the rear wiper blade on the back glass for reinstallation.

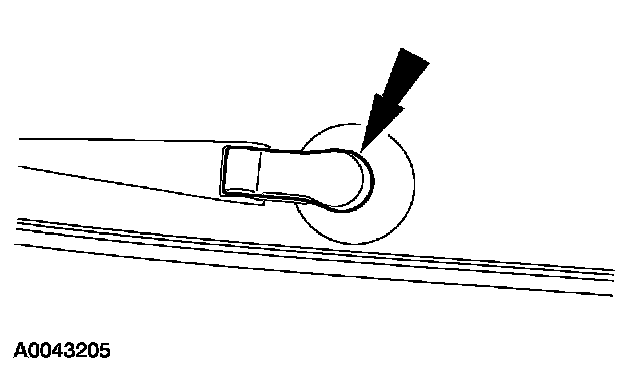

5. Open the rear window wiper pivot arm cover.
6. Remove the rear window wiper pivot arm nut.
7. Remove the rear wiper pivot arm.

Installation
1. Install the rear wiper pivot arm so the rear wiper blade is aligned with the mark previously made.
2. Install the rear wiper pivot arm nut.
- Tighten to 15 Nm (11 lb-ft).

3. Cycle the rear wiper and check for correct alignment in the PARK position and adjust as necessary.







4. Install the rear wiper pivot arm cover.
