WIPER PIVOT ARM - FRONT

Removal







1. Remove the windshield wiper pivot arm.
1 Raise the arm to 90 degrees from the windshield.

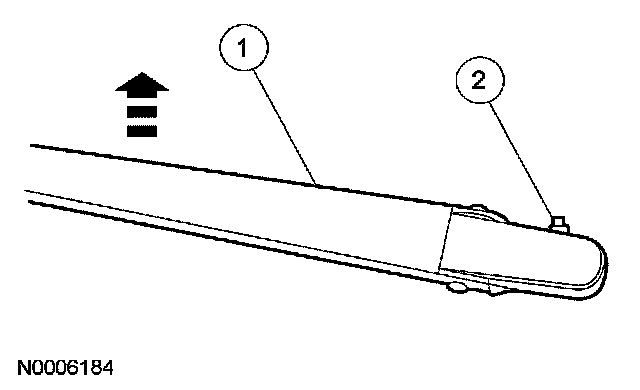

2 Pull out the retainer tab and remove the arm.

Installation
1. Install the windshield wiper pivot arm.
2. Cycle and park the windshield wipers.

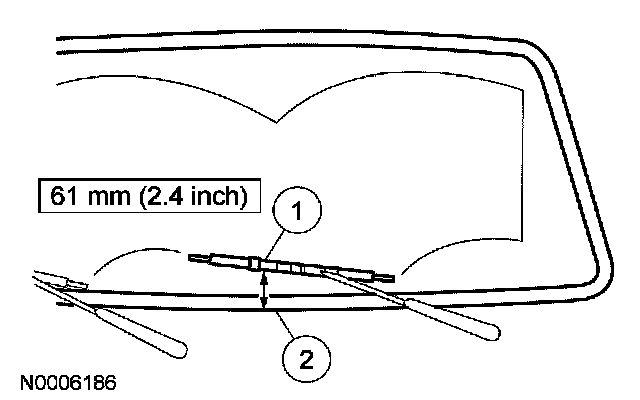

3. Verify the distance between the center of the (1) RH windshield wiper blade and the (2) bottom of the windshield glass is within specification.

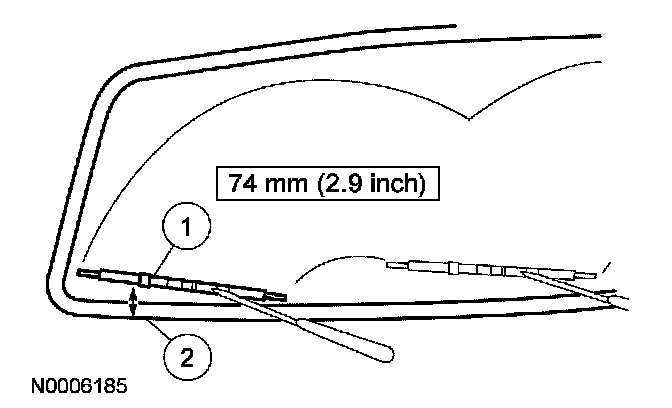

4. Verify the distance between the center of the (1) LH windshield wiper blade and the (2) bottom of the windshield glass is within specification.
5. If the distance is not within specification, remove the windshield wiper pivot arm and adjust as necessary.
