Rear Door Window Regulator: Service and Repair

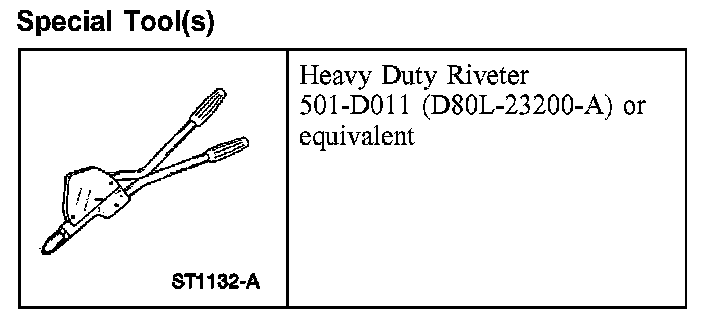

REAR DOOR WINDOW REGULATORHeavy Duty Riveter:
Special Tool(s)
Removal and Installation
1. Remove the inside door trim panel.
2. Remove the weathershield.
3. Remove the rear door speaker.
4. Remove the rivet.
- To install, lower the window glass as necessary to gain access for installation of the new rivet.

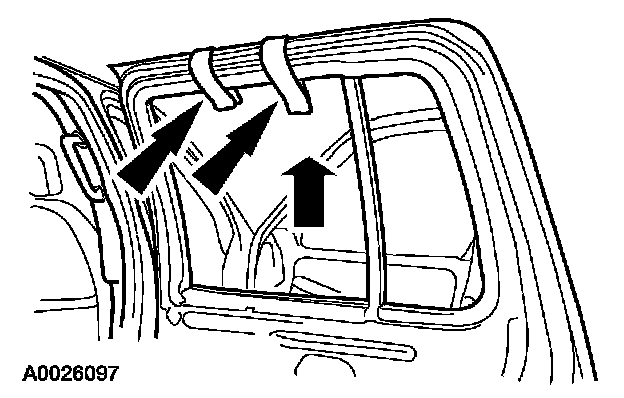

5. Raise the window glass fully and tape in position to prevent the window from dropping.
6. Disconnect the window regulator motor electrical connector.
7. Remove the window regulator nuts.
- To install, tighten to 10 Nm (89 lb-in).
8. Remove the window glass regulator assembly through the door opening.
9. To install, reverse the removal procedure.
