Test C: The AWD Indicator Does Not Operate Correctly/Does Not Operate/Flashes

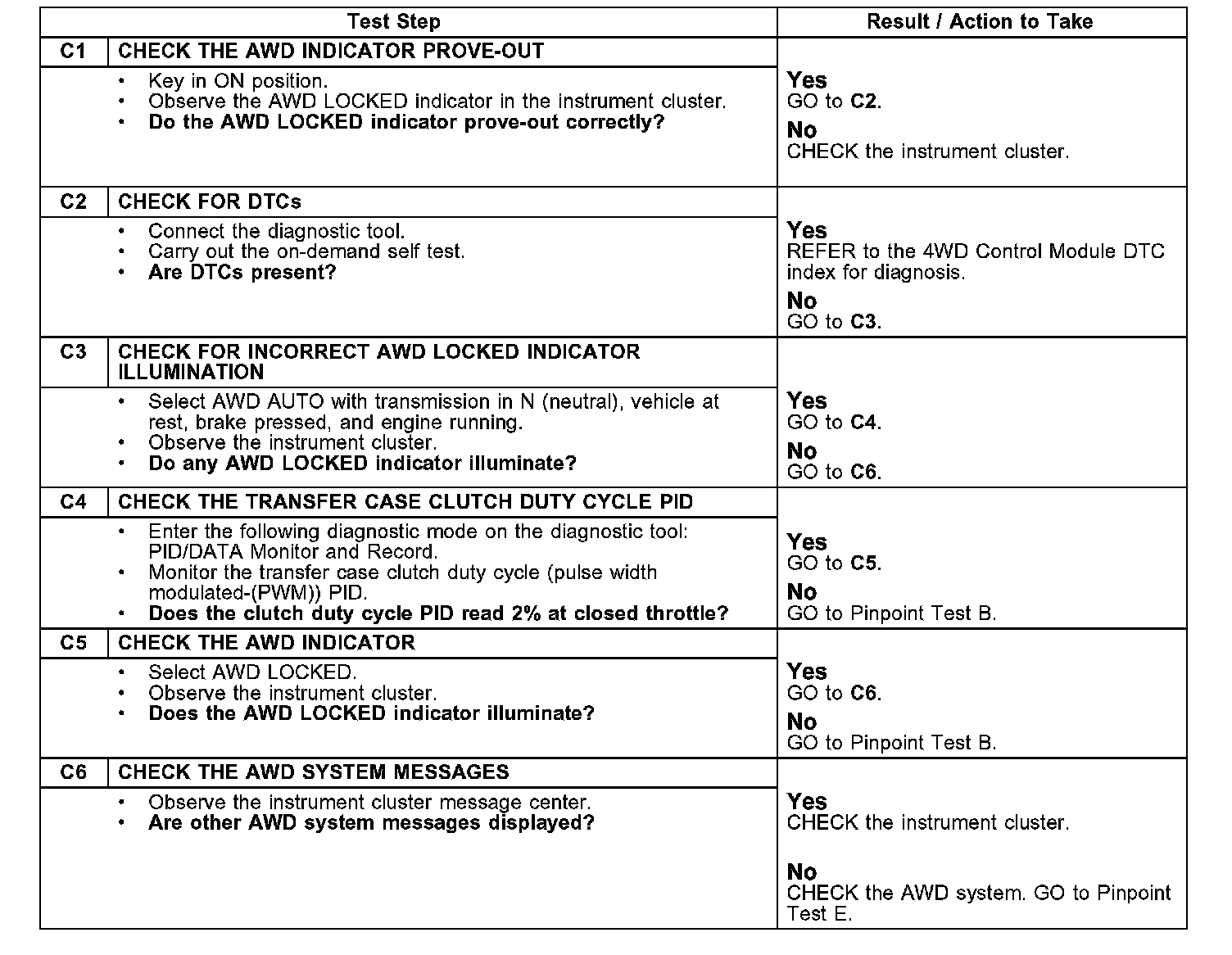

Pinpoint Test C: The AWD Indicator Does Not Operate Correctly/Does Not Operate/FlashesTest C1-C6:
Normal Operation
The AWD LOCKED indicator status is transmitted to the instrument cluster from the 4WD module through the controller area network (CAN). A steady indicator displays when the vehicle is in AWD LOCKED, according to the driver selection. Depending on the type of failure, the indicator flashes at 2 minute intervals to indicate all-wheel drive (AWD) system fault conditions. For additional information about CAN, refer to Information Bus (Module Communications Network). [1][2]Diagnostic Trouble Code Descriptions
Possible Causes
^ Instrument cluster (IC)
^ AWD system fault
^ CAN circuits
^ 4WD control module
