Connector Circuit Reference

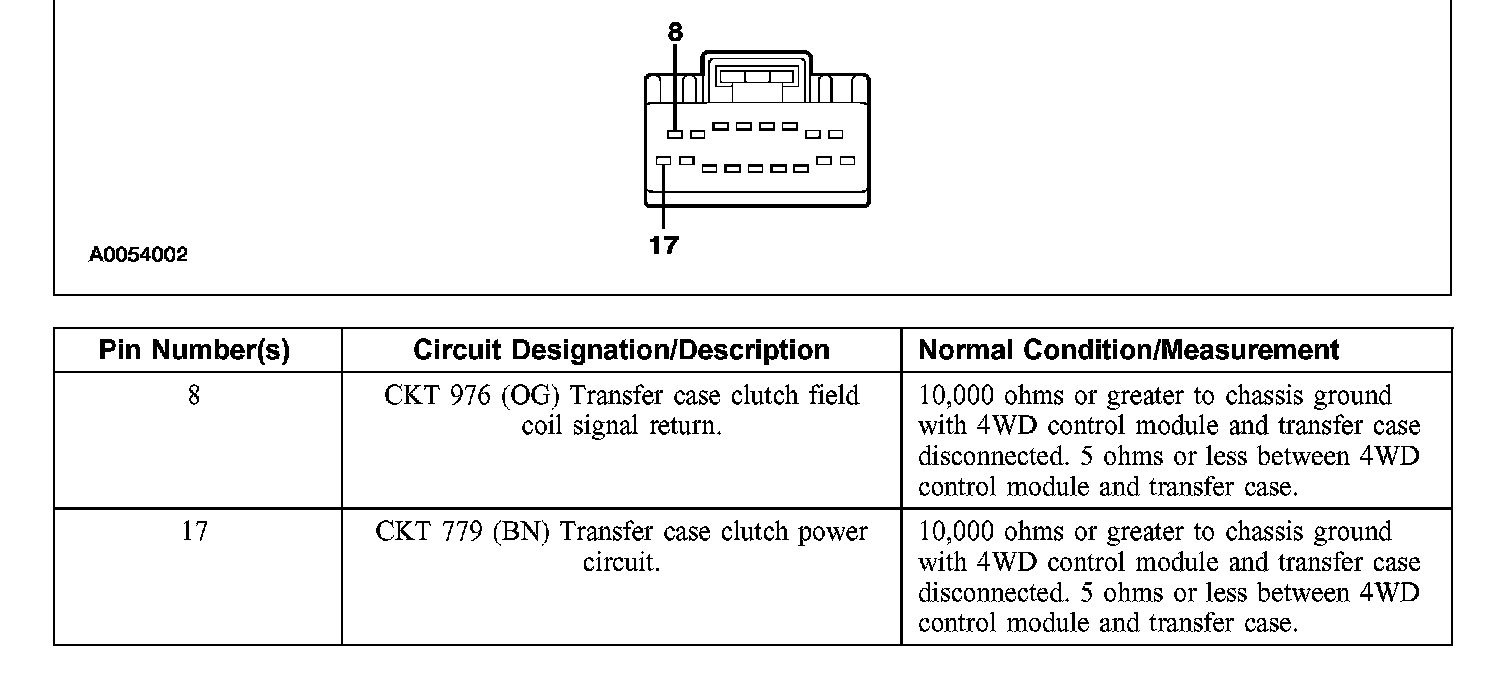

Four Wheel Drive (4WD) Control Module C281a:

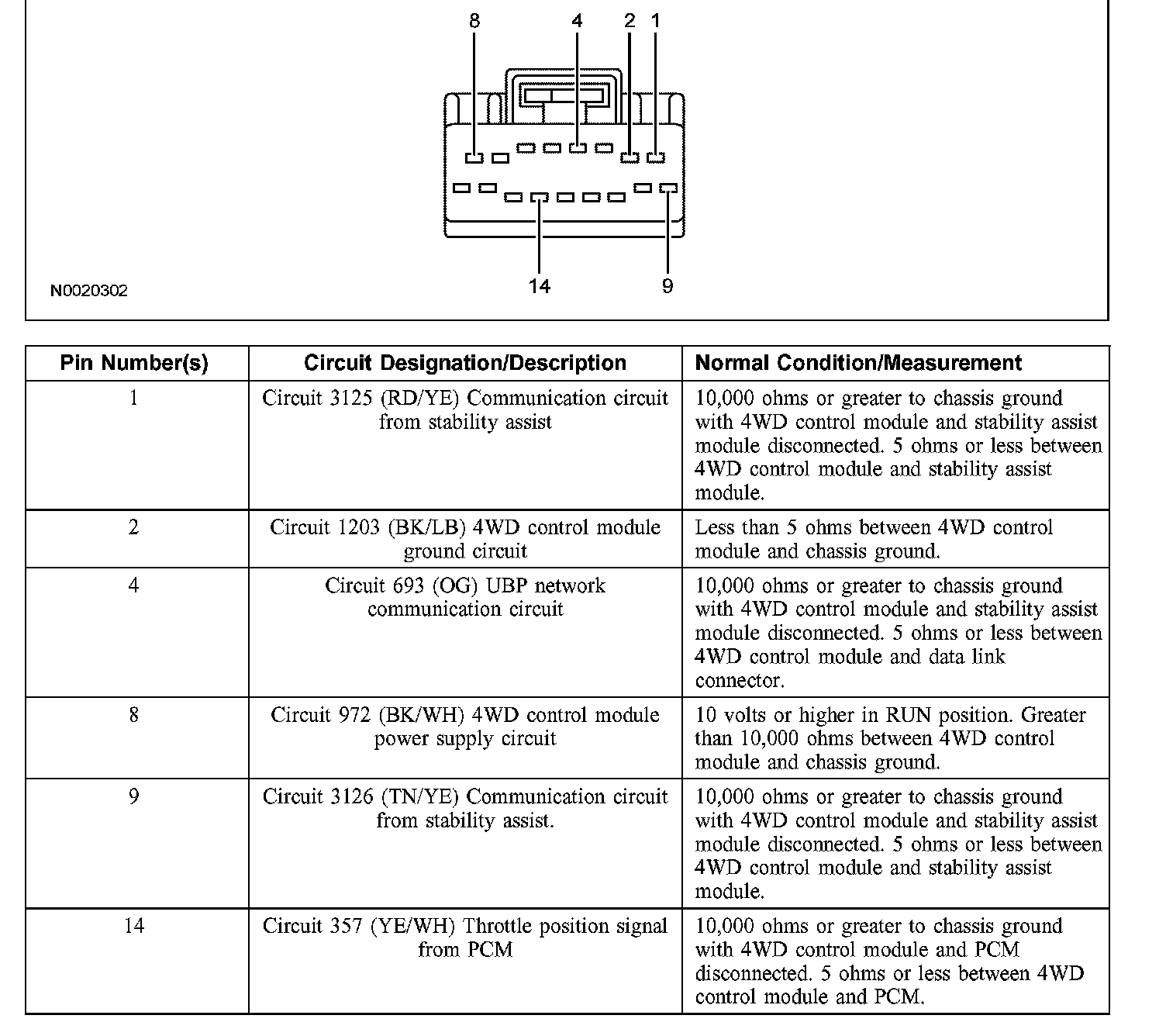

Four-Wheel Drive (4WD) Control Module C281b:

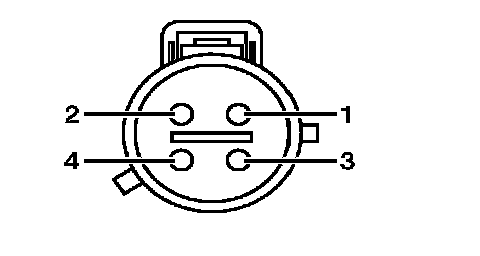

Transfer Case (1-speed Torque-On-Demand) C350:

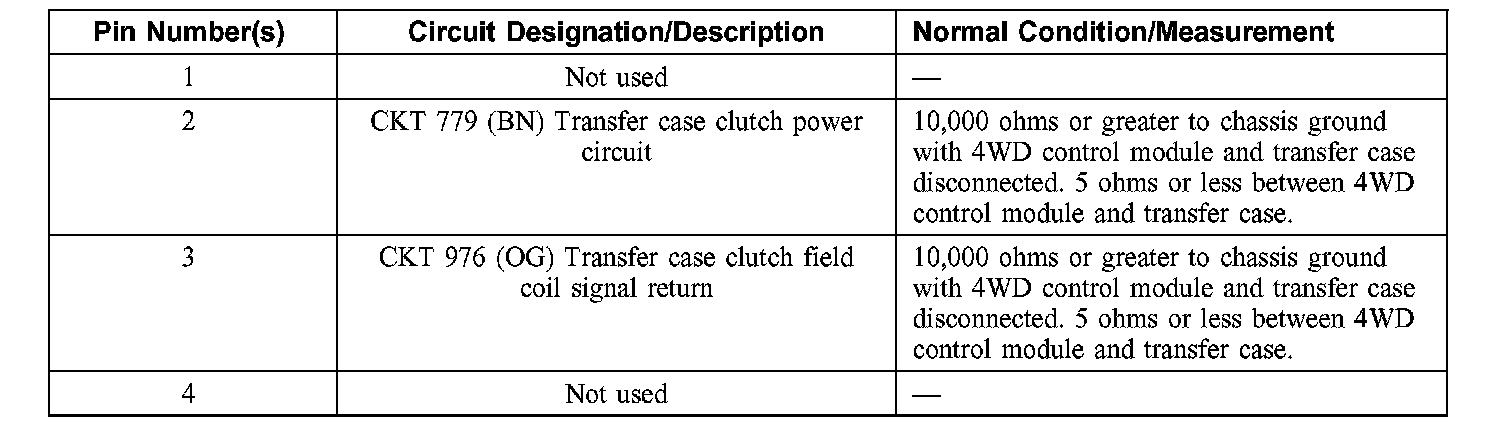

Transfer Case (1-speed Torque-On-Demand) C350:
