Transmission Connector Layouts
Transmission Connector Layouts

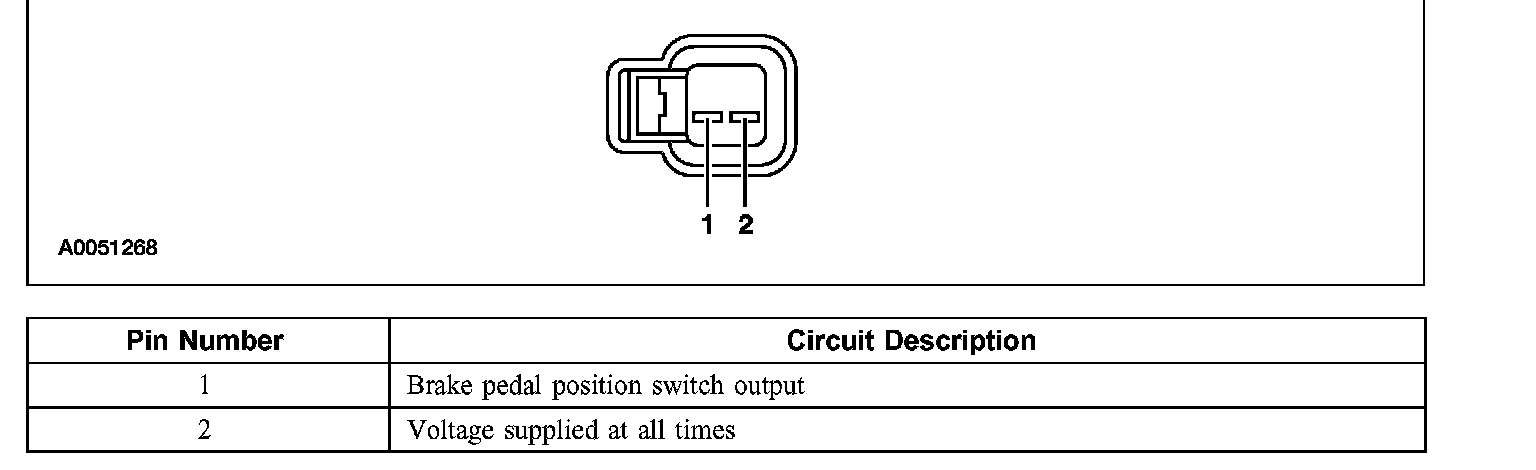

Brake Pedal Position (BPP) Switch:

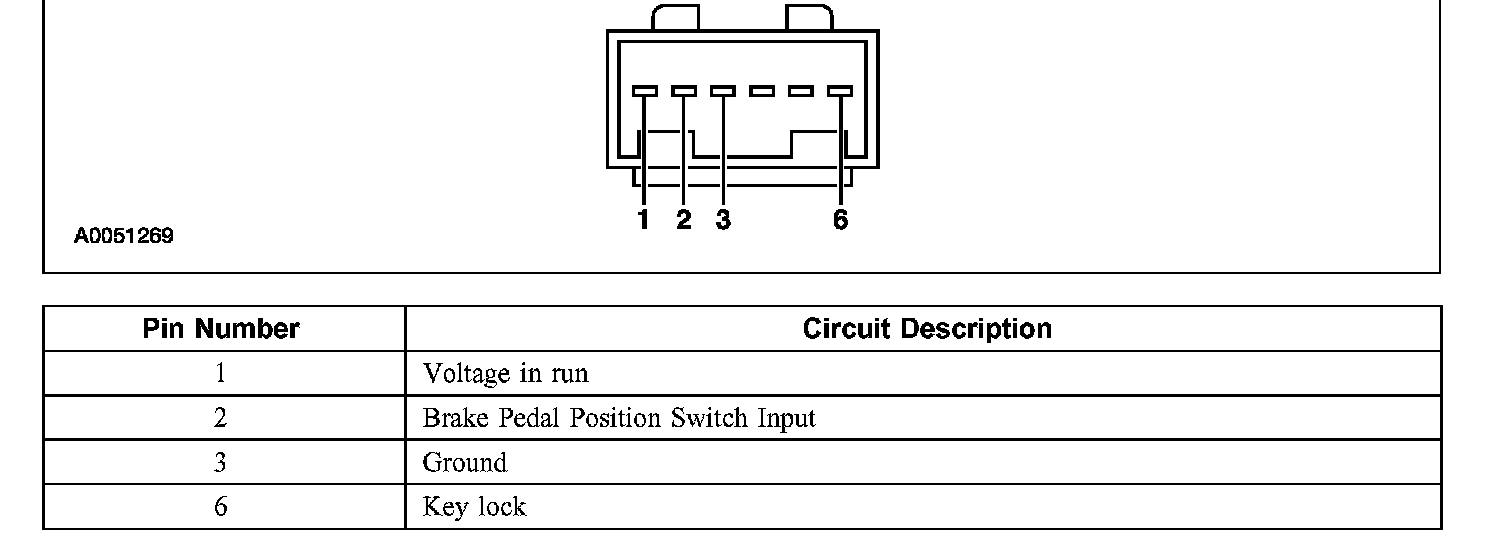

Brake Shift Interlock Switch:

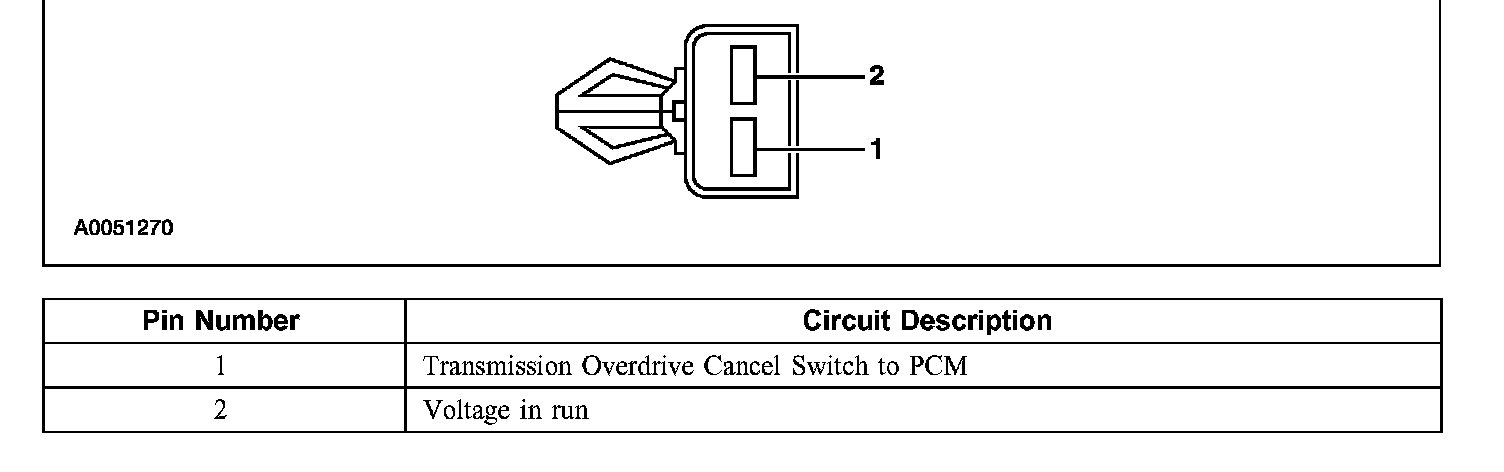

Transmission Control Switch (TCS):

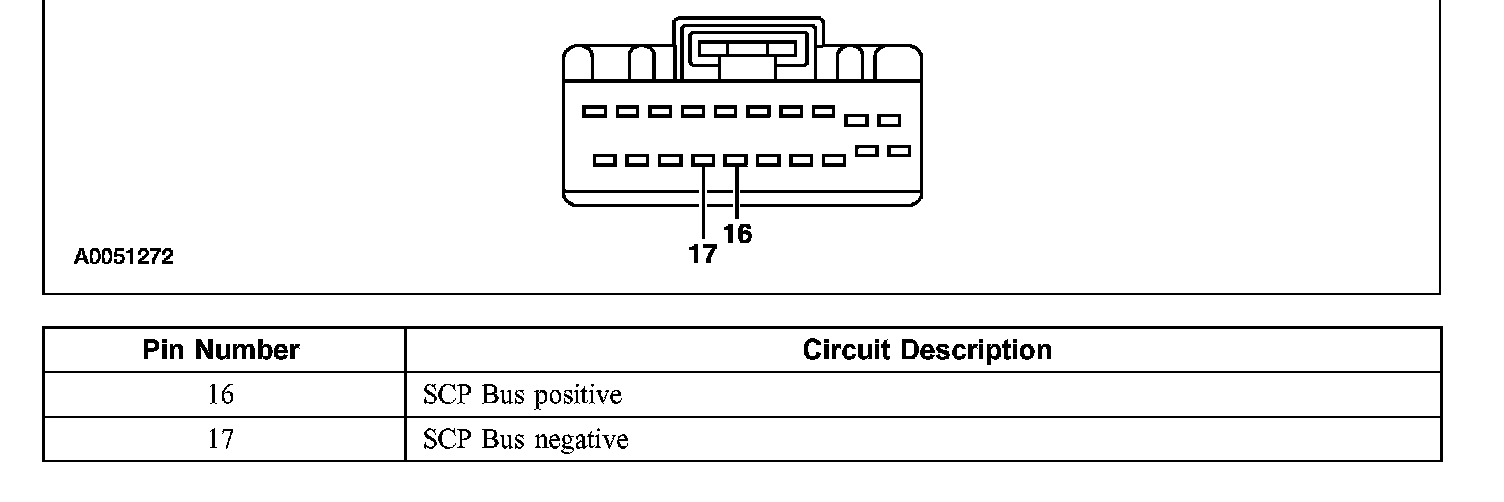

Instrument Cluster:

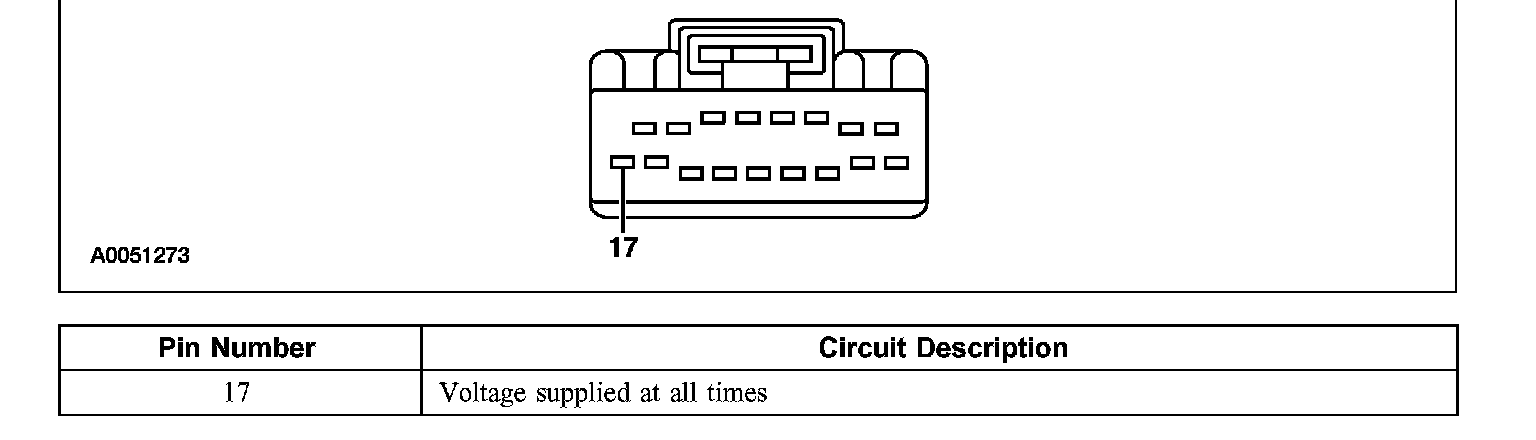

Instrument Cluster C220a:

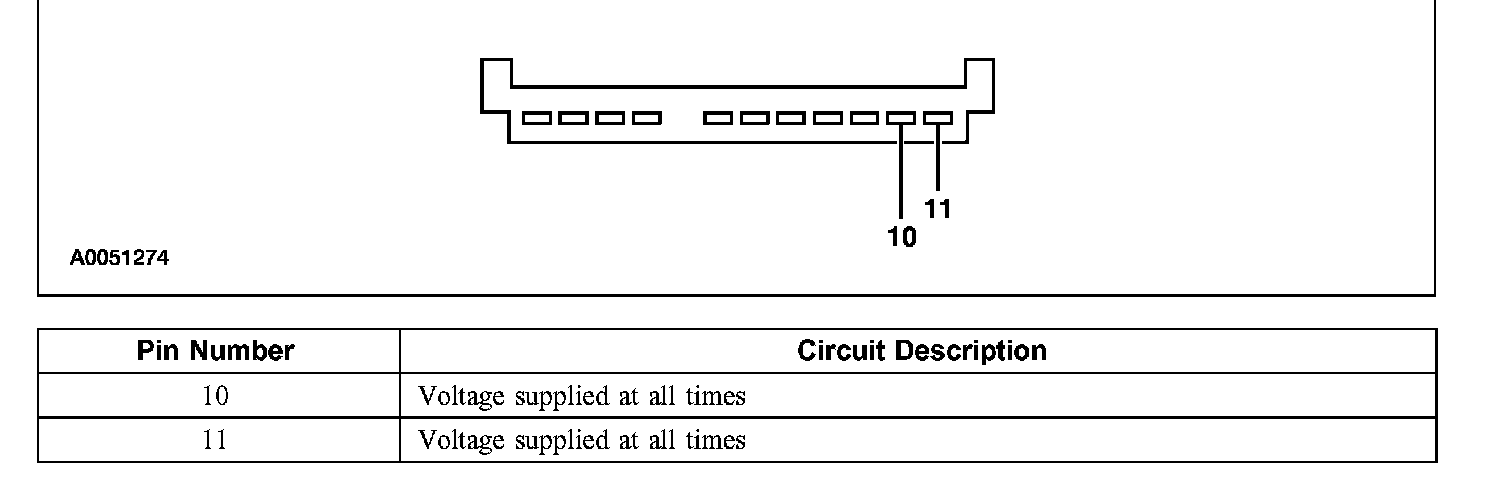

Battery Junction Box C1117:
