Test C: Transmission Control Switch (TCS) Is Not Operating Correctly

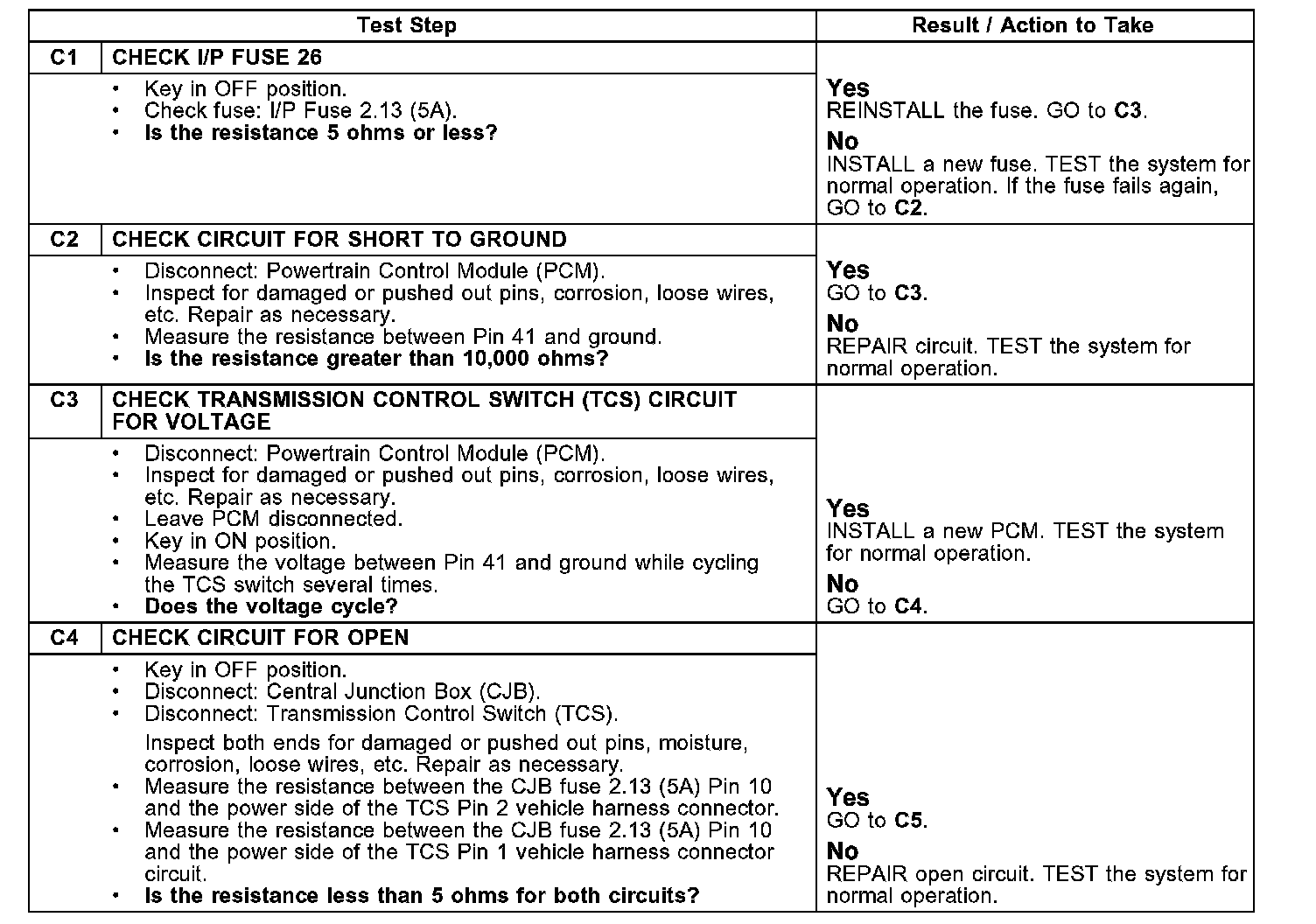

Pinpoint Test C: Transmission Control Switch (TCS) Is Not Operating CorrectlyTest C1-C4:
Test C5:
Normal Operation
When the TCS switch is depressed, the transmission will either disengage or engage the overdrive function.
Possible Causes
When the TCS switch is depressed and the transmission will not disengage or engage the overdrive function, the possible causes are:
^ Blown fuse
^ Short to ground
^ Short to open
^ Faulty switch
^ Wiring, terminals or connectors
