Test A: Shift Interlock System Does Not Release/Lock Correctly

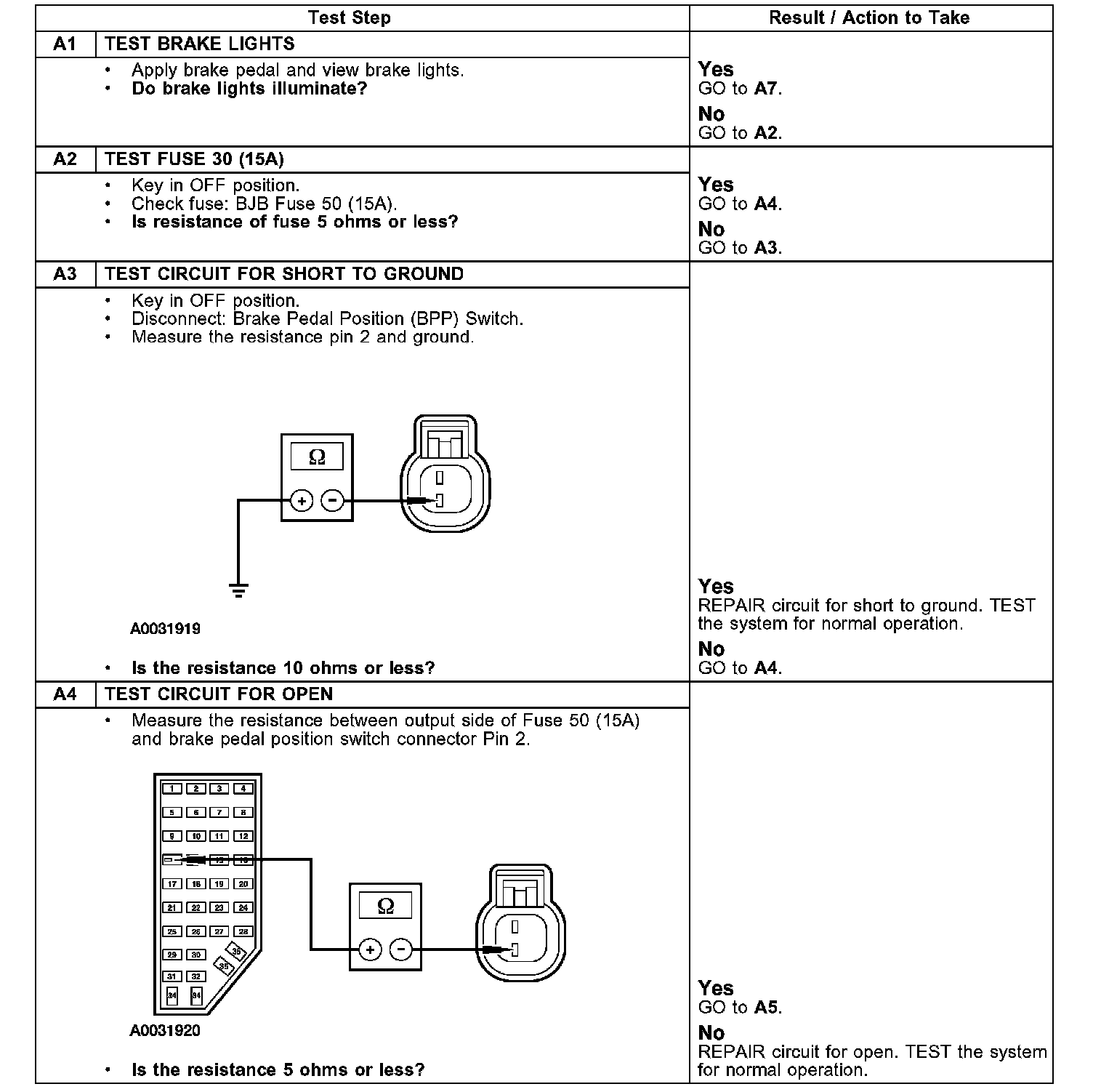

Pinpoint Tests A: Shift Interlock System Does Not Release/Lock CorrectlyTest A1-A4:

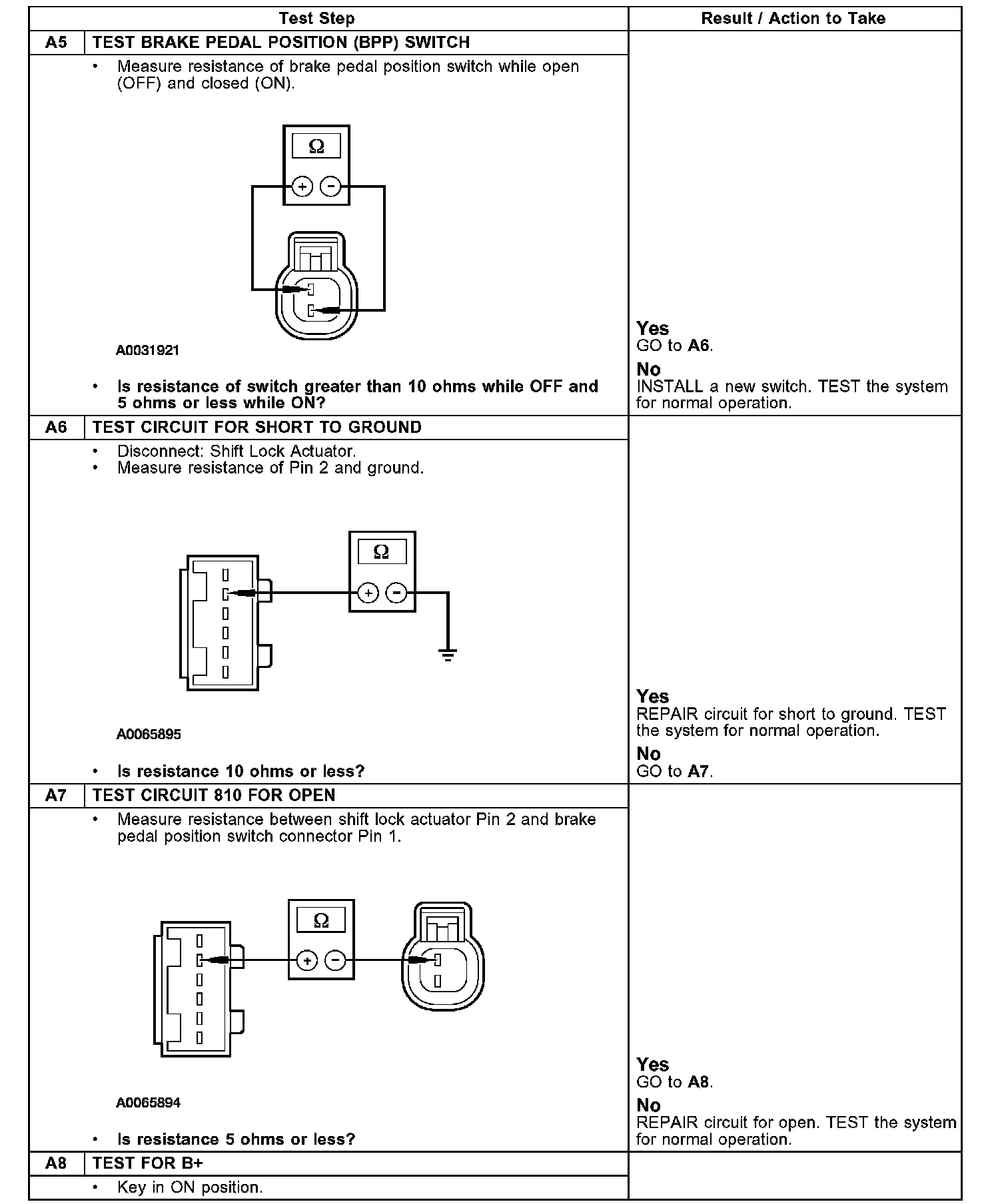

Test A5-A8:
Test A8-A11:

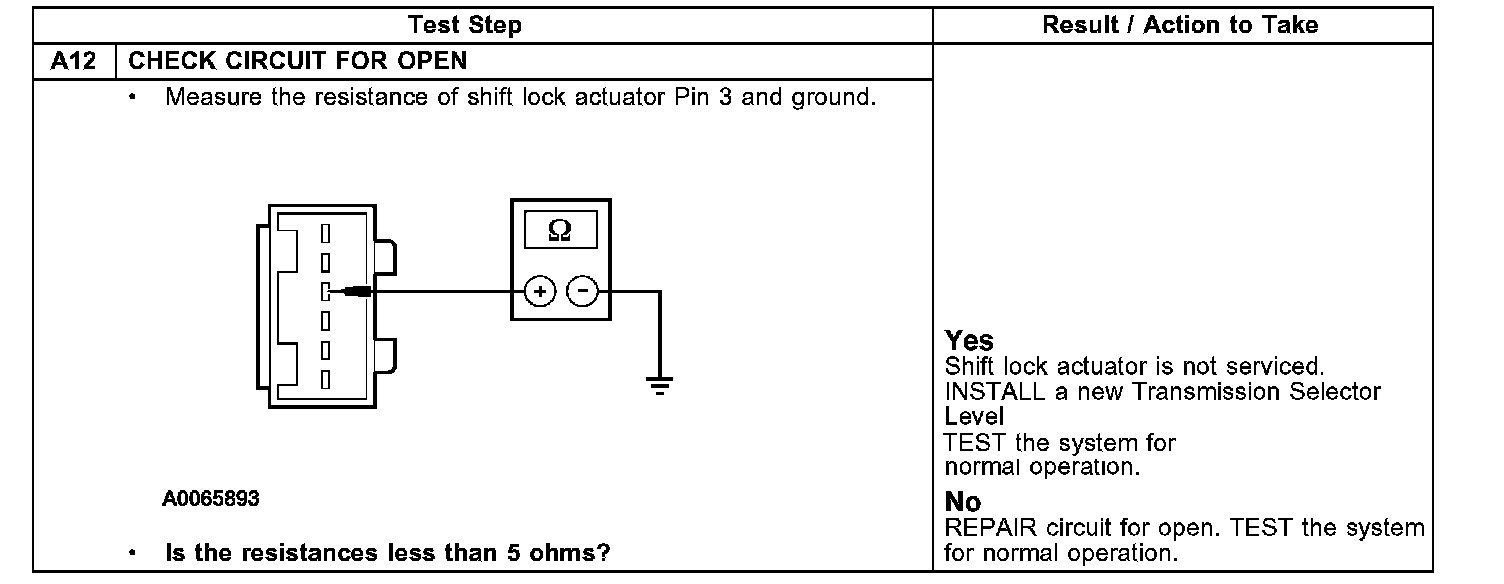

Test A12:
Normal Operation
The shift lever will not come out of PARK unless the key is in the ON position and the brake pedal is depressed.
Possible Causes
If the range selector lever does not release or lock, the cause may be:
^ Faulty brake pedal position (BPP) switch
^ Blown fuse
^ Short to ground
^ Short to open
^ Faulty shift lock actuator
^ Wiring, terminals or connectors
