Initial Inspection - External Controls

External Controls





Special Tool(s)

Inspection and Verification

1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the Visual Inspection Chart.

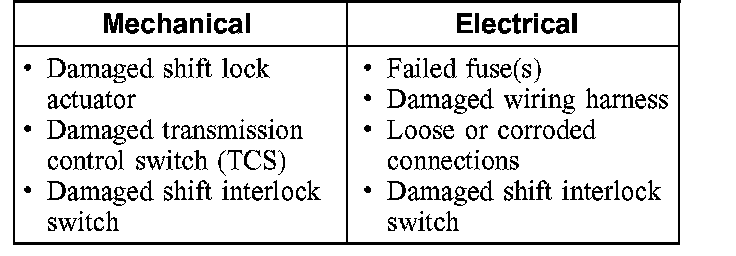

Visual Inspection Chart

3. If the fault is not visually evident, determine the symptom. GO to Symptom Chart. Diagnosis By Symptom - External Controls
