Transmission Fluid Cooler Hoses

Transmission Fluid Cooler Hoses

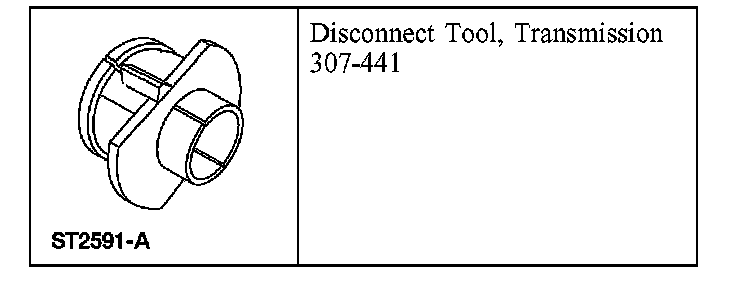

Special Tool(s)

Removal

1. With the vehicle in NEUTRAL, position the vehicle on a hoist. Refer to Maintenance/Service and Repair.

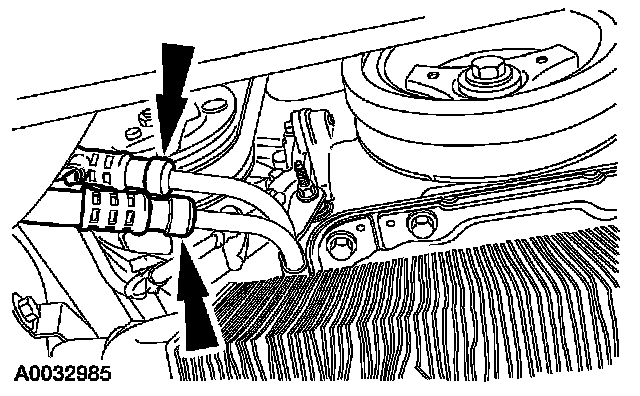

2. NOTE: If equipped, remove the safety retainer from the connector.

Disconnect the cooler line.

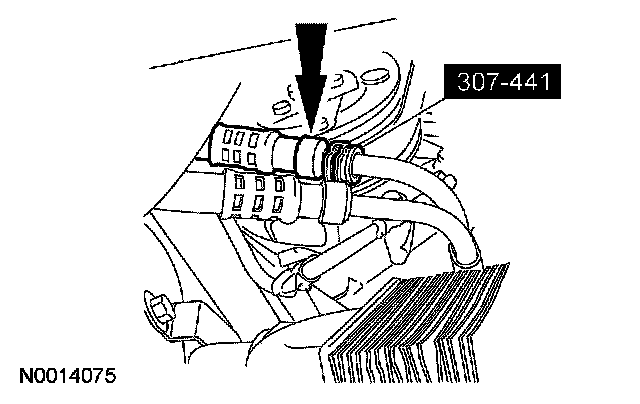

^ If equipped, use the special tool to disconnect the quick connect coupler.
^ If equipped, loosen and remove the screw clamp from the hose.

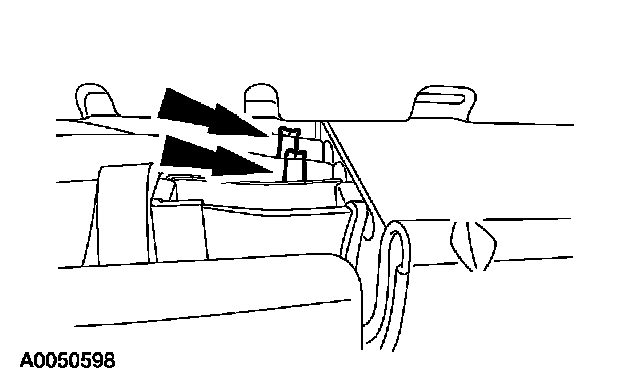

3. NOTE: Use side cutter pliers to cut the hose clamps.

Remove the fluid cooler hoses from the fluid cooler.

Installation

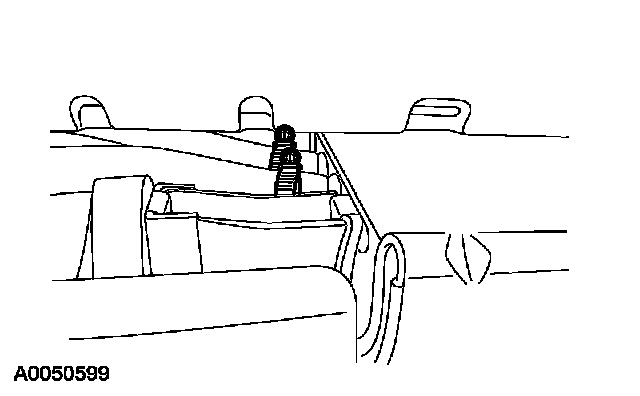

1. Install new fluid cooler hoses to the fluid cooler. Install new screw clamps to secure the hoses to the fluid cooler.





2. Connect the transmission cooler hoses to the cooler tubes.
3. If equipped, install the safety retainer on the connector.
4. Position the vehicle.
5. Fill transmission fluid to the correct level using clean automatic transmission fluid and inspect for leaks.
