Connector Circuit Reference

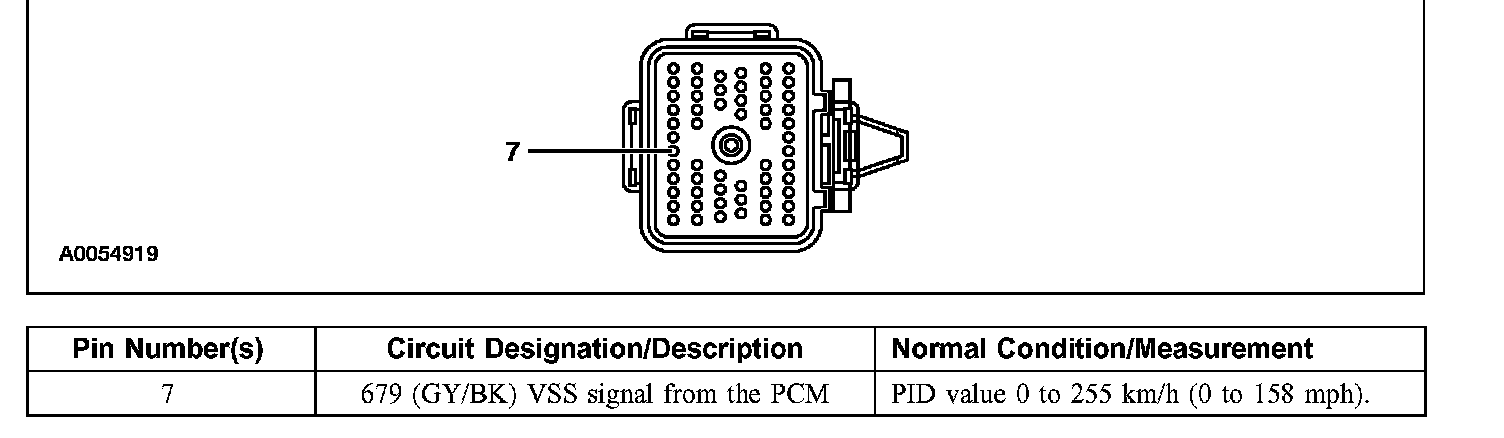

Powertrain Control Module (PCM) C175b:

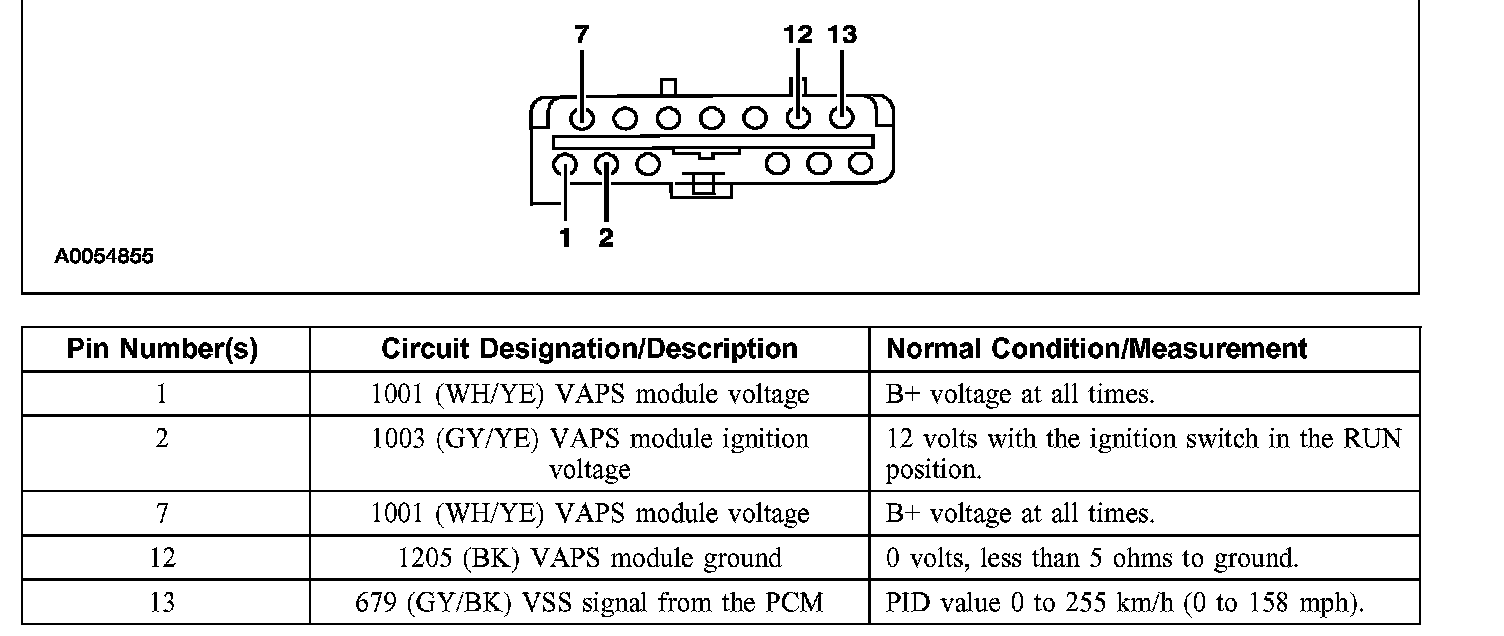

Variable Assist Power Steering (VAPS) Module C2231a:

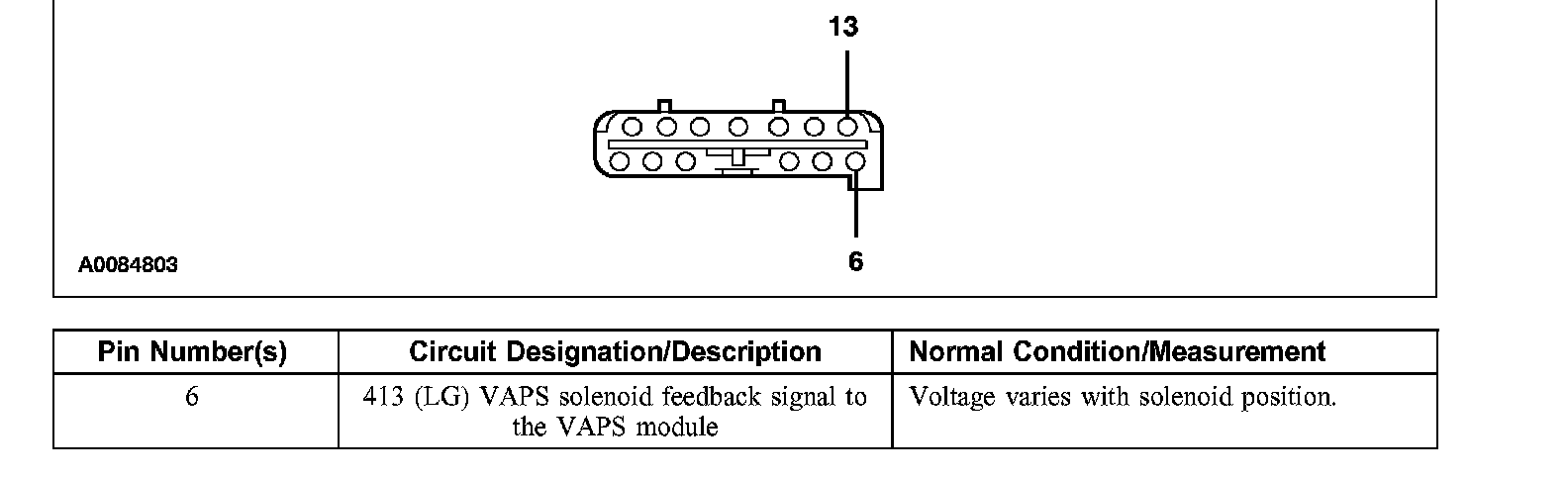

Variable Assist Power Steering (VAPS) Module C2231b:

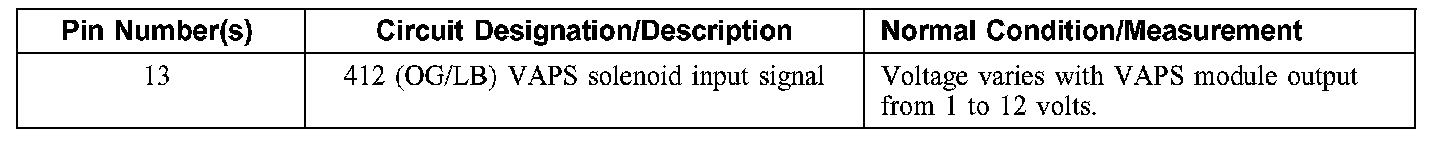

Variable Assist Power Steering (VAPS) Module C2231b:

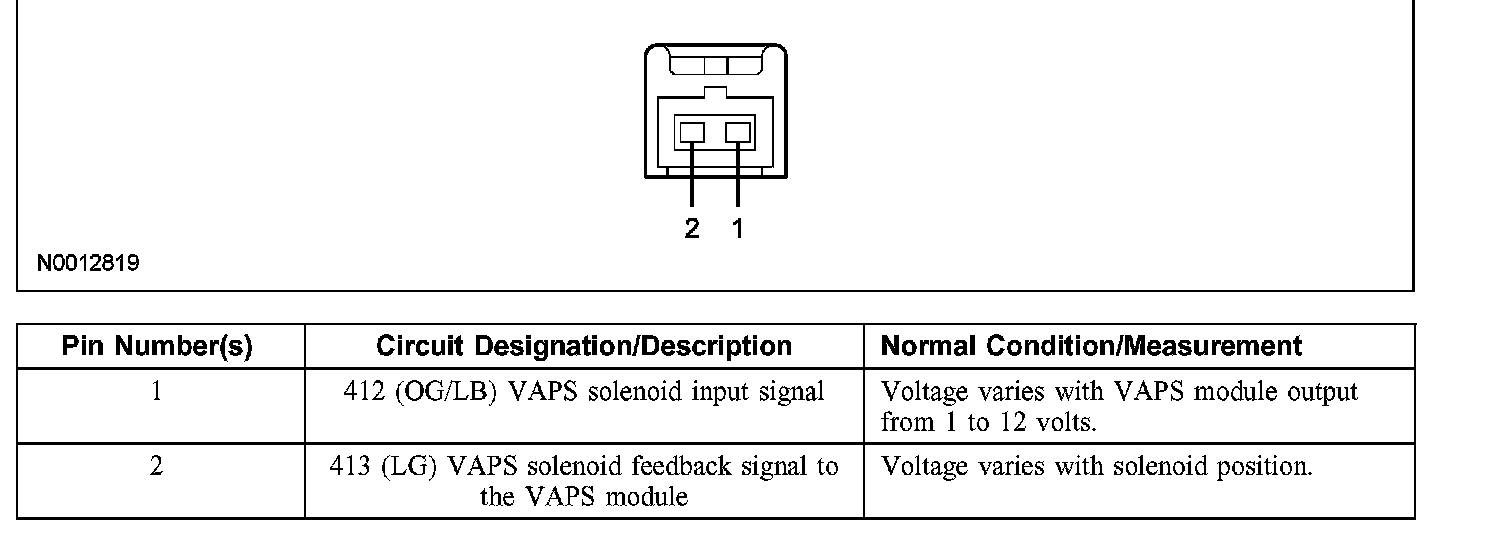

Variable Assist Power Steering (VAPS) Solenoid C2231:
