Lincoln Truck
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Steering Column
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
Connector Circuit Reference

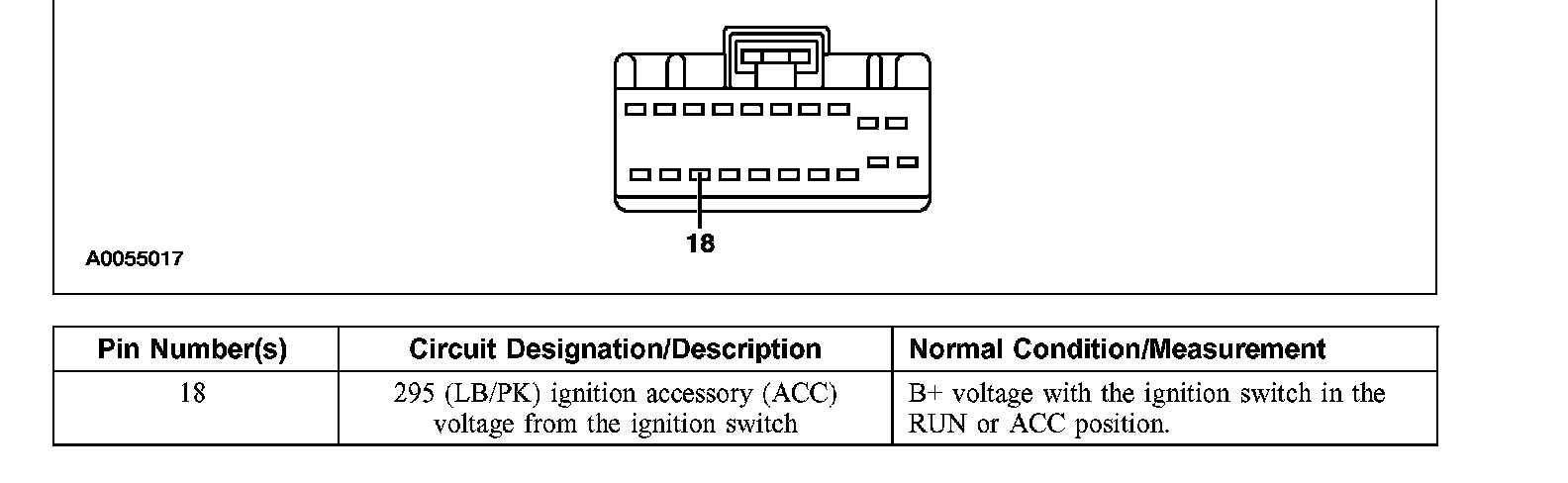

Instrument Cluster Connector C220a:

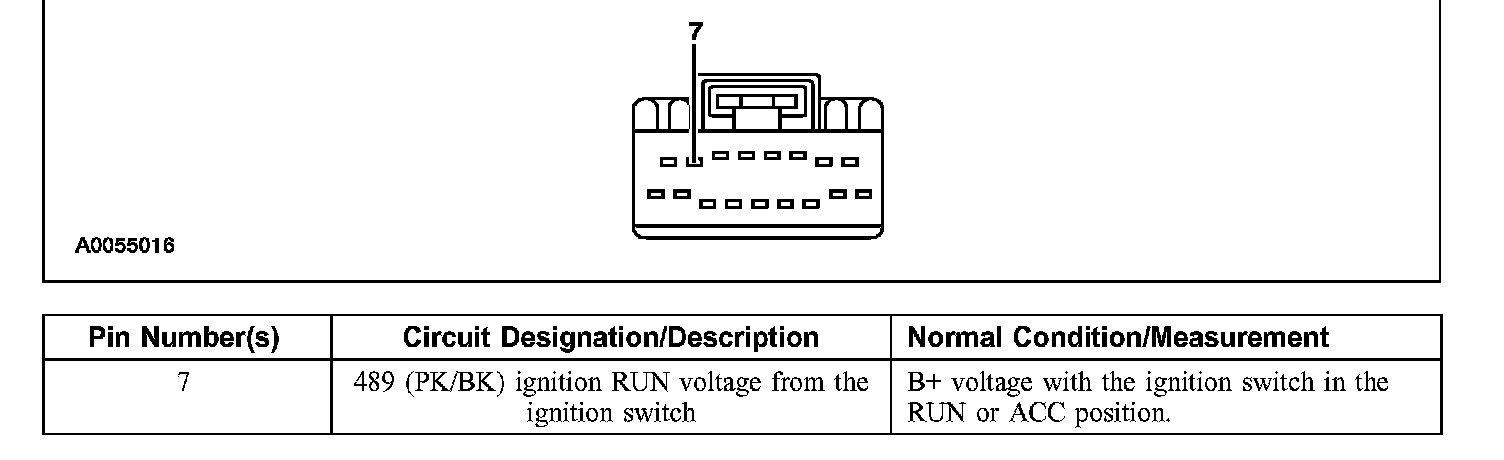

Instrument Cluster Connector C220b:

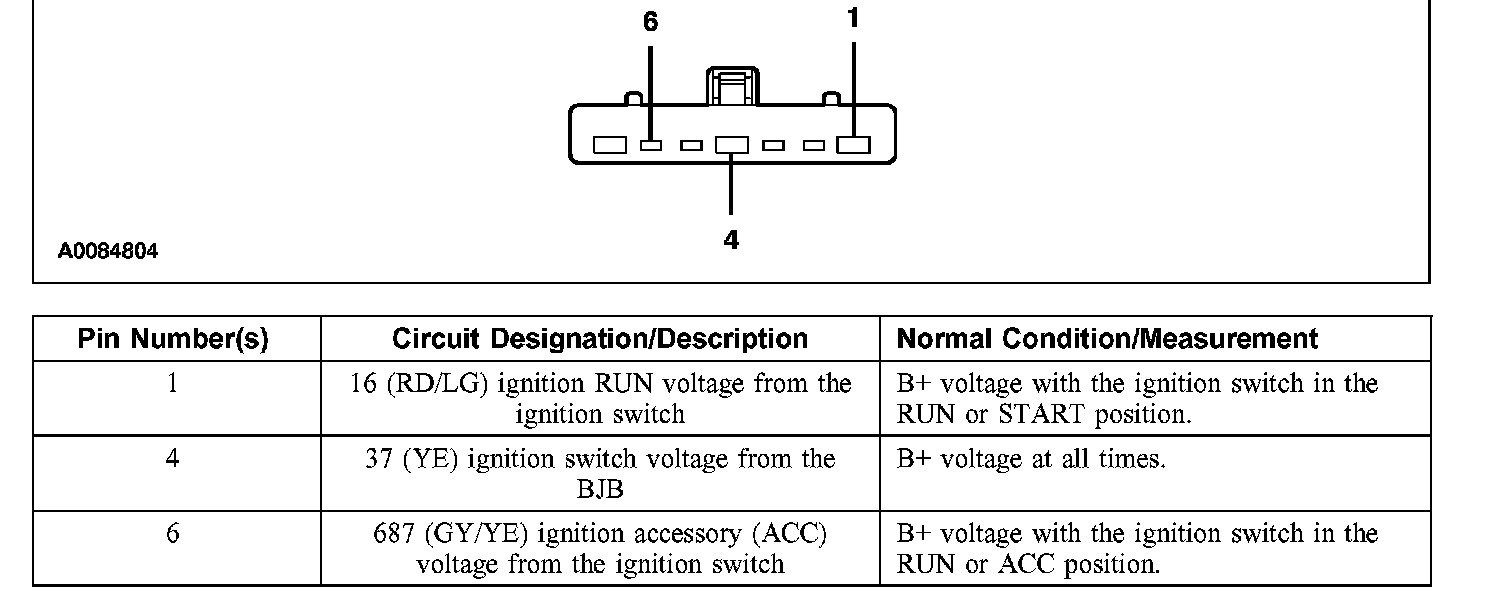

Ignition Switch Connector C250:
