Power Steering Pressure Control Valve: Service and Repair

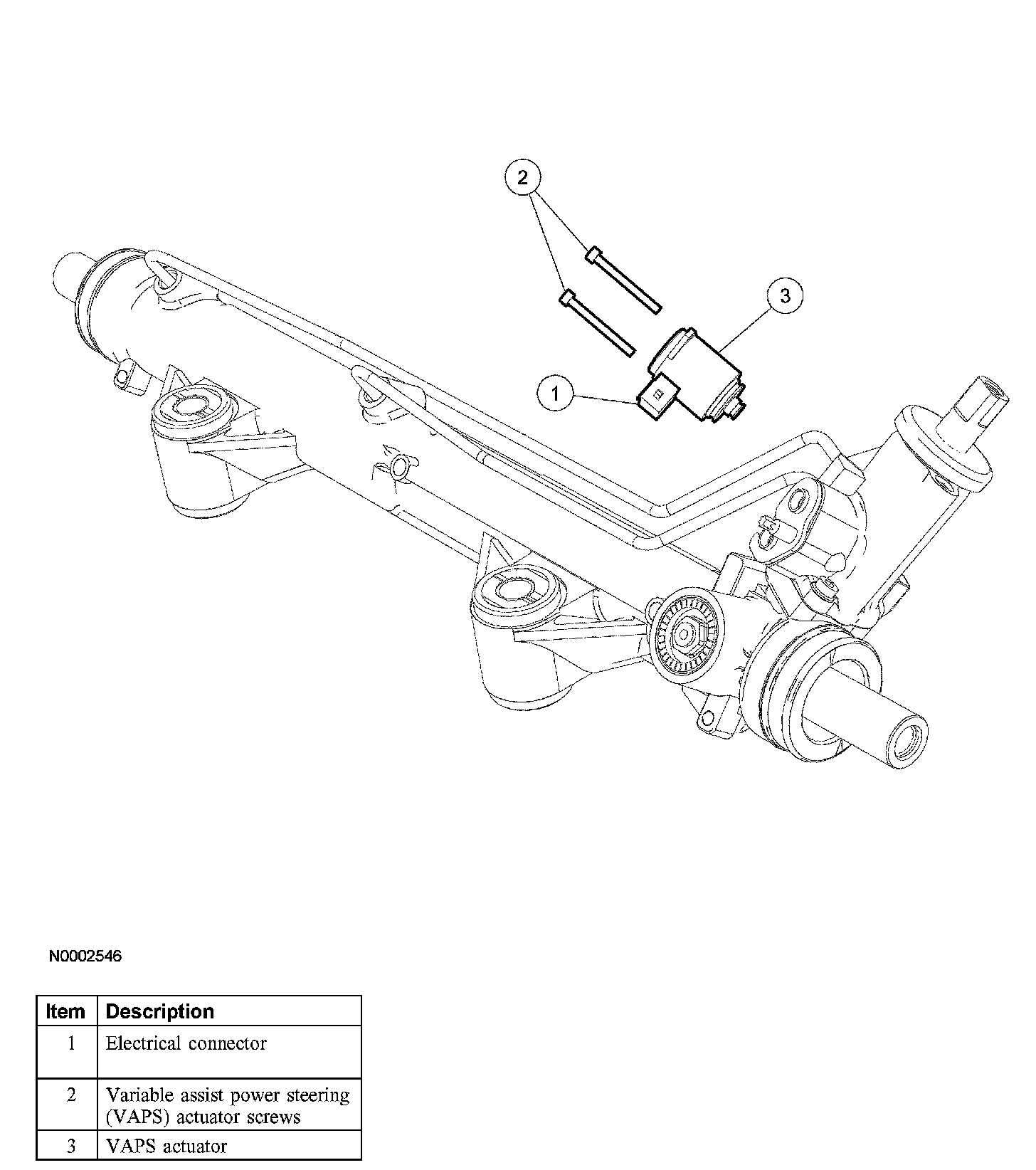

Power Steering Control Valve Actuator

Removal and Installation





1. With the vehicle in NEUTRAL, position it on a hoist. Refer to Maintenance/Service and Repair.
2. Disconnect the electrical connector.
3. Remove the 2 screws and the power steering control valve actuator.
4. To install, reverse the removal procedure.
