Battery Tray

BATTERY TRAY

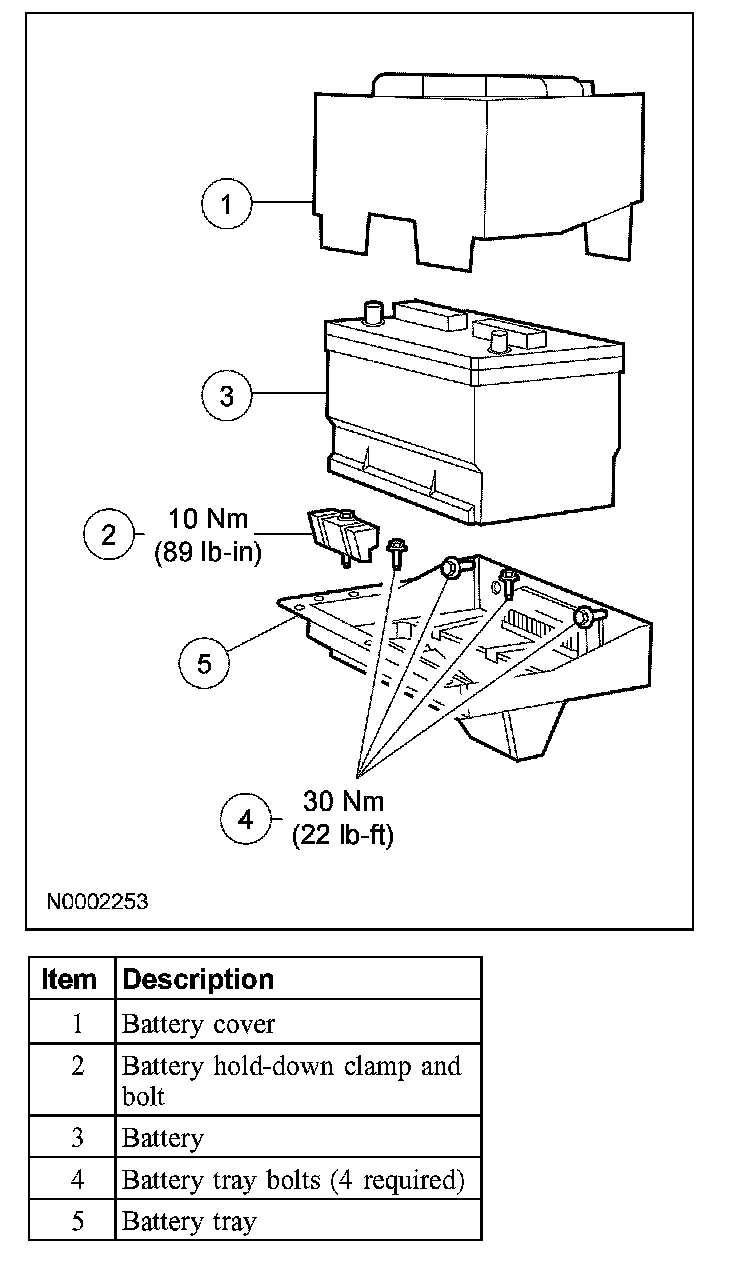

Exploded View

Removal and Installation
1. Remove the battery.
2. Remove the 4 battery tray bolts and the battery tray.
- To install, tighten to 30 Nm (22 lb-ft).

3. To install, reverse the removal procedure.
