Safety Belt System - Exploded View, Third Row

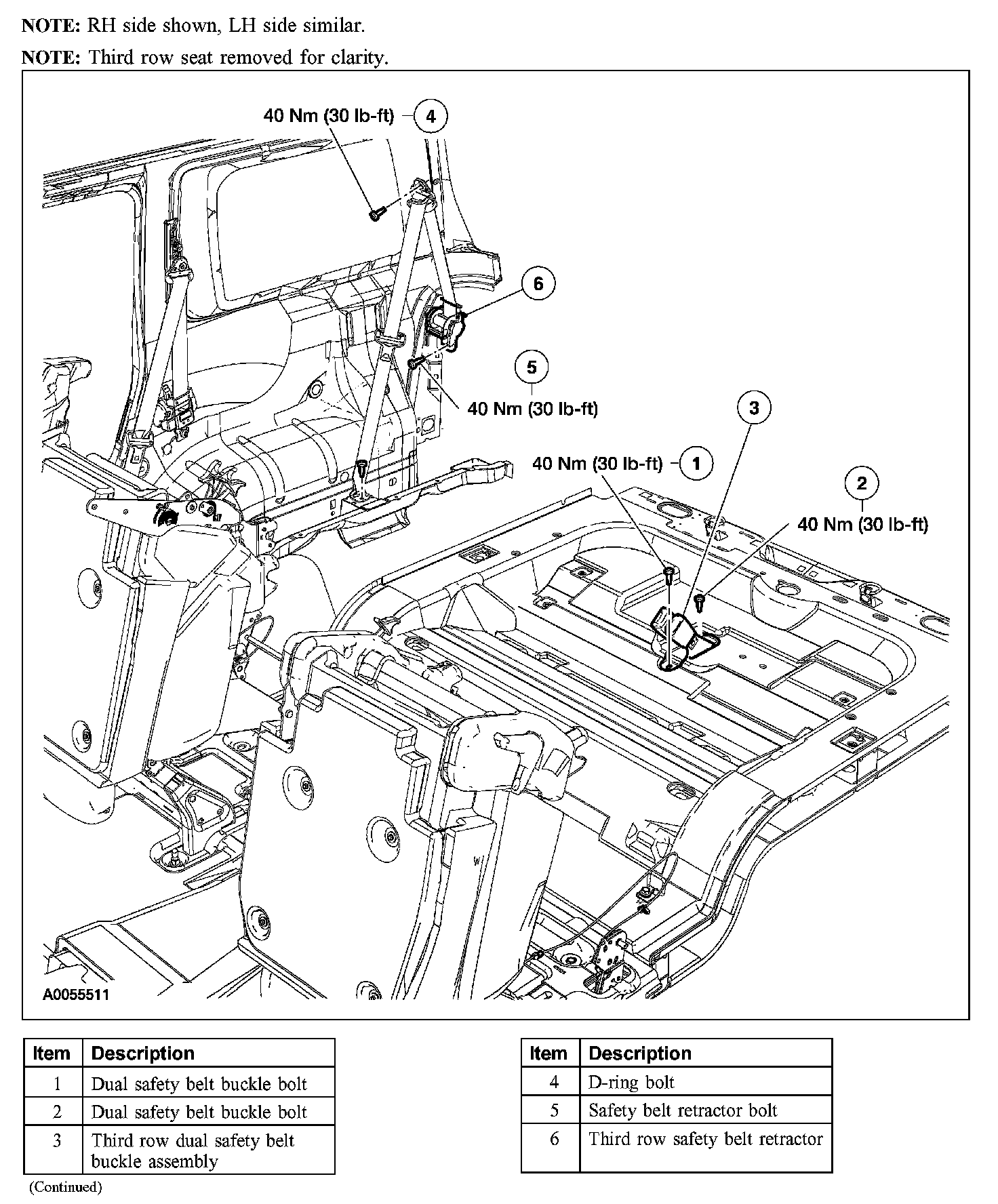

SAFETY BELT SYSTEM - EXPLODED VIEW, THIRD ROW







Removal and Installation
1. For additional information, refer to the procedures.
