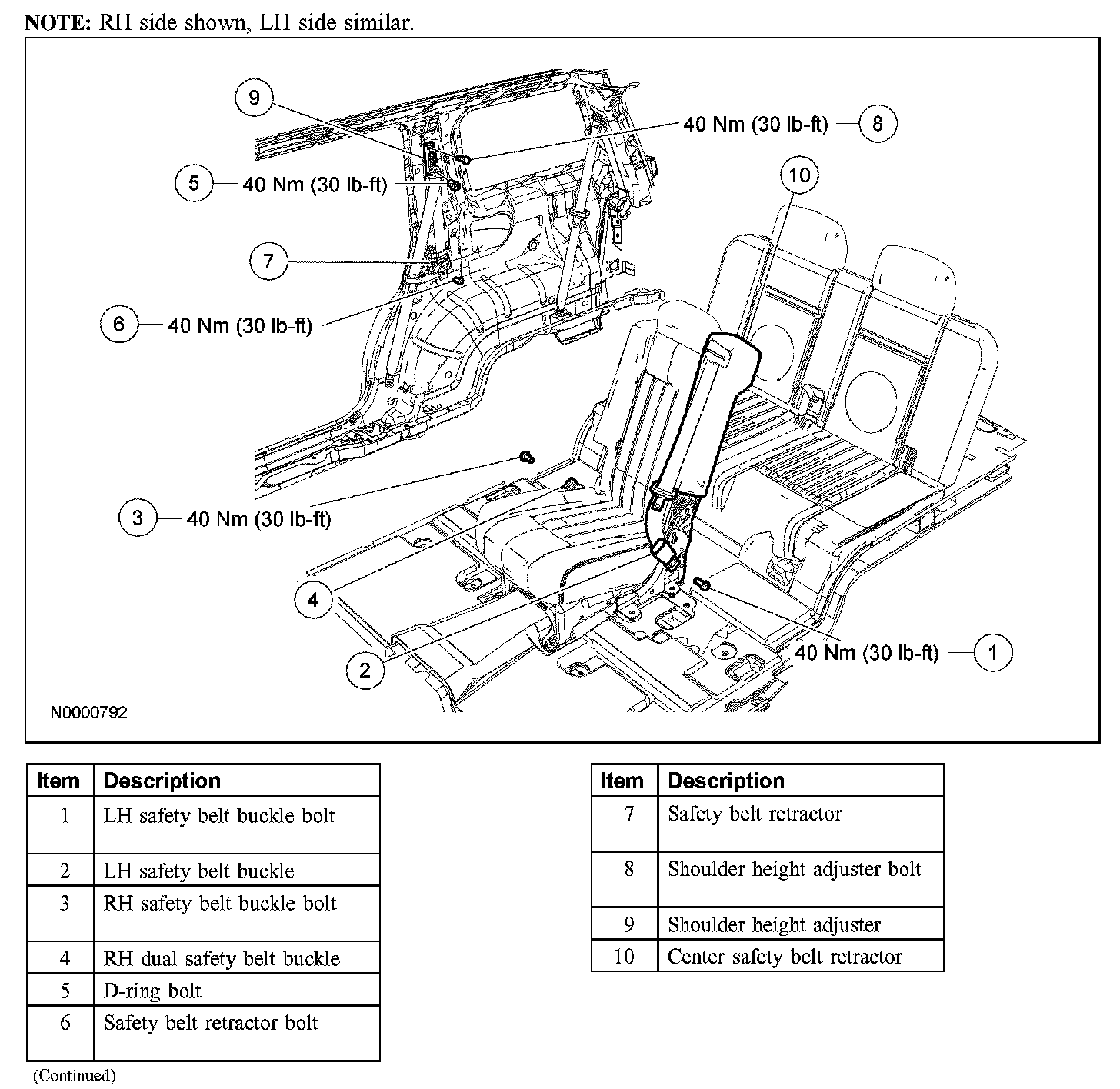

Safety Belt System - Exploded View, Second Row, 40/20/40

SAFETY BELT SYSTEM - EXPLODED VIEW, SECOND ROW, 40/20/40







Removal and Installation
1. For additional information, refer to the procedures.
