Safety Belt System - Exploded View, Front

SAFETY BELT SYSTEM - EXPLODED VIEW, FRONT

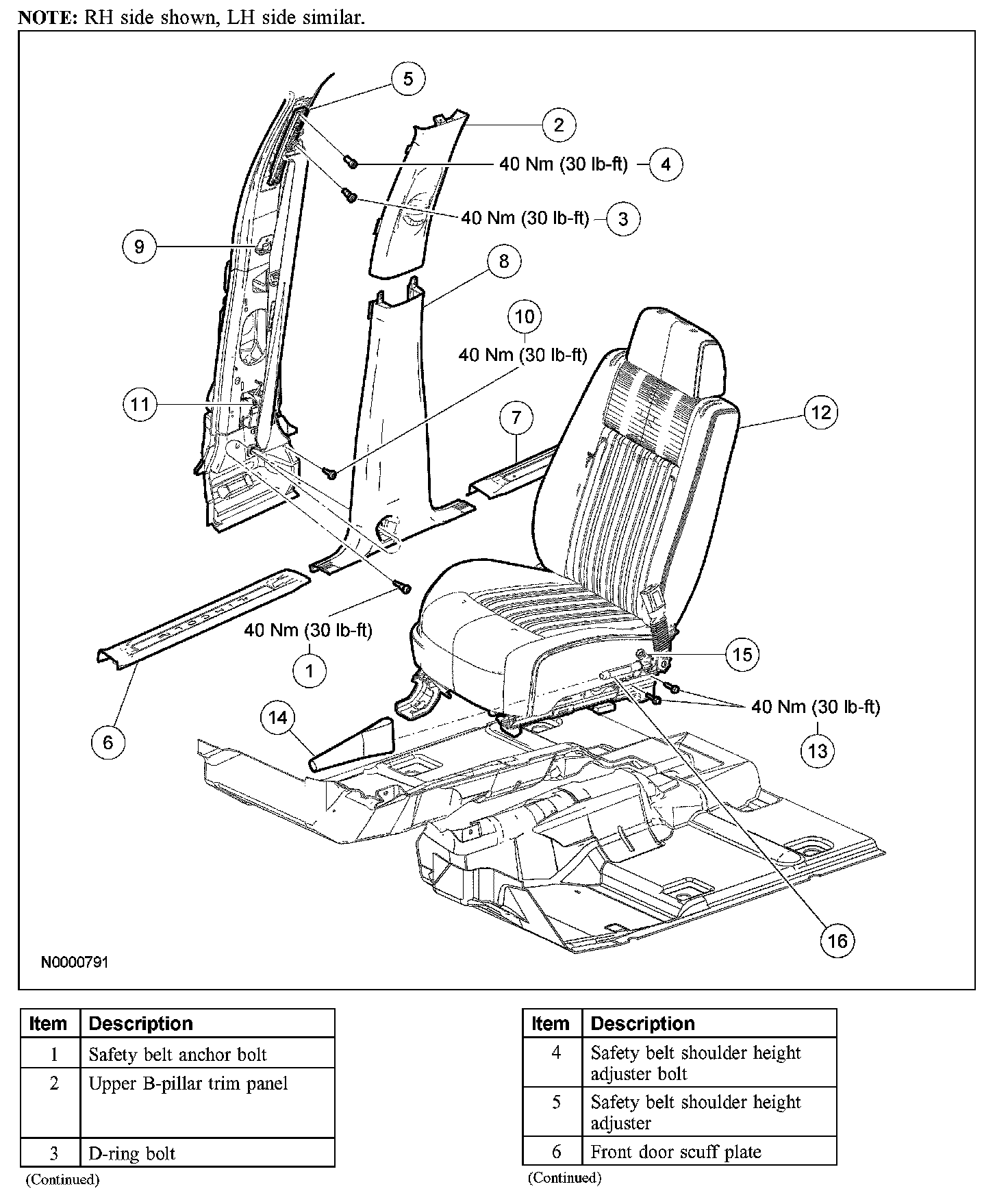

Part 1:

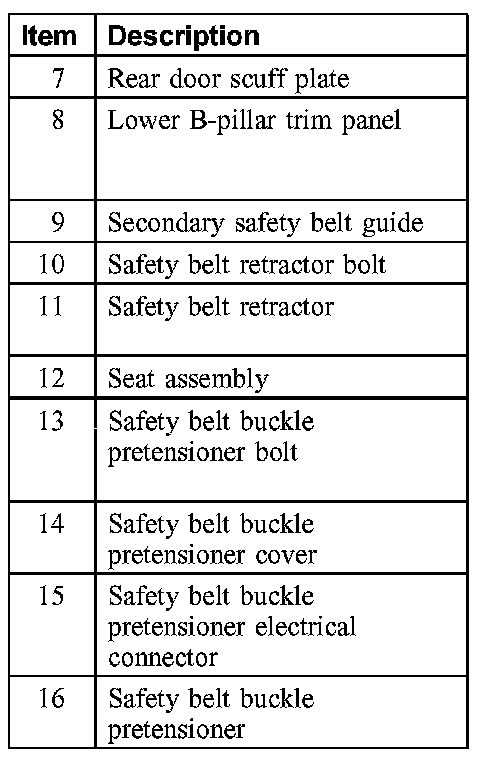

Part 2:






Removal and Installation
1. For additional information, refer to the procedures.
