Air Cleaner Housing: Service and Repair

AIR CLEANER

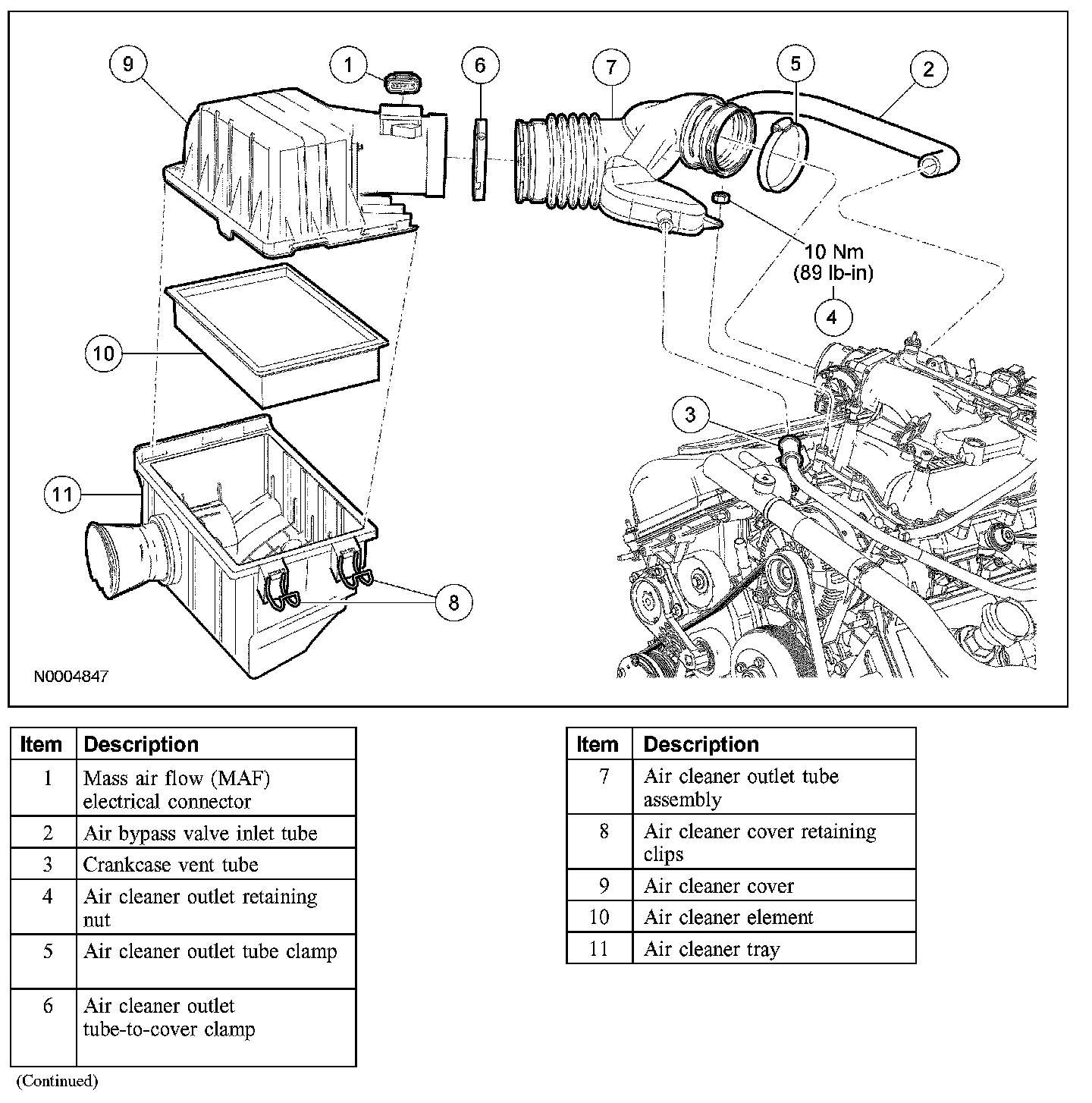

Exploded Views

Removal and Installation
1. Disconnect the mass air flow (MAF) electrical connector.
2. Disconnect the air bypass valve inlet tube.
3. Disconnect the crankcase vent tube from the air cleaner outlet tube.
4. Remove the air cleaner outlet tube retaining nut.
- To install, tighten to 10 Nm (89 lb-in).

5. Loosen the air cleaner outlet tube clamp and disconnect the outlet tube from the throttle body.
6. Remove the air cleaner assembly.
- Pull up and then forward on the air cleaner assembly to release it from the body.

7. To install, reverse the removal procedure.
