Fuel Supply Line: Service and Repair

FUEL LINES

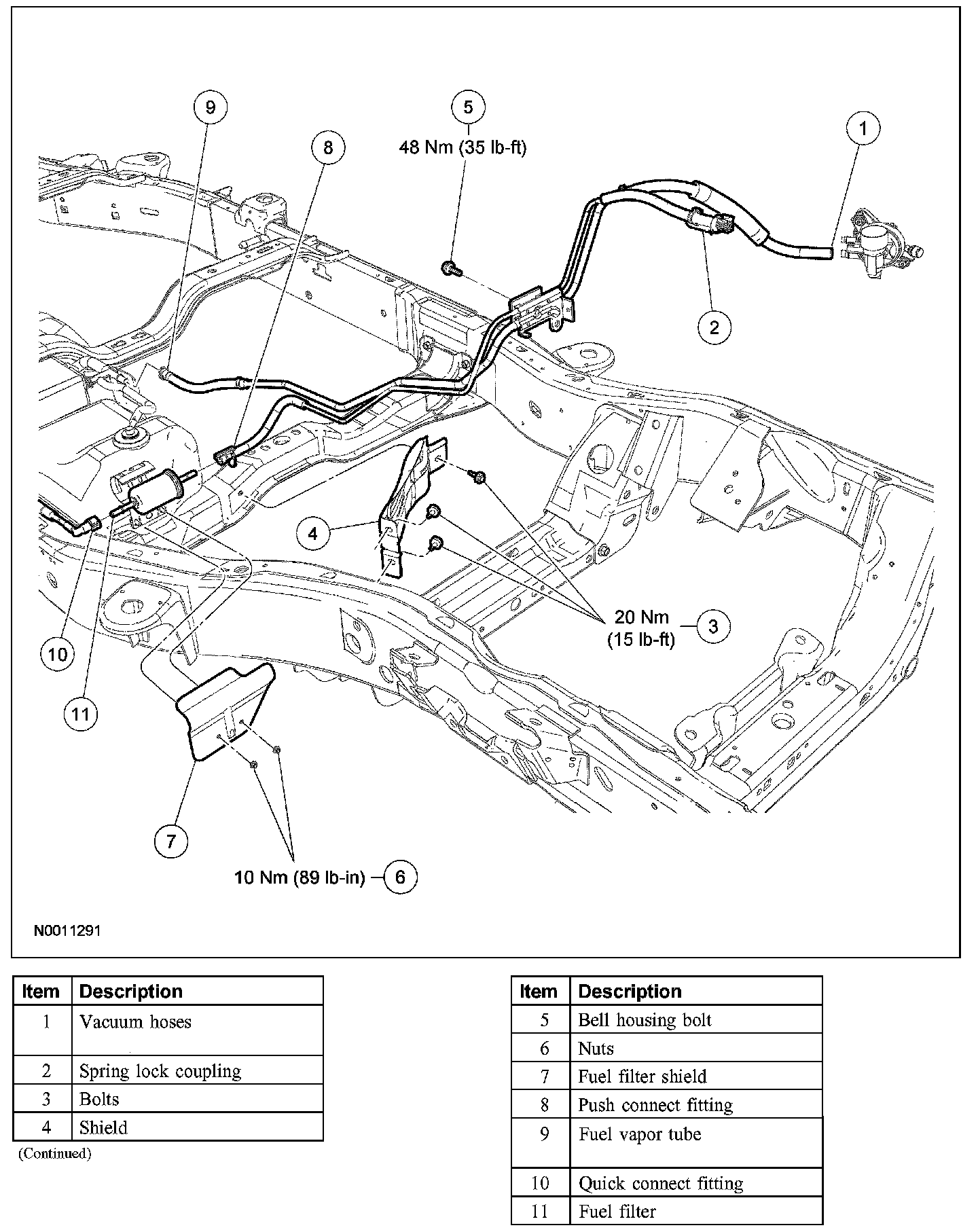

Exploded View

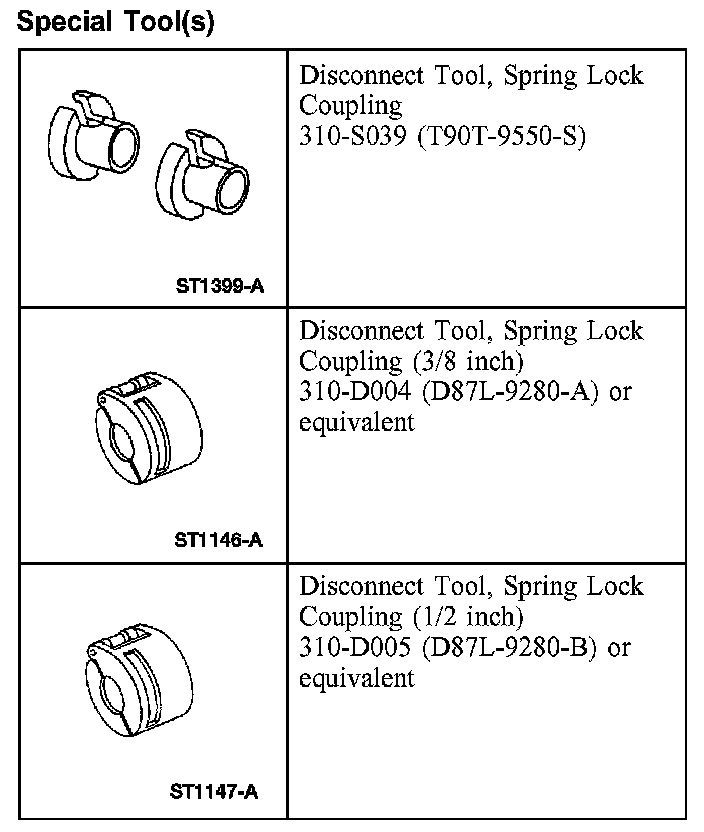

Special Tool(s):

Special Tool(s)

Removal and Installation

WARNING:
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
- Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.

NOTE: During the repair or replacement of fuel-related components, all liquid and vapor fuel openings shall be capped, taped or otherwise appropriately protected to prevent the ingress of dirt or other contamination. All caps, tape and other protective materials shall be removed prior to installation.

1. Disconnect the battery ground cable.
2. Release the fuel system pressure.
3. Disconnect the hose from the evaporative emission (EVAP) canister purge valve.

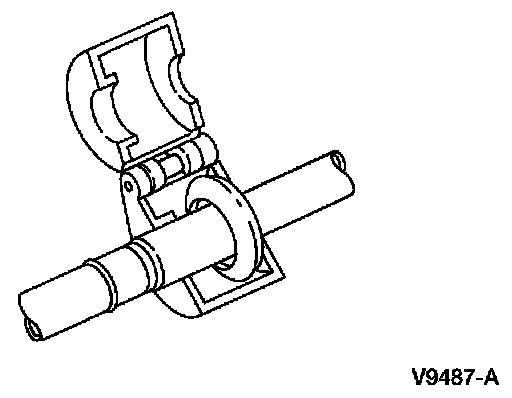

4. Install the spring lock coupling disconnect tool on the fuel supply tube.

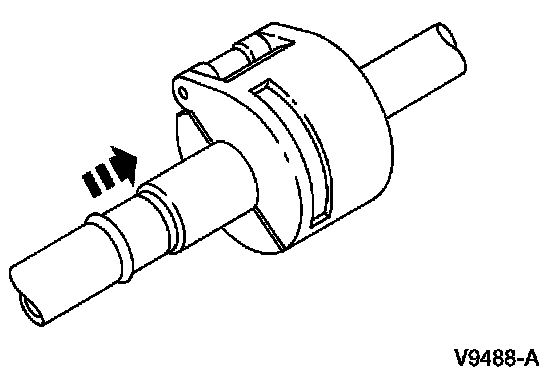

5. Press the spring lock coupling disconnect tool into the open end of the cage.







6. NOTE: When reconnecting the spring lock coupling, clean and inspect the coupling ends and lubricate the O-rings with clean engine oil.

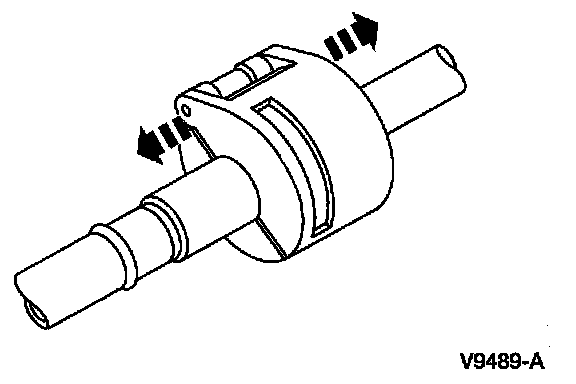

Separate the spring lock coupling.

7. Remove the frame shield bolts.
- To install, tighten to 20 Nm (15 lb-ft).

8. Remove the 3 bolts and the frame shield.
9. Remove the bell housing bolt from the fuel tube bracket.
- To install, tighten to 48 Nm (35 lb-ft).

10. Remove the 2 fuel filter shield nuts and the shield.
- To install, tighten to 10 Nm (89 lb-in).

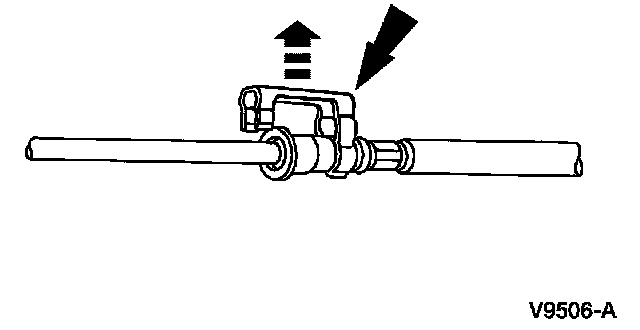

11. Disconnect the safety clip from the fuel tube at the fuel filter.

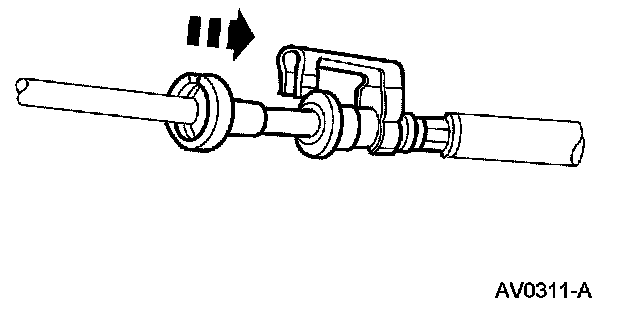

12. Install the special tool and press it into the fitting.







13. NOTE: To install, lubricate the fuel tube fitting with clean engine oil.

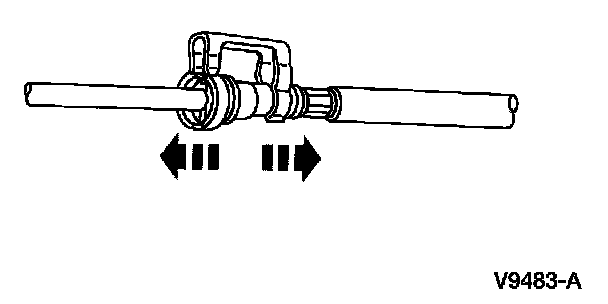

Separate the fittings.
- To install, align the fuel line fitting and press together until a click is heard.
- Pull on the fitting to make sure it is fully engaged, then install the safety clip.

14. Disconnect the fuel vapor tube from the fuel vapor tee and remove the fuel tubes.
15. To install, reverse the removal procedure.
