Positive Crankcase Ventilation Valve: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) VALVE







Removal and Installation

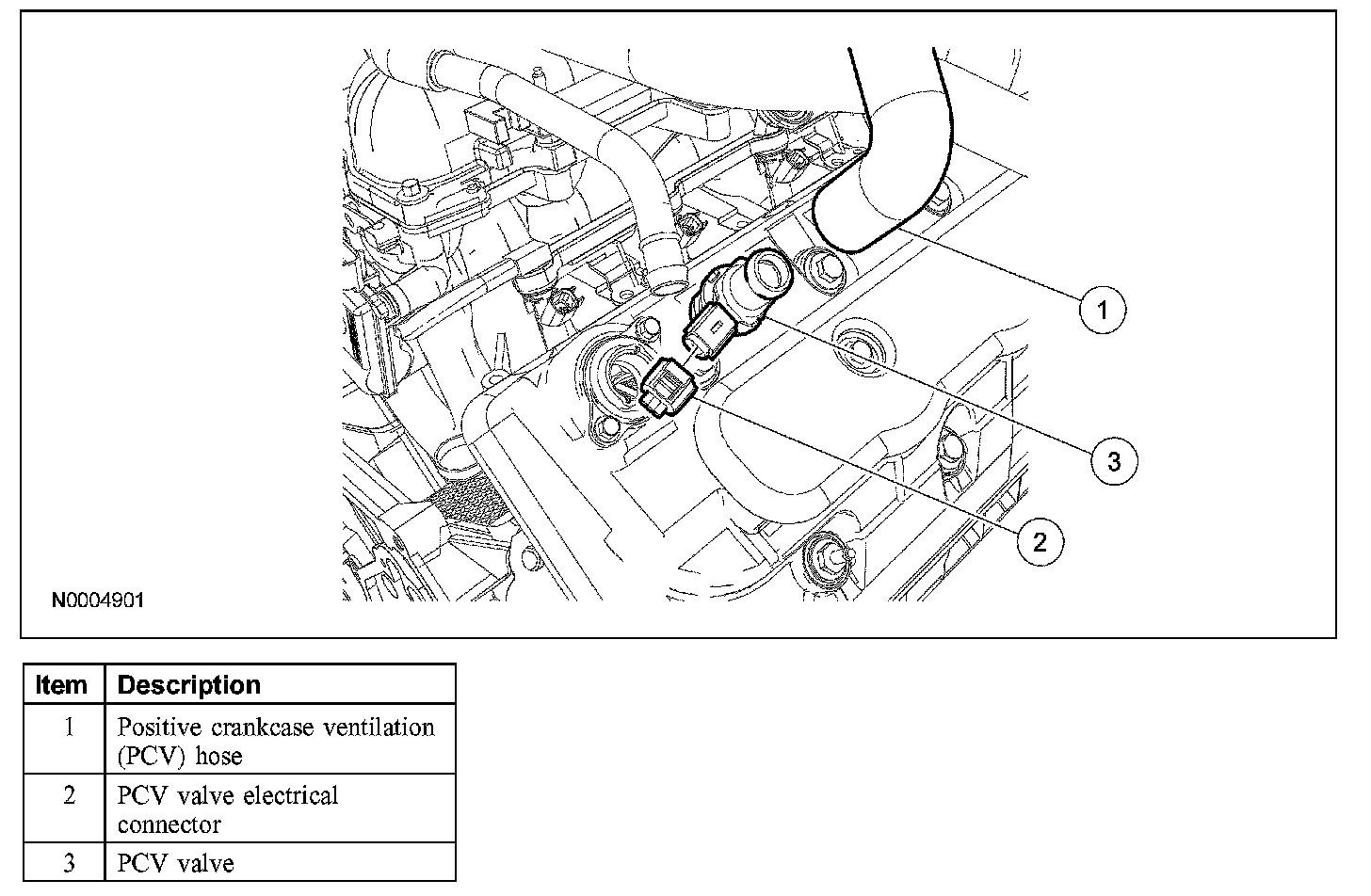

1. Disconnect the PCV hose.
2. Disconnect the PCV valve electrical connector.

3. CAUTION: A new PCV valve must be installed if removed from the cam cover. Damage will occur to the locking mechanism or the PCV valve.

Remove the PCV valve.
- Twist the PCV valve counterclockwise to remove the PCV valve from the valve cover.

4. To install, reverse the removal procedure.
