Idle Speed/Throttle Actuator - Electronic: Service and Repair

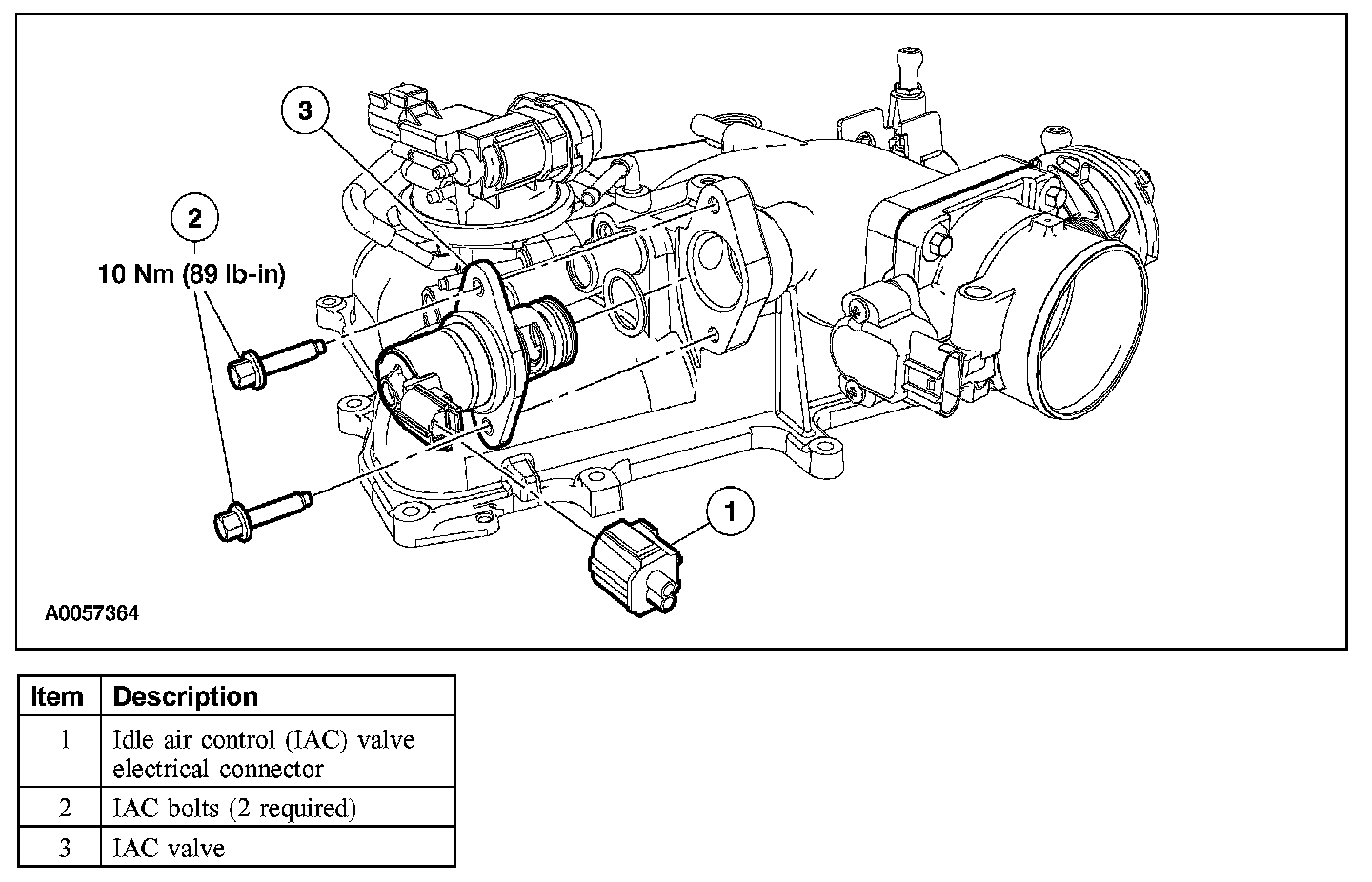

IDLE AIR CONTROL (IAC) VALVE







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the idle air control (IAC) valve electrical connector.
3. Remove the IAC bolts.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
