Test C: Message Center Displays "Warning TPMS System Fault"

Pinpoint Test C: Message Center Displays "WARNING TPMS SYSTEM FAULT"

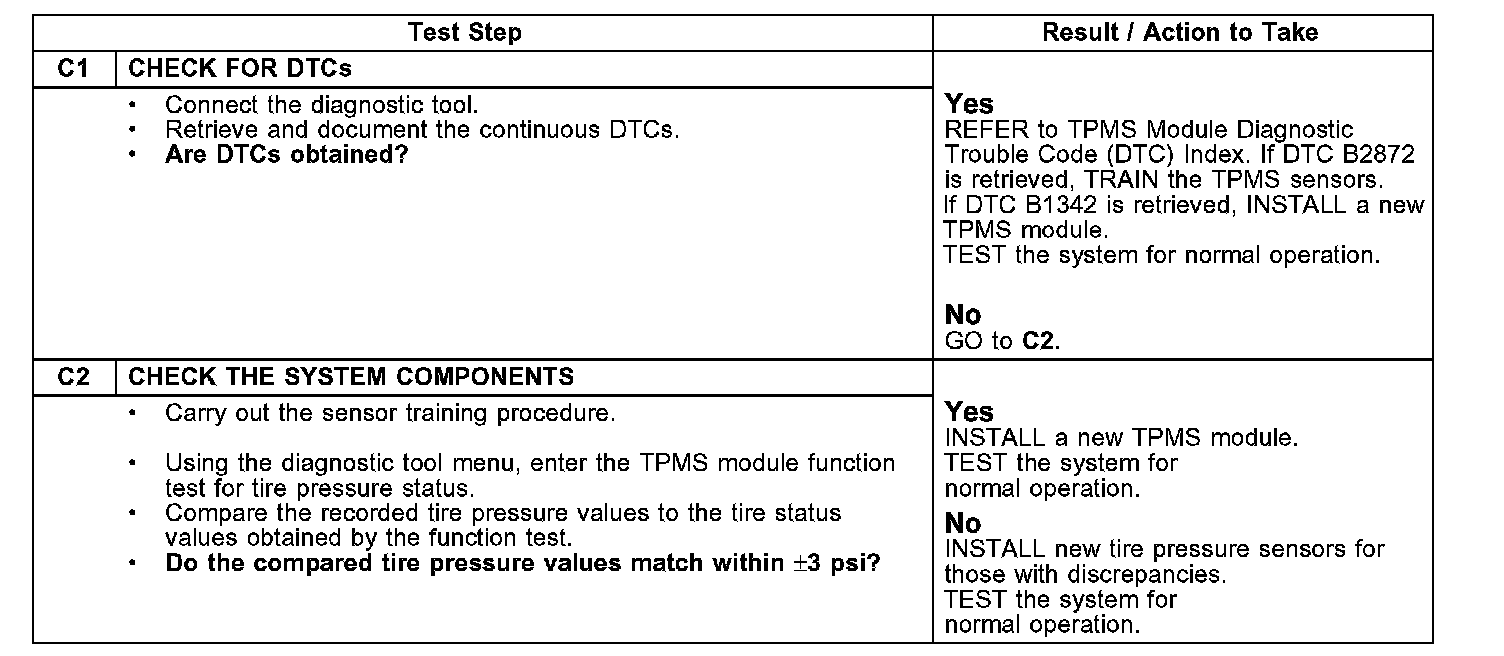

Test C1-C2:

Normal Operation
If there is a fault in the TPMS system, such as a damaged sensor or module, DTCs are set in the TPMS module, the TPMS indicator will illuminate and the message center (if equipped), will display the appropriate message.

Possible Causes
- Low tire pressure(s)
- Tire pressure sensor(s)
- TPMS module DTC(s)
