Drive Belt: Service and Repair

Accessory Drive Belt
1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Loosen the clamp and disconnect the air cleaner outlet tube from the air cleaner cover.
3. Remove the air cleaner assembly.
^ Pull up and then away on the air cleaner assembly to release it from the body.

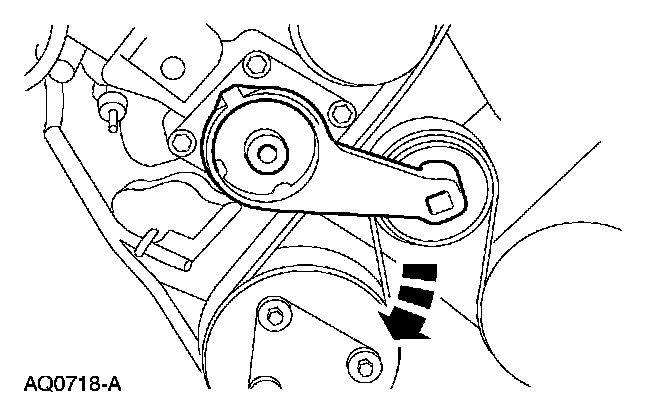

4. Rotate the belt tensioner clockwise and remove the accessory drive belt.
