Lincoln Truck
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Locations
>>

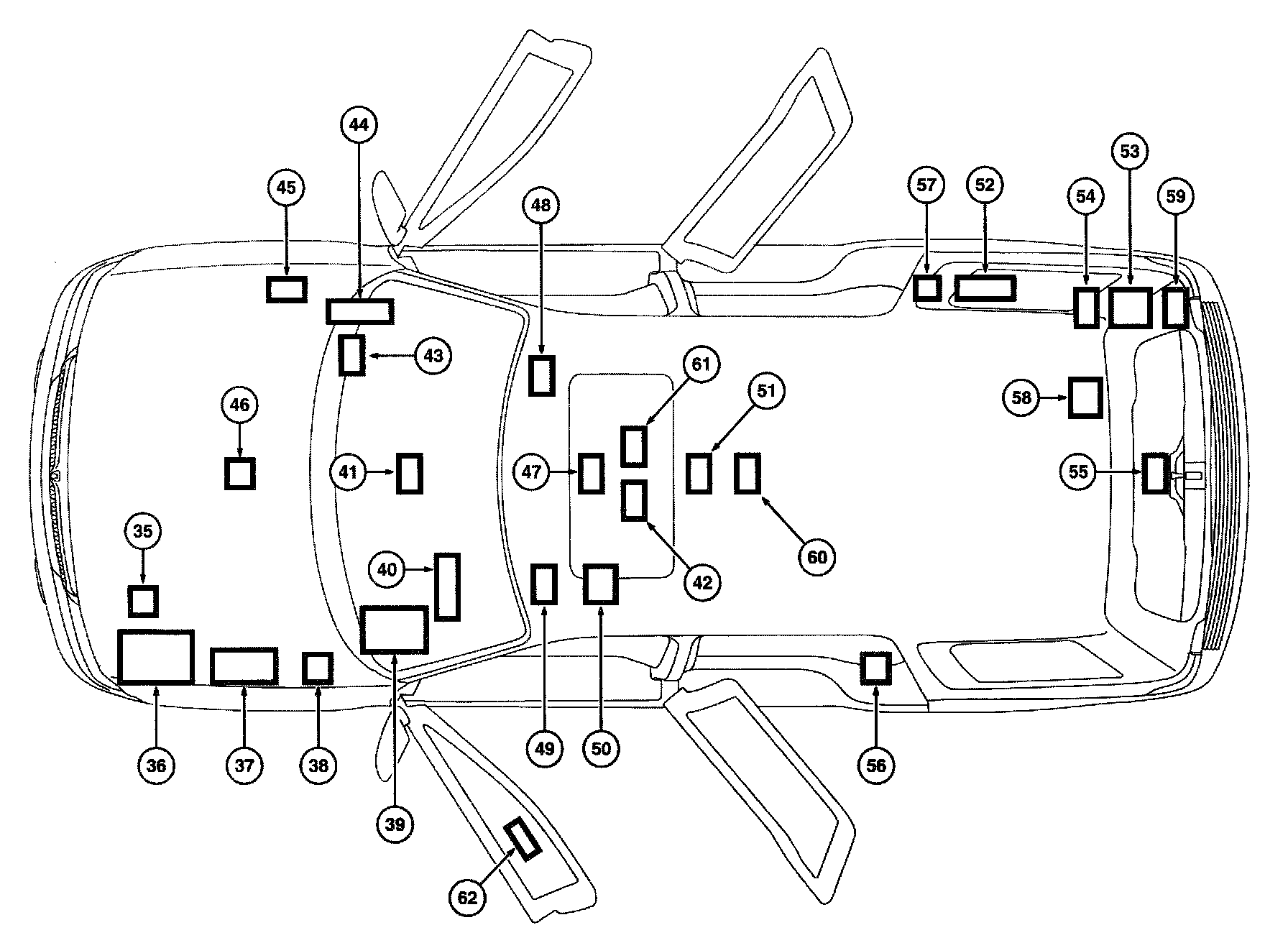

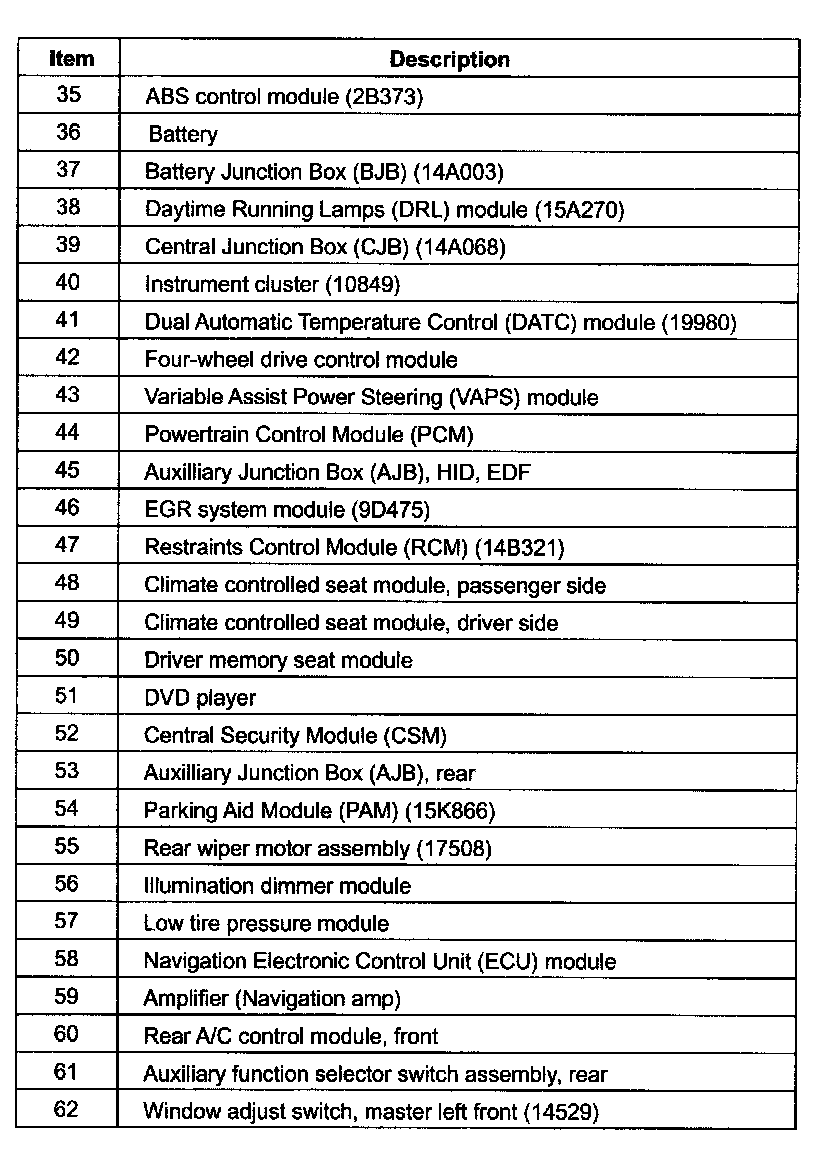

Harness Locations
Harness Locations

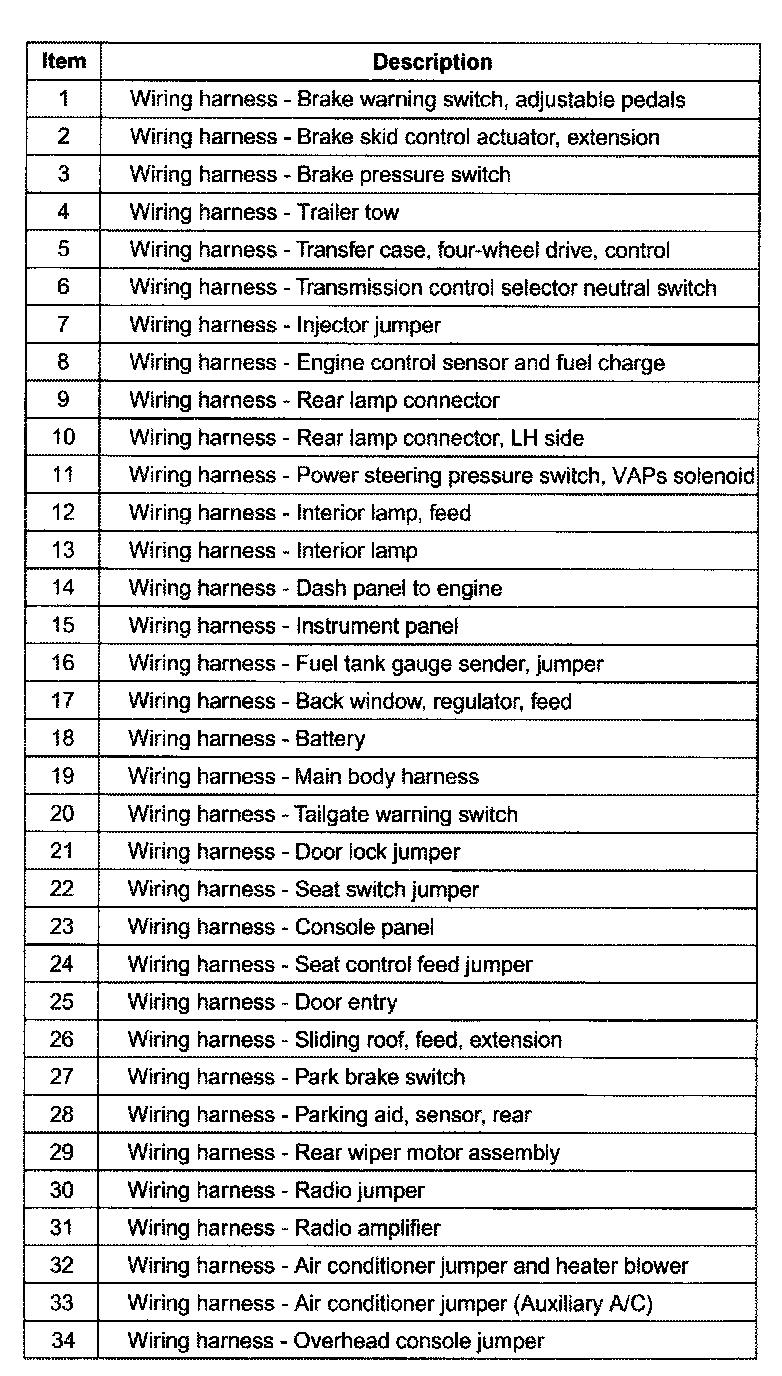

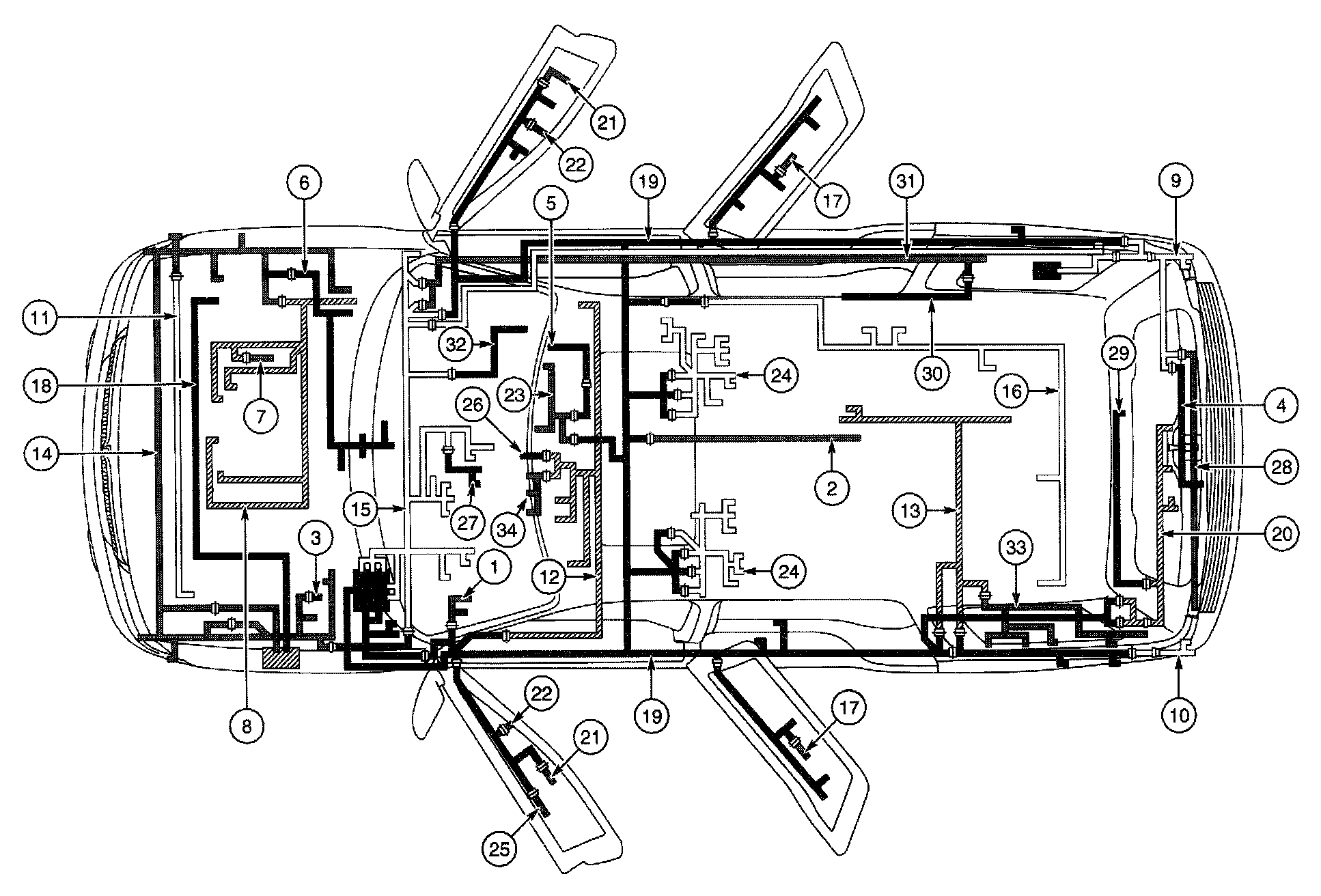

Wiring Harness Overview Part 1:
Wiring Harness Overview Part 2:
Wiring Harness Overview Part 3:
Wiring Harness Overview Part 4:
