Turn Signals: Service and Repair

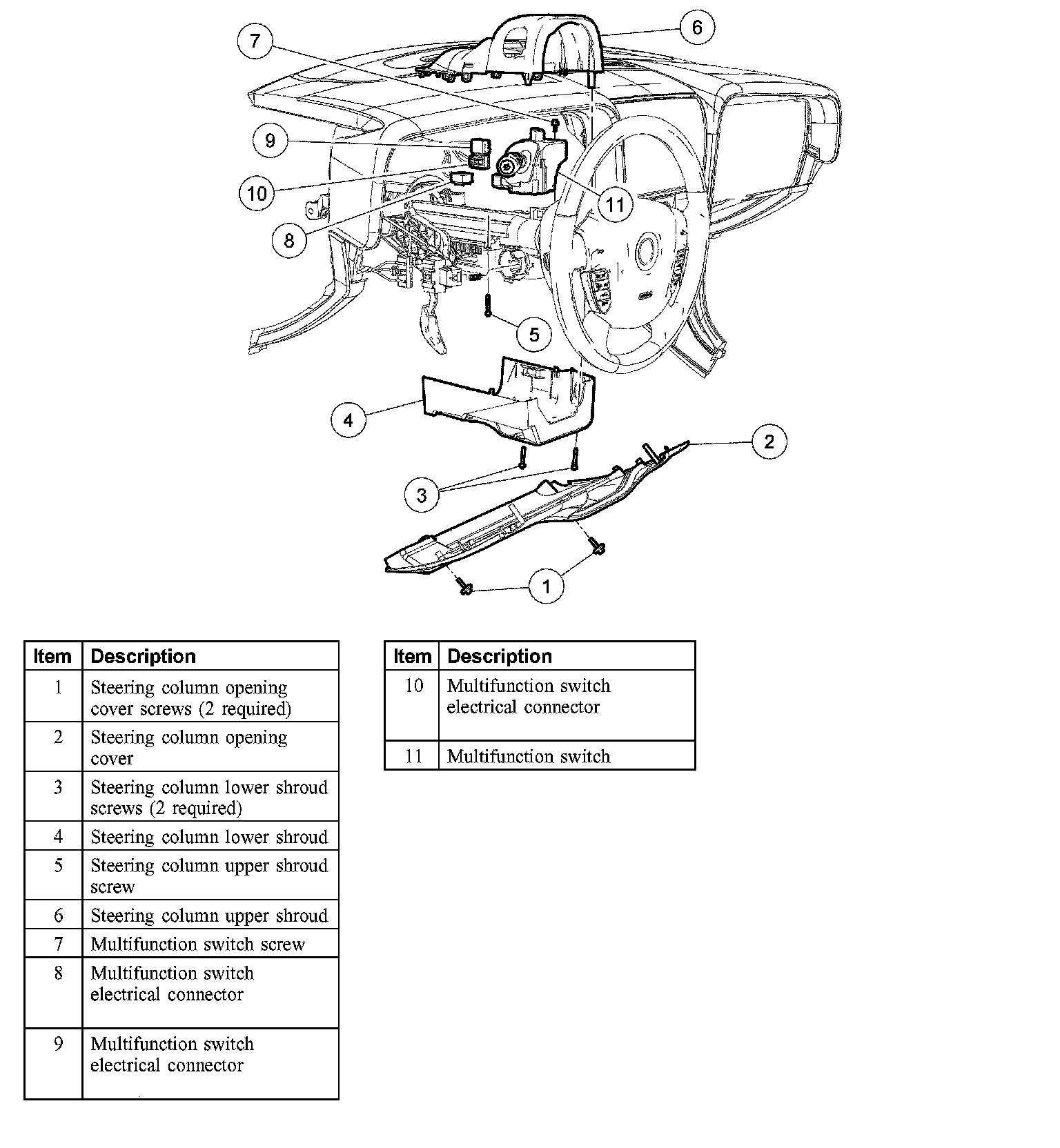

Steering Column Multifunction Switch

Removal and Installation





1. Disconnect the battery. Refer to Battery.
2. Remove the screws and the steering column opening cover.
3. Remove the screws and the steering column lower shroud.
4. Remove the steering column upper shroud screw.





5. Remove the steering column upper shroud.

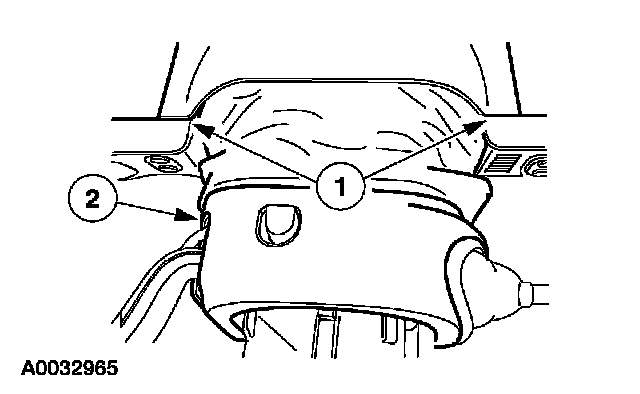

1. Release the retaining clips and rotate the upper steering column trim panel out of the instrument panel.
2. Remove the steering column upper shroud.

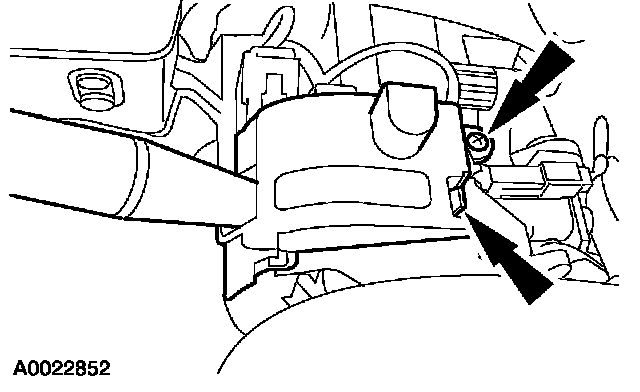

6. Remove the multifunction switch screw.
^ Press the release tab and lift the multifunction switch upwards.
7. Disconnect the 3 multifunction switch electrical connectors.
8. Remove the multifunction switch.
9. To install, reverse the removal procedure.
