Horn: Service and Repair

HORN

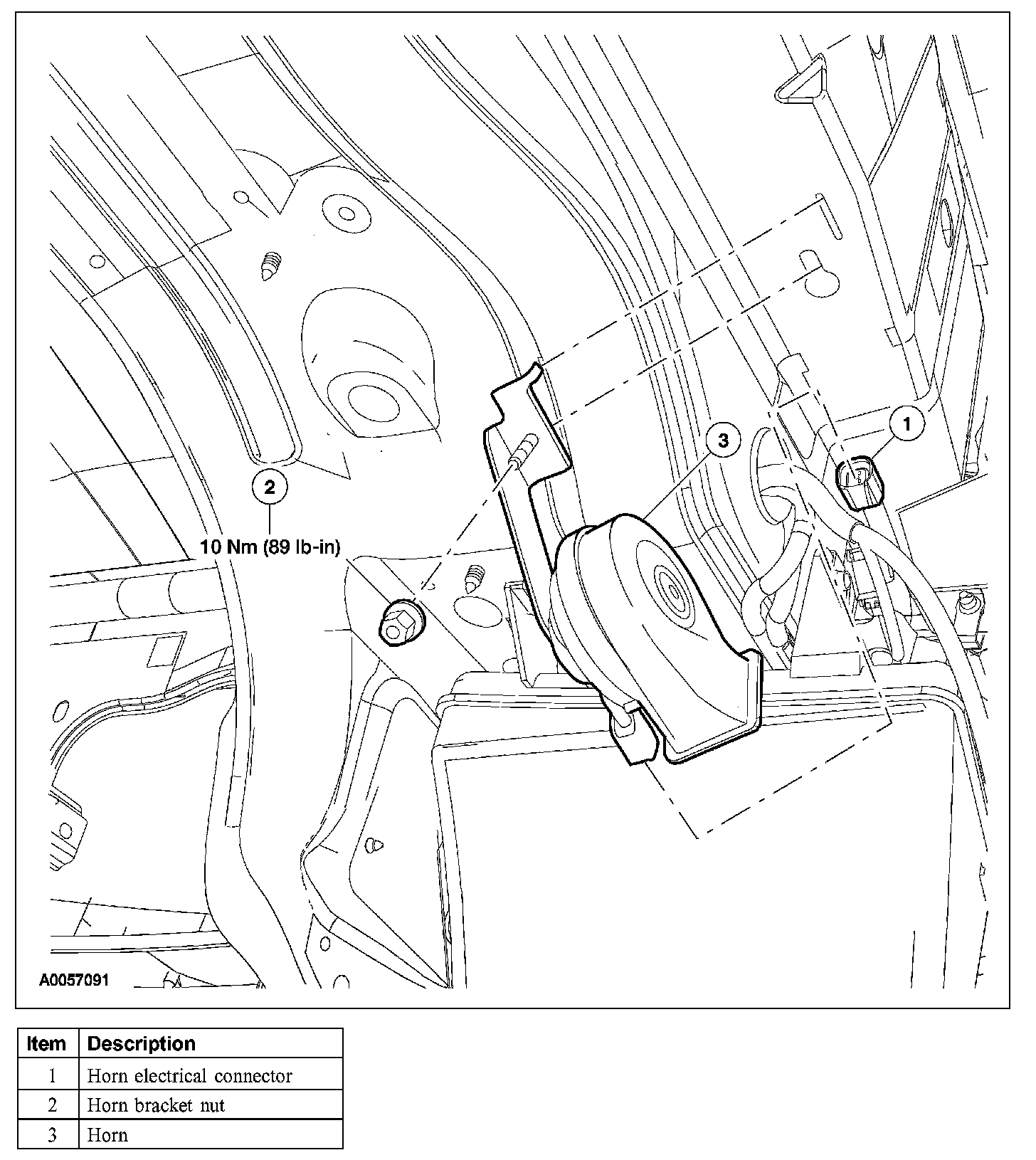

Removal and Installation
1. Remove the fender splash shield.

2. NOTE: Right side is shown, left side is similar.

Disconnect the horn electrical connector.

3. Remove the nut and remove the horn.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
