Headlamp Assembly

HEADLAMP ASSEMBLY

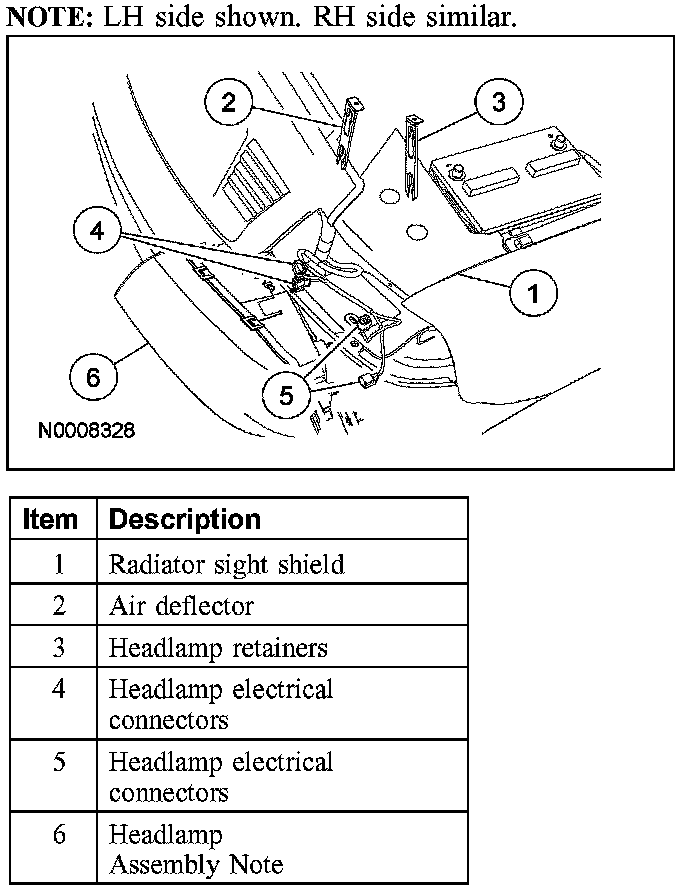

Removal and Installation

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

1. Remove the radiator sight shield.
2. Remove the air deflector.
3. Remove both headlamp retainers.
4. Disconnect the electrical connectors.
5. Remove the headlamp assembly.
6. To install, reverse the removal procedure.
