Test H: The Illuminated Entry Is Inoperative When Using The Remote Keyless Entry (RKE) Transmitter/Keyless Entry Keypad

PINPOINT TEST H: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER/KEYLESS ENTRY KEYPAD

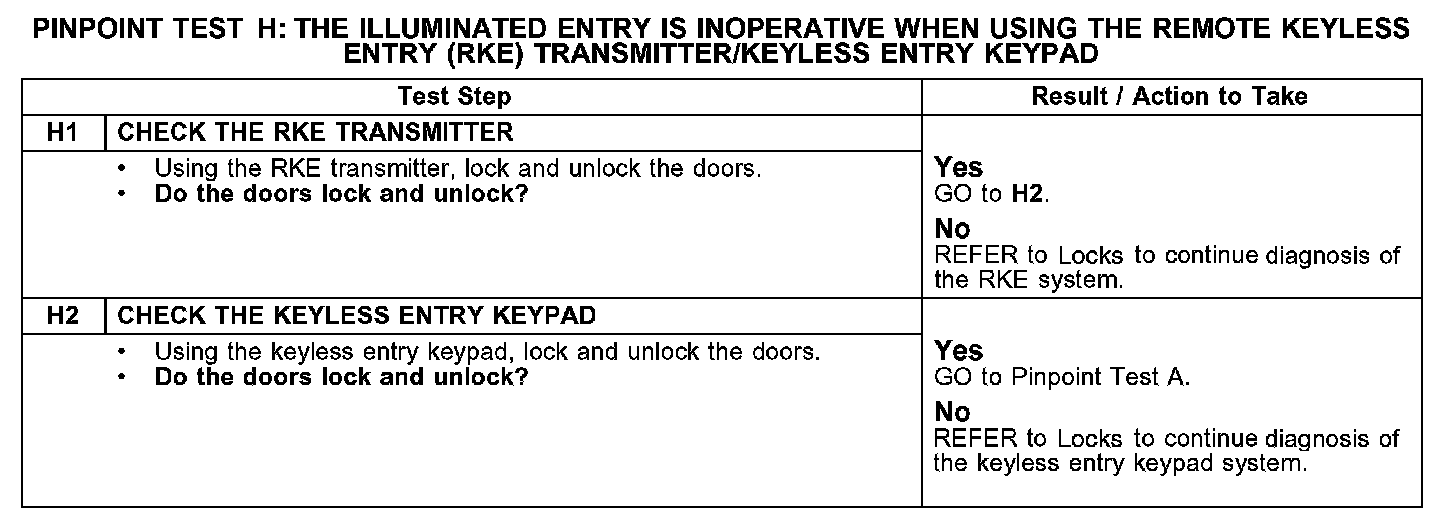

H1-H2:

Normal Operation
When the vehicle security module receives an UNLOCK request from the RKE transmitter or the keyless entry keypad, it sends a lamps ON signal to the instrument cluster through the UBP network. The instrument cluster provides power to the interior lamps through circuit 53 (BK/LB).

Possible Causes
- vehicle security module
- instrument cluster
- circuit 53 (BK/LB)
