Home >> Lincoln Truck >> 2005 >> Aviator AWD V8-4.6L DOHC VIN H >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Front Row Dome/MAP Lamp C931

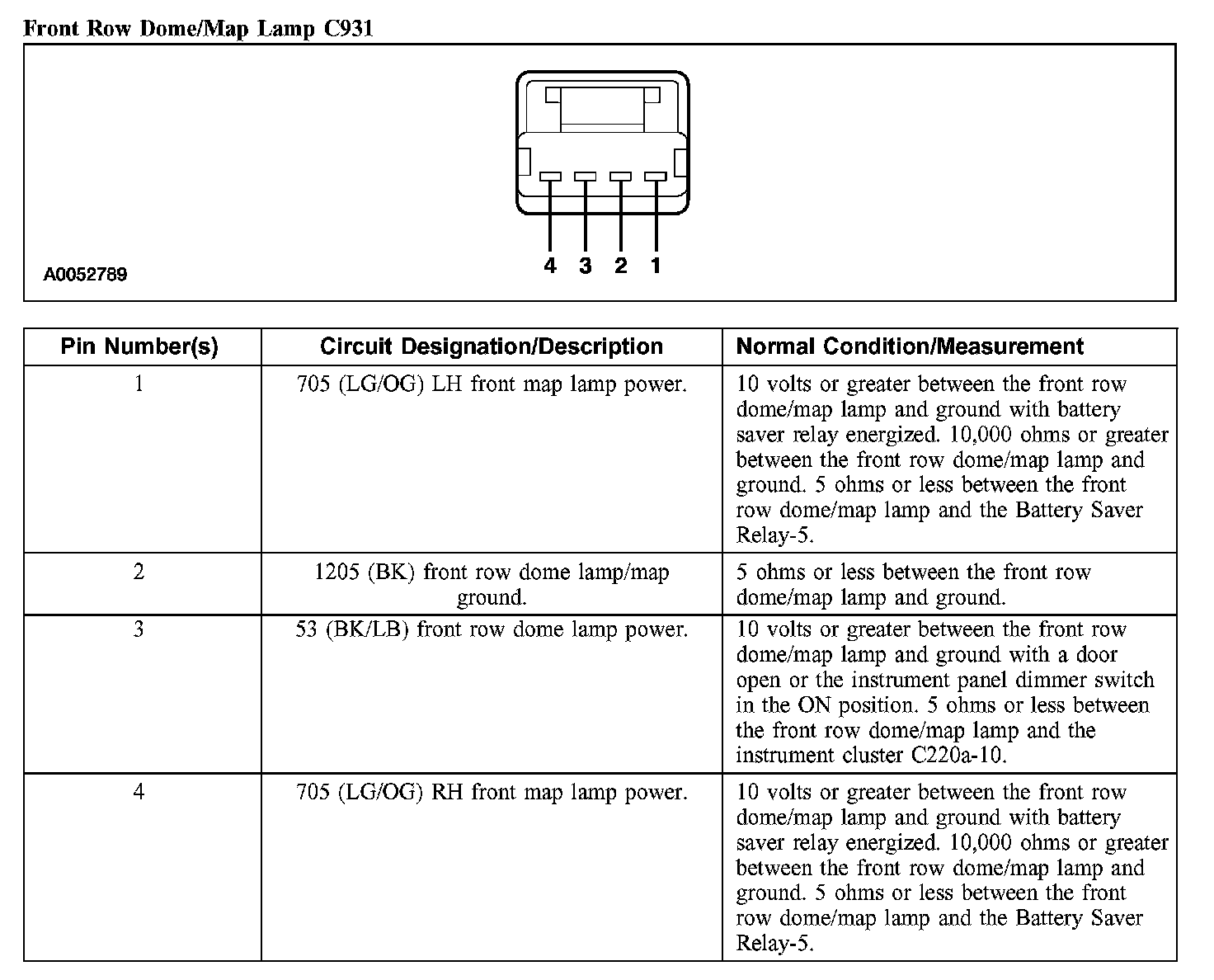

Front Row Dome/MAP Lamp C931

Front Row Dome/Map Lamp C931:
