Brake Light Switch: Service and Repair

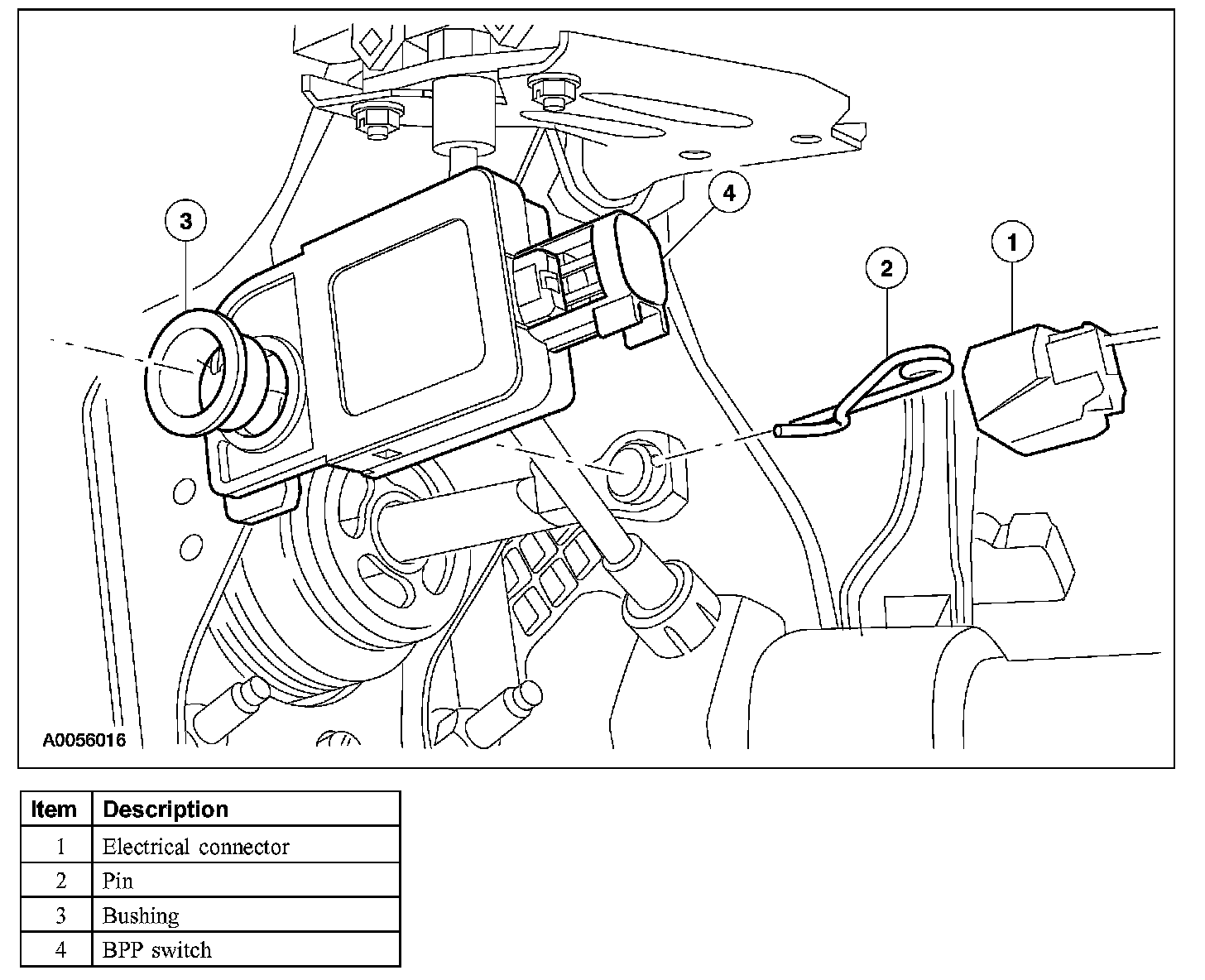

BRAKE PEDAL POSITION (BPP) SWITCH







Removal and Installation
1. Disconnect the electrical connector.
2. Remove the pin.
3. Remove the bushing.
4. Remove the BPP switch.
5. To install, reverse the removal procedure.
