Ambient Light Sensor: Service and Repair

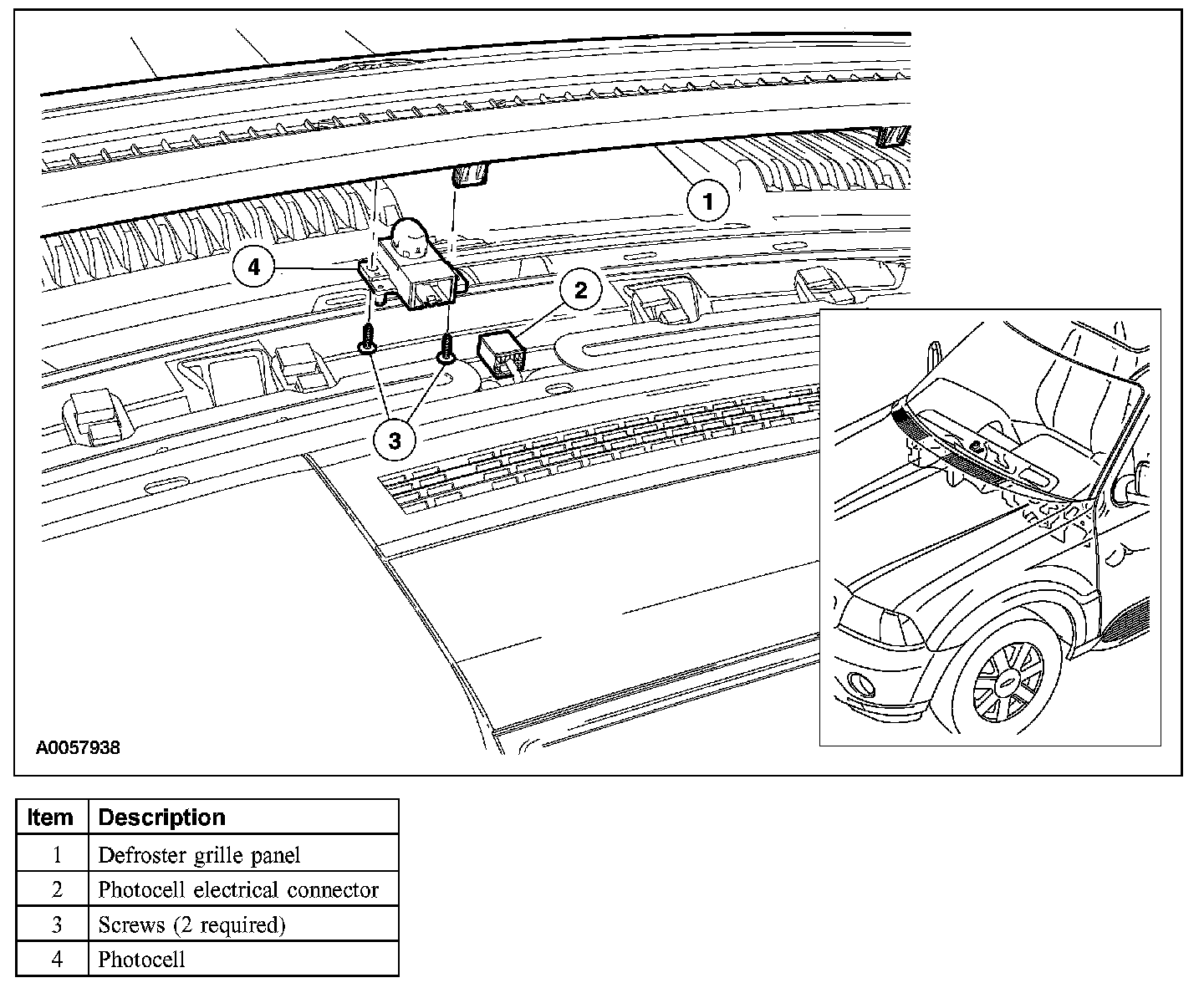

PHOTOCELL







Removal and Installation
1. Remove the defroster grille panel.
2. Disconnect the electrical connector.
3. Remove both screws.
4. Remove the photocell.
5. To install, reverse the removal procedure.
