Lincoln Truck
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster and Panel Illumination
>>
Connector Circuit Reference
>>
Window Control Switch
>>
Power Window Master Control Switch C3193a
Power Window Master Control Switch C3193a

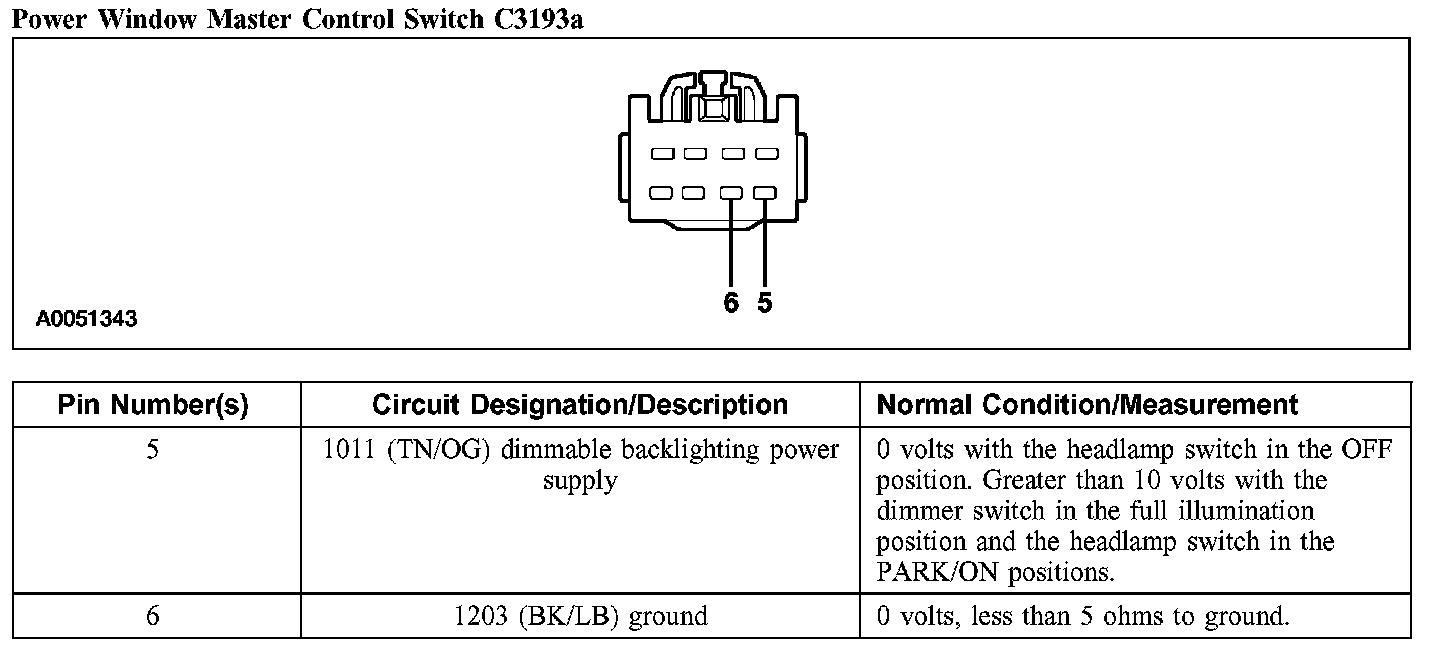

Power Window Master Control Switch C3193a:
