Test C: The Compass Is Inaccurate

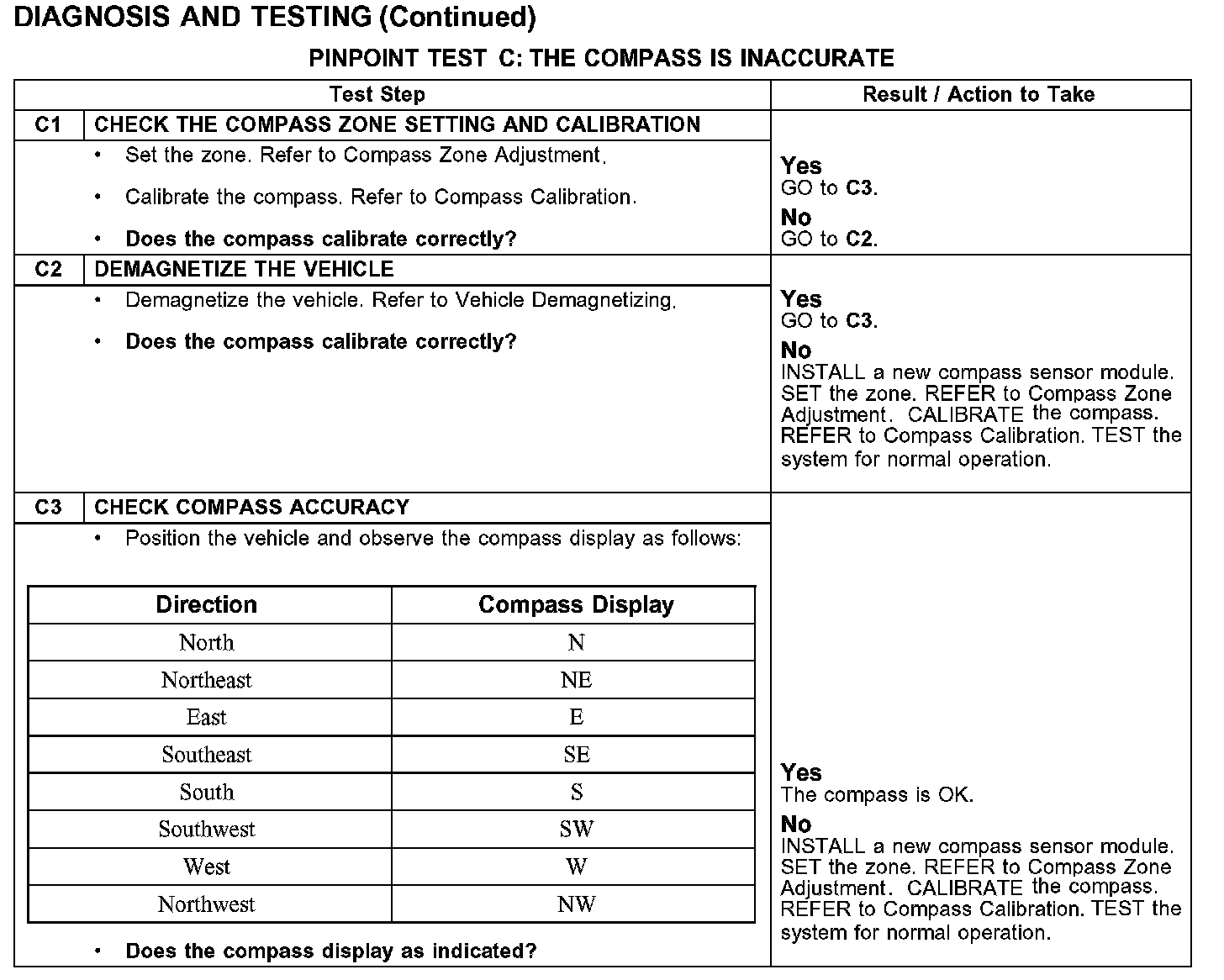

PINPOINT TEST C: THE COMPASS IS INACCURATE

C1-C3:

Normal Operation
The compass sensor module communicates vehicle direction to the instrument cluster to be displayed in the message center.

Possible Causes
- compass sensor module
- vehicle is magnetized
- incorrect zone setting
- calibration
