Lincoln Truck
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Temperature Blend Door Actuator (RH) C2092
Temperature Blend Door Actuator (RH) C2092

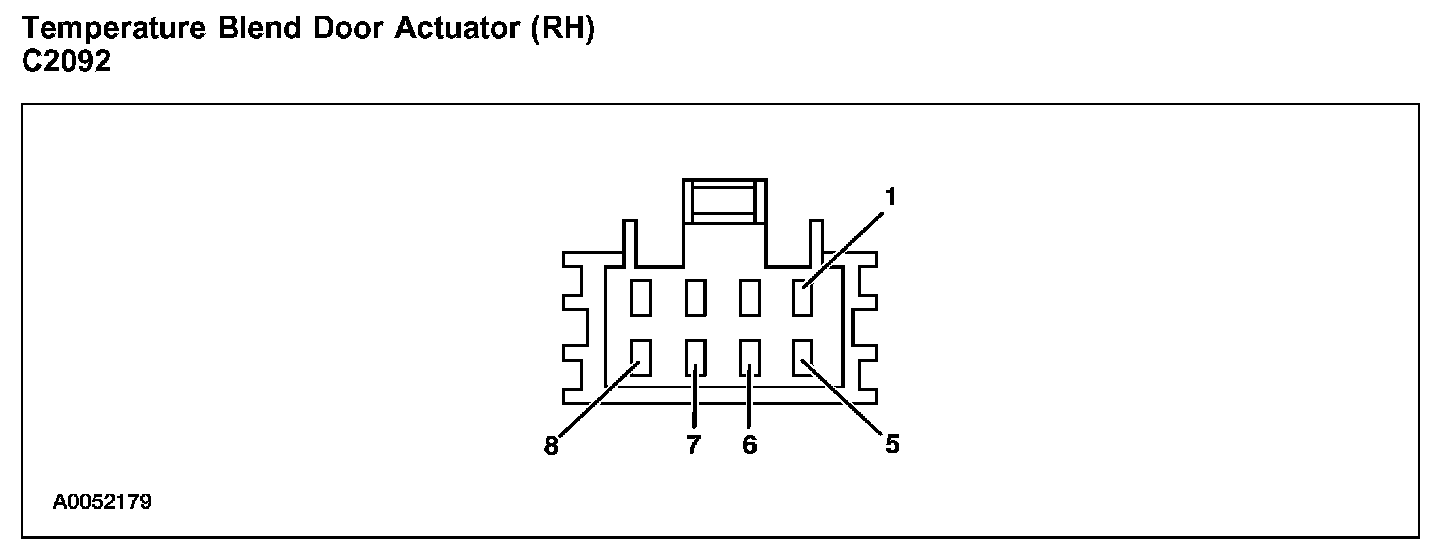

Temperature Blend Door Actuator (RH) C2092 (Part 1):

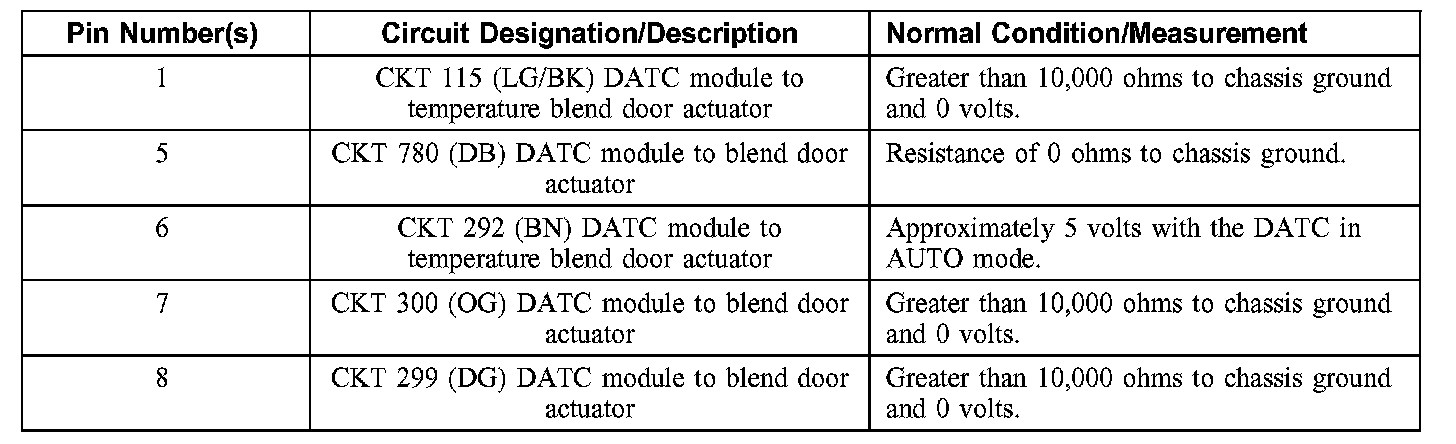

Temperature Blend Door Actuator (RH) C2092 (Part 2):
