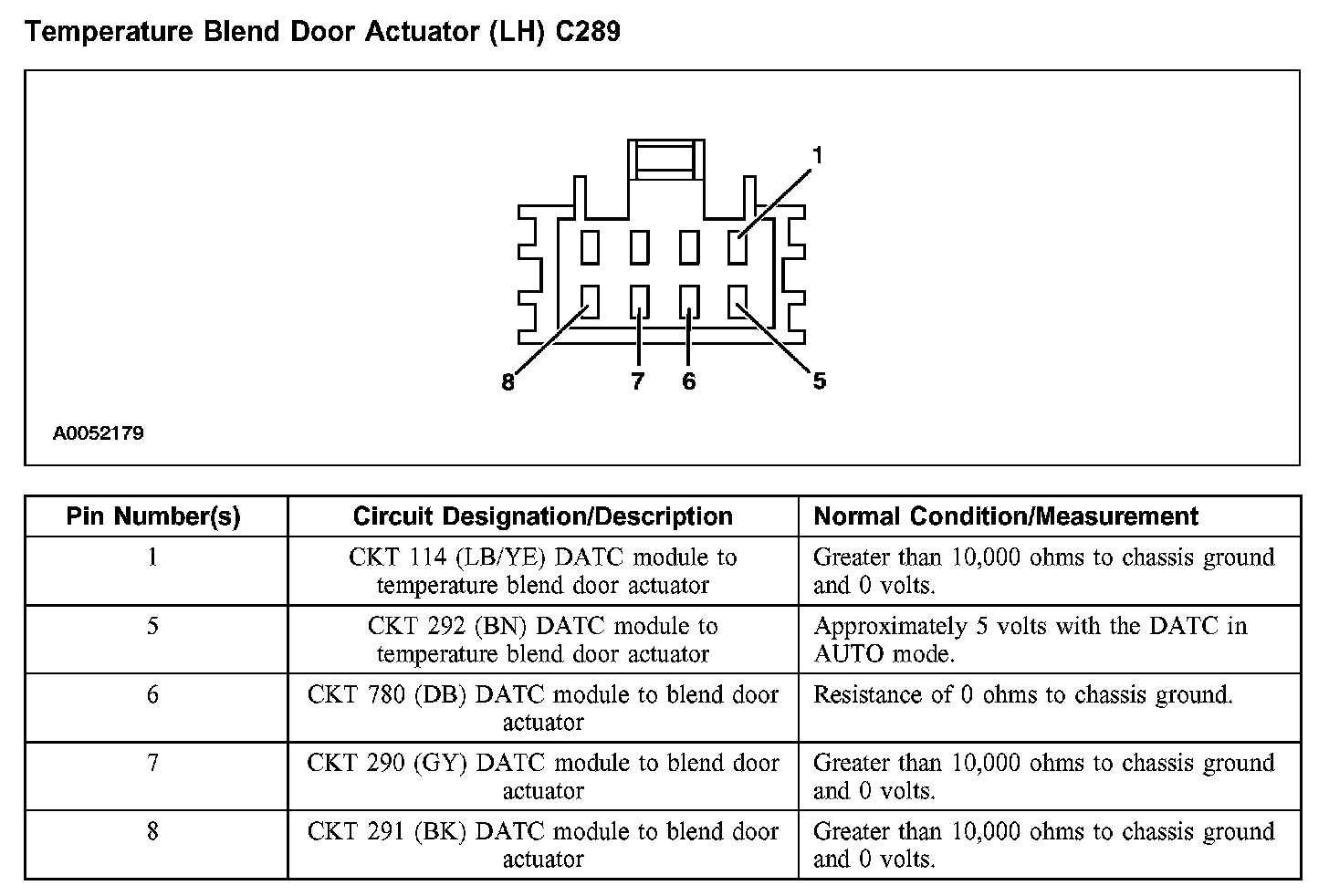

Temperature Blend Door Actuator (LH) C289
Temperature Blend Door Actuator (LH) C289
Temperature Blend Door Actuator (LH) C289:
