Lincoln Truck
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Auxiliary Temperature Blend Door Actuator C3019

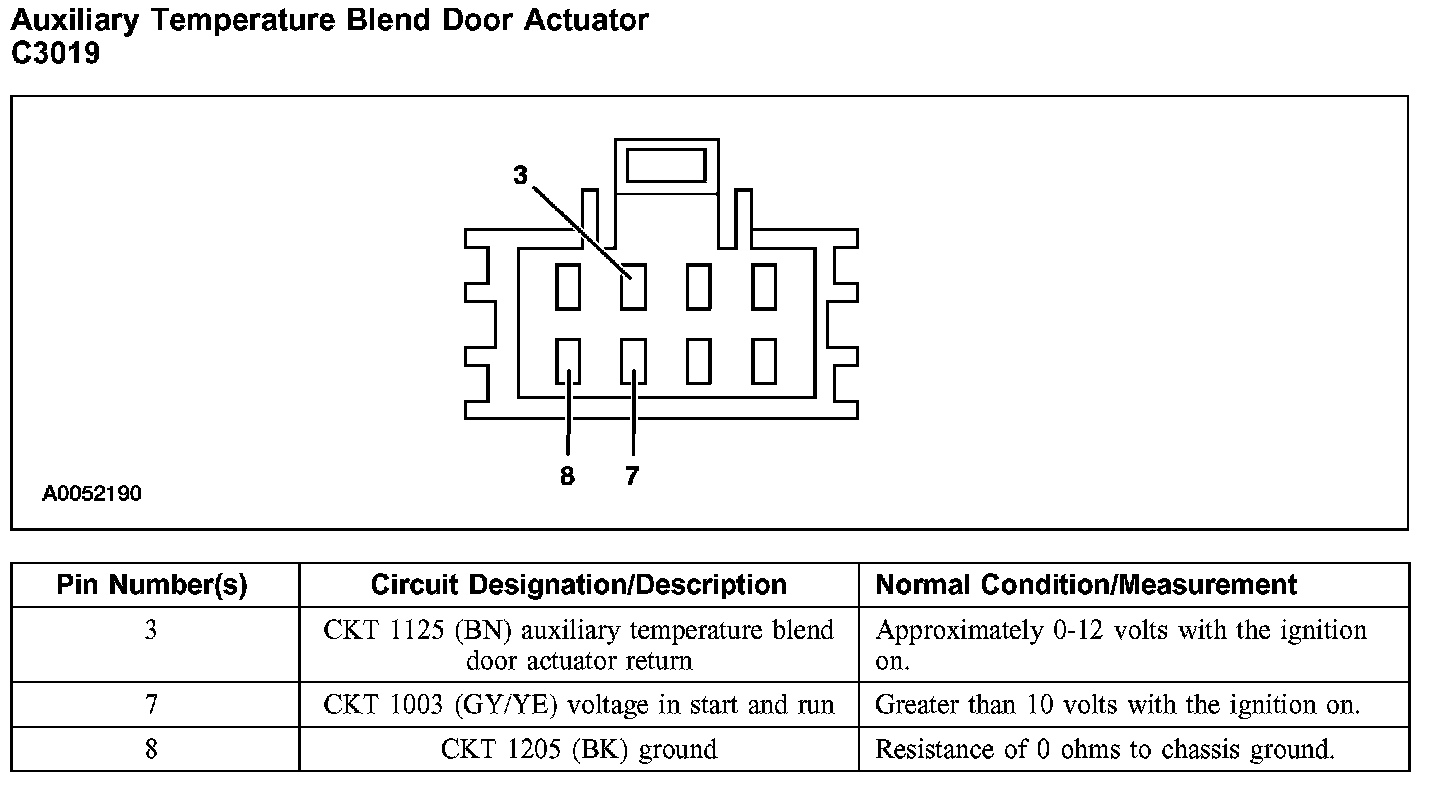

Auxiliary Temperature Blend Door Actuator C3019
Auxiliary Temperature Blend Door Actuator C3019:
