Plenum Chamber

PLENUM CHAMBER

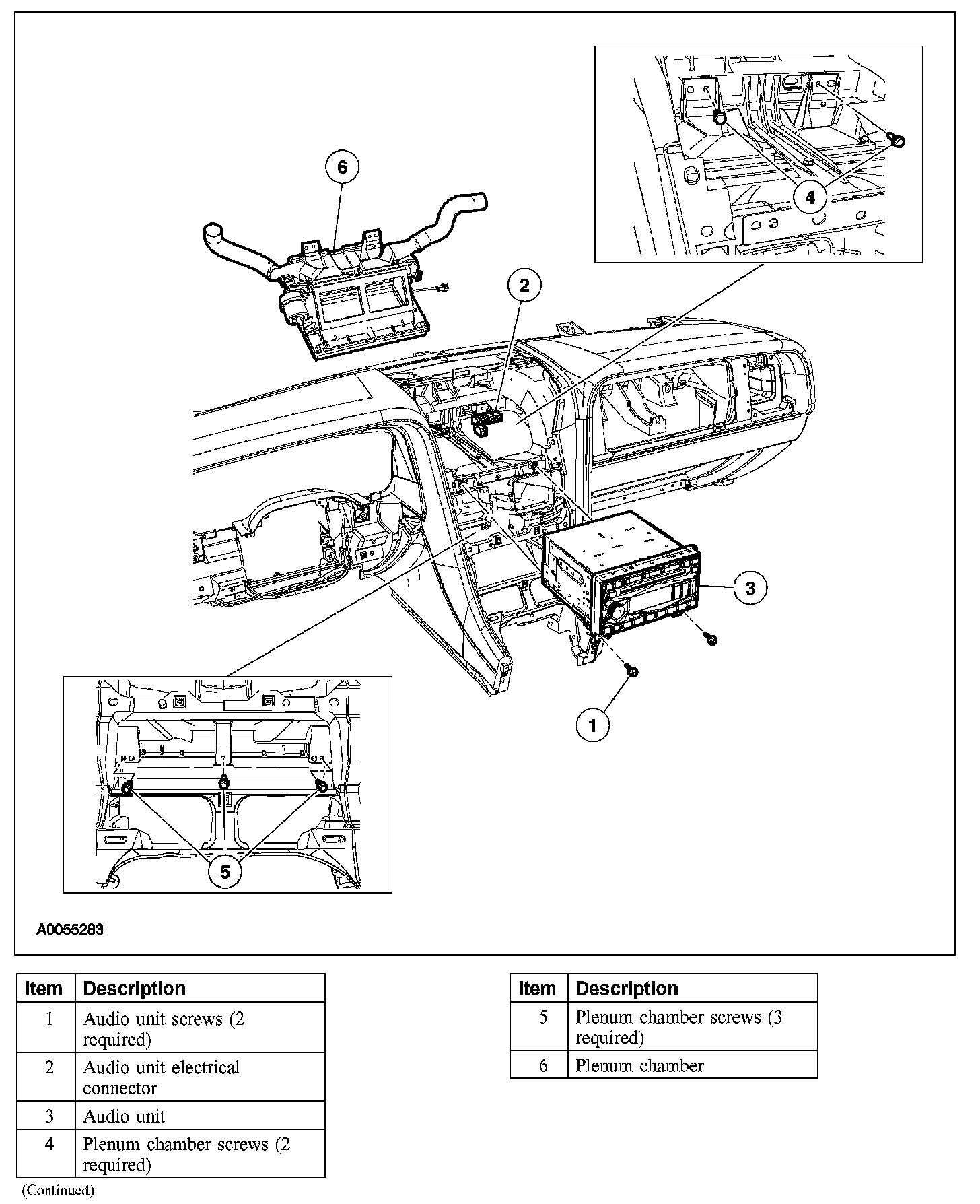

Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

2. Remove the 2 audio unit screws.
3. Remove the audio unit.
- Disconnect the audio unit electrical connectors.
4. Remove the defroster duct.
5. Remove the 5 plenum chamber screws.
6. Remove the plenum chamber.
7. To install, reverse the removal procedure.
