Blower Motor Switch: Service and Repair

BLOWER MOTOR SPEED CONTROL







Removal and Installation

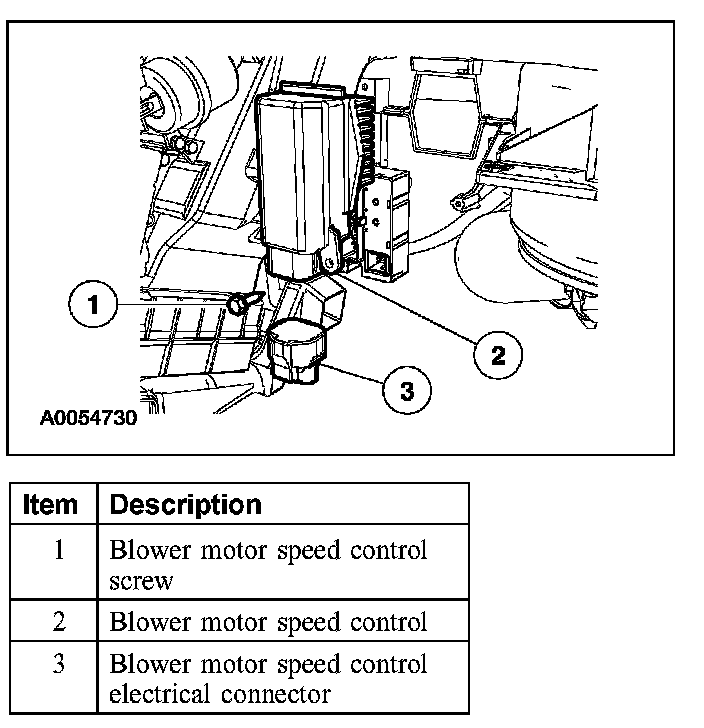

1. Remove the variable assist power steering module screw and position the module aside.
2. Remove the blower motor speed control screw.
3. Remove the blower motor speed control.
4. Remove the blower motor speed control electrical connector.
5. To install, reverse the removal procedure.
